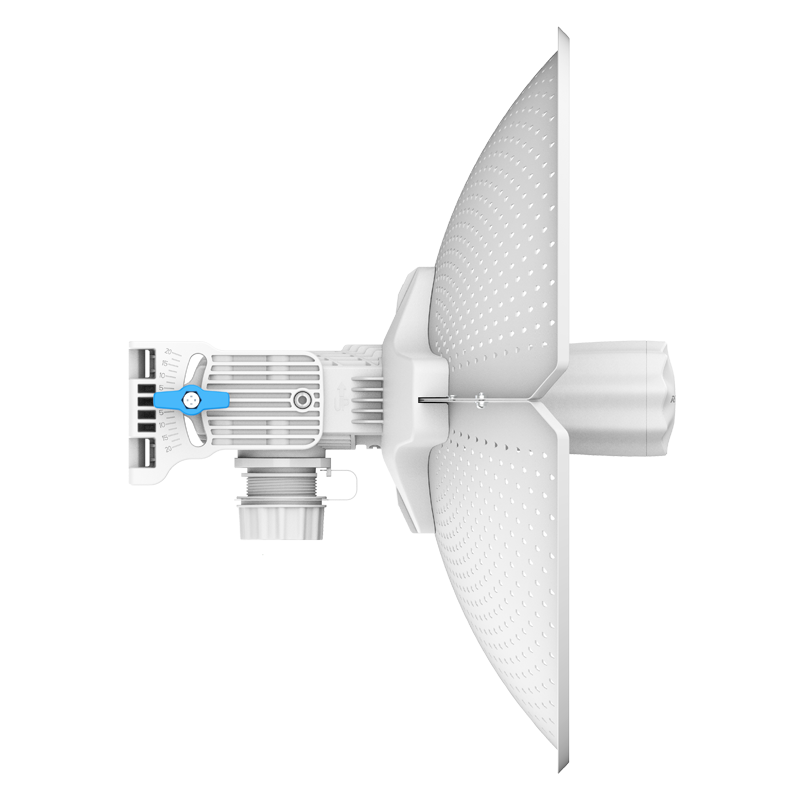

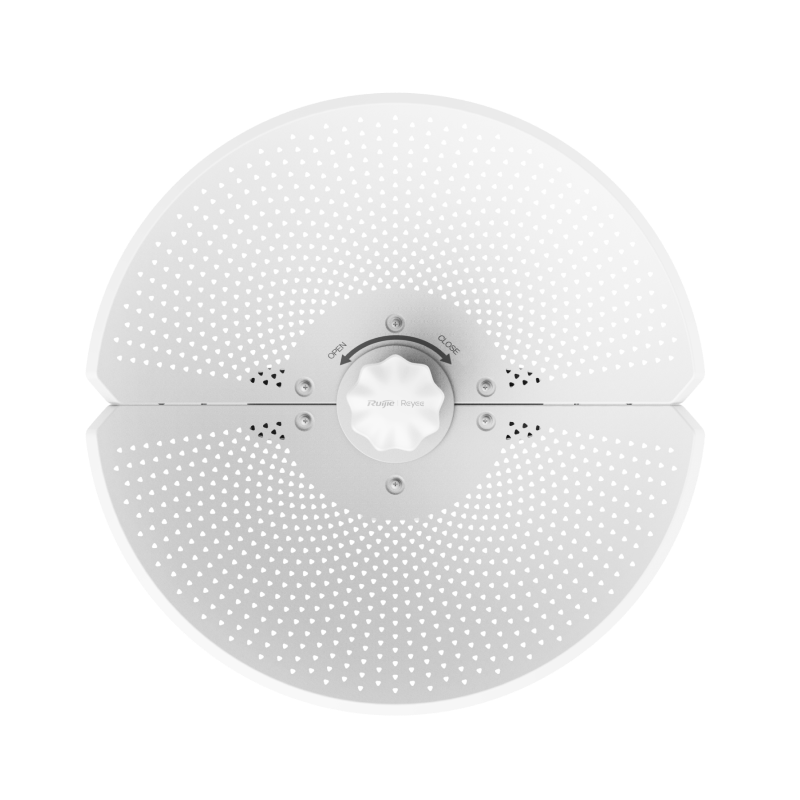

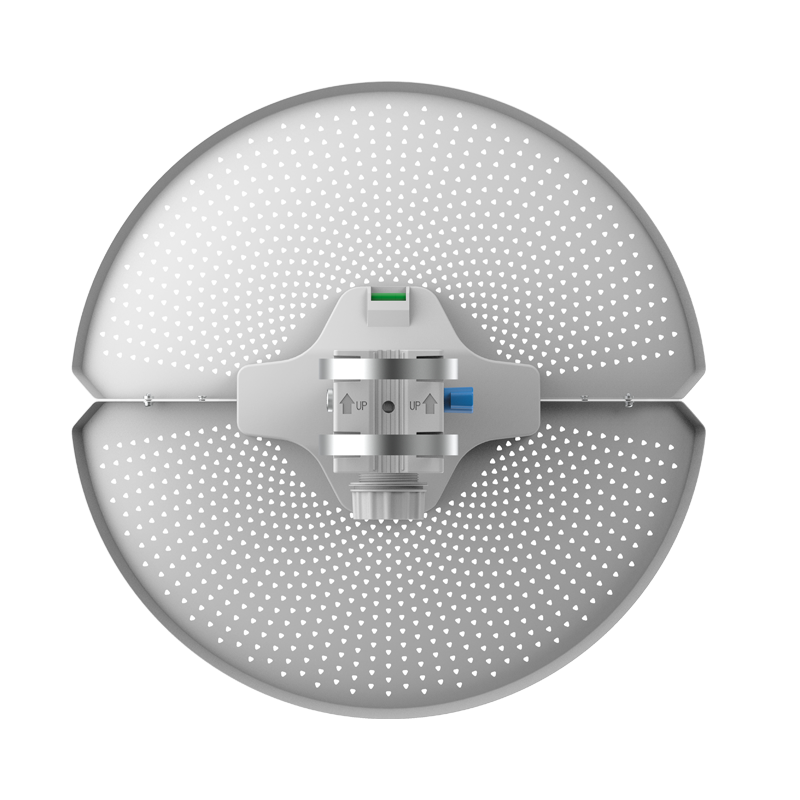

Ruijie CPE of RG-AirMetro Series Wireless Bridges RG-AirMetro460F

The Ruijie RG-AirMetro460F is a high-performance wireless bridge engineered for long-distance point-to-point (PTP) and point-to-multipoint (PTMP) applications. Operating on the 5GHz band with 802.11ac (Wi-Fi 5) technology, it delivers reliable data transmission over distances up to 15 kilometers. This device is ideal for outdoor environments requiring robust and stable wireless connectivity.

Quick Specs

Wireless Bridge Cpe, 5Ghz 867Mbps, Supports 11Ac Protocol, Ip65, Gain Up To 23Dbi, 1*10/100M Port, The Base Station Can Be Paired With Up To 32 Cpes

Key Features

• Extended Range: Supports wireless transmission up to 15KM, ensuring stable connectivity over long distances.

• High Throughput: Delivers speeds up to 867 Mbps using 2x2 MIMO technology, facilitating efficient data transfer.

• Integrated High-Gain Antenna: Features a 23 dBi directional antenna with a narrow 9° beamwidth for focused signal transmission.

• Quick Deployment: One-touch pairing simplifies setup and deployment.

• Robust Design: IP65-rated enclosure ensures protection against dust and water ingress, suitable for outdoor deployments.

• Advanced Protection: Built-in ±6 kV surge and ±24 kV ESD protection.

• Wide Operating Temperature Range: Operates reliably in temperatures ranging from -40°C to +70°C.

• Cloud Management: Integrates with cloud-based platforms for centralized monitoring and control.

Technical Specifications

• Wireless Standards: IEEE 802.11a/n/ac

• Frequency Band: 5 GHz

• Antenna Gain: 23 dBi

• Beamwidth: 9° Horizontal / 9° Vertical

• Ethernet Ports: 1 × 10/100 Mbps

• Power Supply: 24V Passive PoE

• Maximum Power Consumption: ≤12W

• Dimensions: Approximately 386.5 mm × 271 mm

Downloads

• View Datasheet
