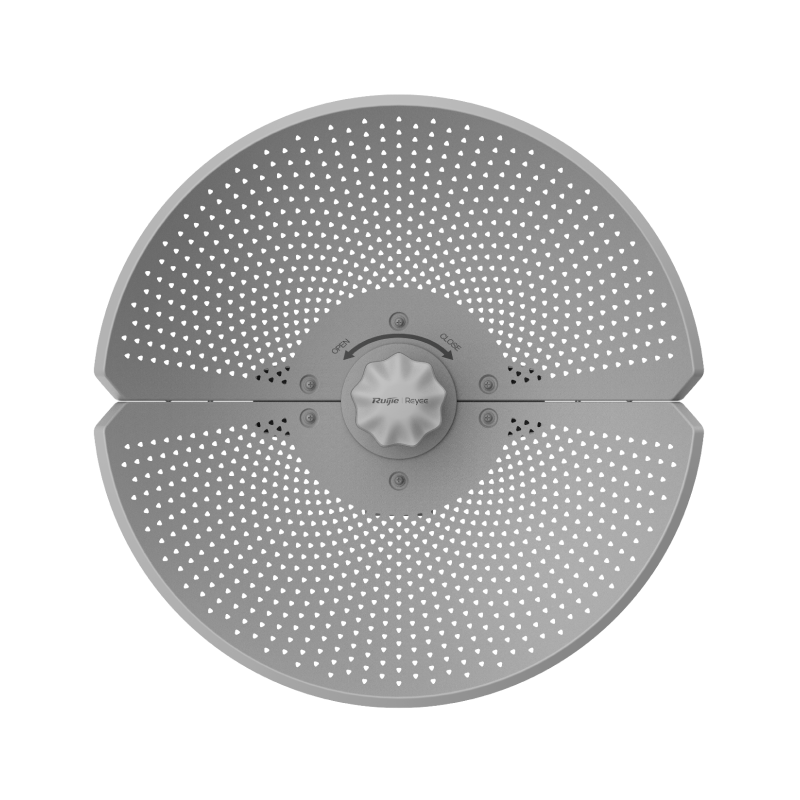

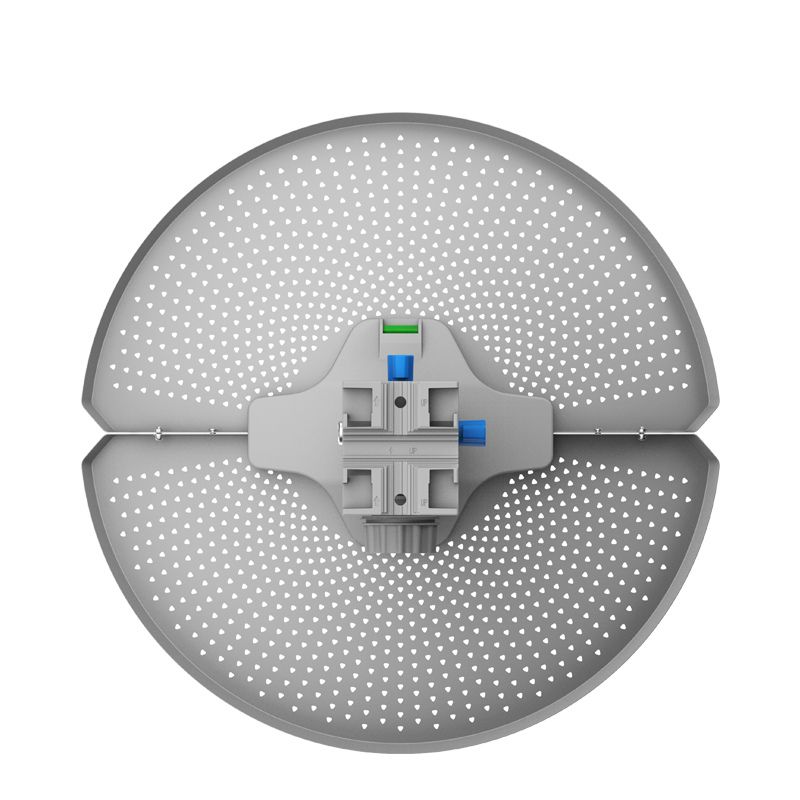

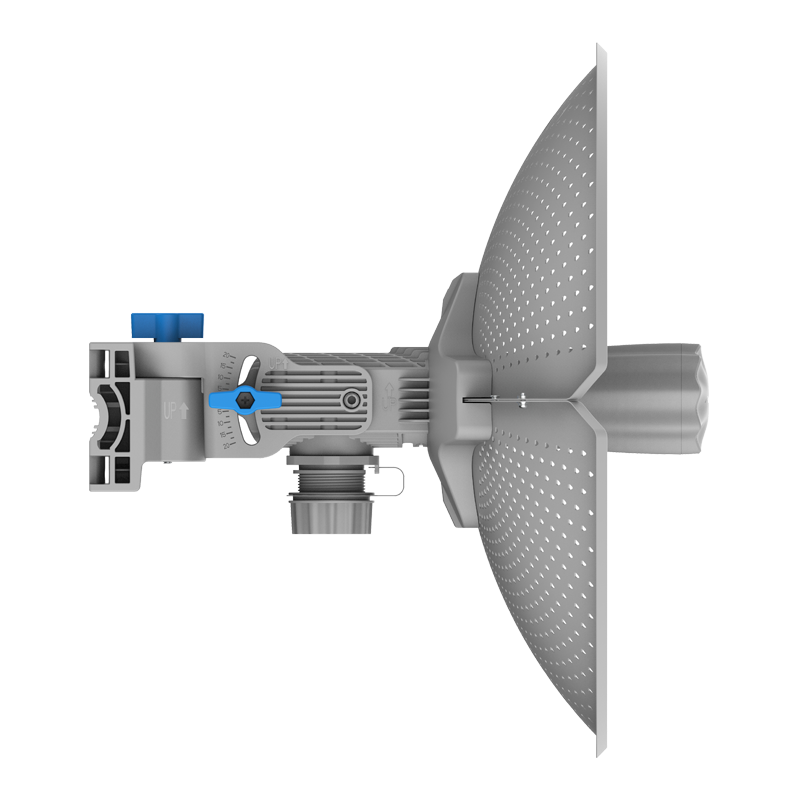

Ruijie CPE of RG-AirMetro Series Wireless Bridges RG-AirMetro460G

The Ruijie RG-AirMetro460G is a high-performance wireless bridge designed for long-range outdoor deployments. Operating on the 5GHz frequency band and built on 802.11ac (Wi-Fi 5) technology, it delivers reliable data transmission over distances of up to 15 kilometers. It is well-suited for point-to-point (PTP) and point-to-multipoint (PTMP) wireless communication scenarios.

Quick Specs

Wireless Bridge Cpe, 5Ghz 867Mbps, Supports 11Ac Protocol, Ip65, Gain Up To 23Dbi, 1*10/100/1000M Port, The Base Station Can Be Paired With Up To 32 Cpes

Key Features

• Long-Distance Connectivity: Supports wireless transmission up to 15KM depending on the environment and line-of-sight conditions.

• High Throughput: Achieves speeds up to 867 Mbps using 2x2 MIMO for efficient data handling.

• Integrated High-Gain Antenna: Features a 23 dBi directional antenna with a narrow 9° beamwidth for focused and stable signal transmission.

• Fast Setup: One-touch pairing simplifies configuration and deployment.

• Weatherproof Construction: IP65-rated enclosure provides protection against dust and water ingress, ensuring outdoor durability.

• Enhanced Protection: Equipped with ±6 kV surge and ±24 kV ESD protection for stable operation in harsh conditions.

• Temperature Resilience: Operates in a wide temperature range from -40°C to +70°C.

• Remote Management: Supports integration with Ruijie’s cloud platform for centralized monitoring and control.

Technical Specifications

• Wireless Standards: IEEE 802.11a/n/ac

• Frequency Band: 5 GHz

• Antenna Gain: 23 dBi

• Beamwidth: 9° (Horizontal/Vertical)

• Ethernet Ports: 1 × 10/100/1000 Mbps

• Power Supply: 24V Passive PoE

• Maximum Power Consumption: ≤12W

• Dimensions: 386.5 mm × 271 mm

Downloads

• View Datasheet
