Ruijie Reyee 10-Port GE L2 Cloud Managed Industrial Switch 7x PoE+ 1x PoE++ 300W 2x SFP RG-NIS2100-8GT2SFP-HP
Vendor: Ruijie Reyee
Ruijie Reyee 10-Port GE L2 Cloud Managed Industrial Switch 7x PoE+ 1x PoE++ 300W 2x SFP RG-NIS2100-8GT2SFP-HP

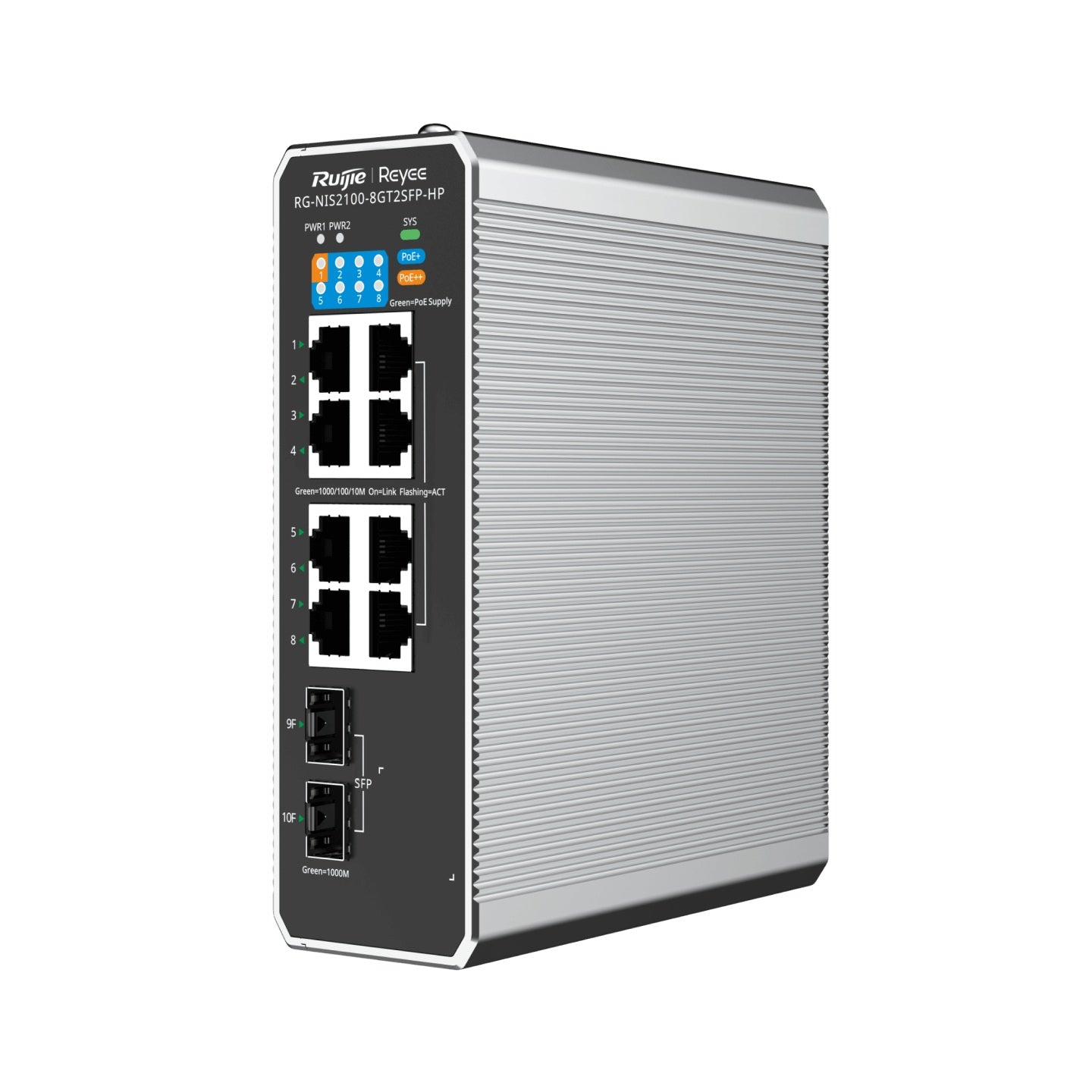

Ruijie Reyee RG-NIS2100-8GT2SFP-HP 10-Port Cloud Managed Industrial PoE Switch
The Ruijie Reyee RG-NIS2100-8GT2SFP-HP is a 10-port Layer 2 cloud managed industrial switch built for demanding environments where standard switches cannot operate reliably. With a wide operating temperature range of -40°C to +75°C, 6kV surge protection, EMC Level 4 electromagnetic interference resistance, and a 90W PoE++ port for high-power devices, it keeps networks running in harsh industrial, outdoor, and factory settings. DIN rail mounting and DIP switch ERPS configuration simplify installation and failover setup. Managed via Ruijie Cloud. Backed by a 5-year Ruijie Reyee manufacturer warranty.
Highlight Features
- 8x GE RJ45 ports: 1x PoE++ (802.3bt, up to 90W) + 7x PoE+ (802.3at/af)
- 2x 1GE SFP uplink ports
- PoE budget: 228W default, up to 300W (web-adjustable)
- Wide operating temperature: -40°C to +75°C
- 6kV surge protection against voltage spikes
- EMC Level 4 protection against electromagnetic interference
- IP40 protection against solid particles

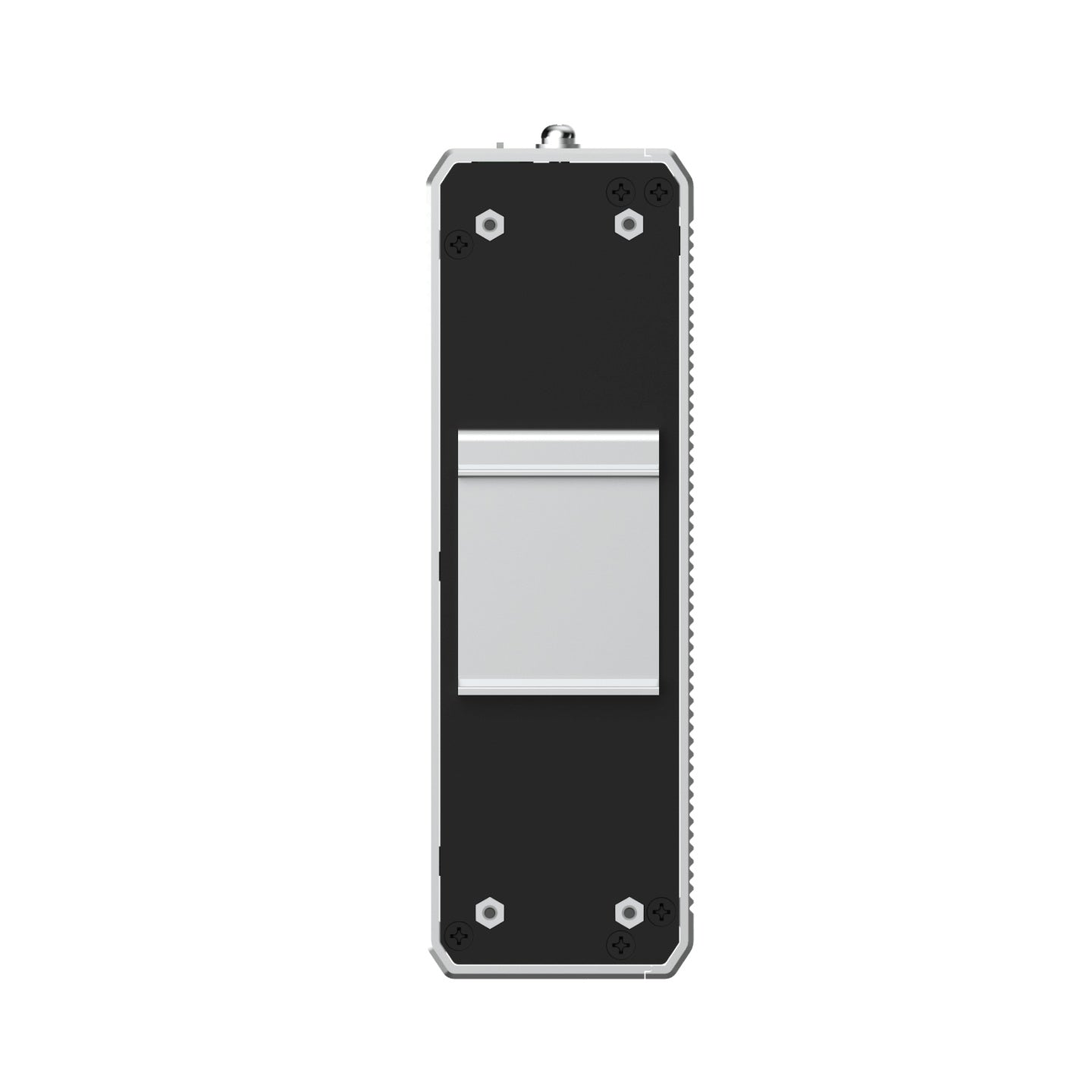

- DIN rail mounting for simplified installation in enclosures
- DIP switch for instant ERPS configuration and rapid service failover
- Self-organising network (SON) for simplified setup
- Ruijie Cloud remote management
- Warranty: 5 years
Hardware Specifications
| Ports | |
|---|---|
| Total RJ45 Ports | 8x 10/100/1000BASE-T |
| PoE++ Port (802.3bt, up to 90W) | 1x (Port 1) |
| PoE+ Ports (802.3at/af) | 7x (Ports 2-8) |
| SFP Uplink Ports | 2x 1GE |
| PoE | |
| PoE Budget | 228W default / 300W max (web-adjustable) |
| PoE Power Pins (Port 1) | 1-2(+), 3-6(-), 4-5(+), 7-8(-) |
| PoE Power Pins (Ports 2-8) | 1-2(+), 3-6(-) |
| Switching | |
| Switching Capacity | 20 Gbps |
| Forwarding Rate | 14.8 Mpps |
| Environment | |
| Operating Temperature | -40°C to +75°C |
| Surge Protection | 6kV |
| EMC | Level 4 |
| IP Rating | IP40 |
| Mounting | DIN Rail |
| Software | |
| ERPS | Yes (DIP switch) |
| SON | Yes |
| Cloud Management | Yes (Ruijie Cloud) |
| Layer | Layer 2 |
Frequently Asked Questions
What makes this switch suitable for industrial environments?
The RG-NIS2100-8GT2SFP-HP is purpose-built for harsh conditions with a -40°C to +75°C operating range, full aluminium casing for passive heat dissipation, 6kV surge protection, and EMC Level 4 electromagnetic interference resistance. These features make it suitable for factory floors, outdoor enclosures, transportation, and other demanding deployments where standard switches would fail.
What is the difference between the 6-port and 10-port industrial switch models?
The RG-NIS2100-8GT2SFP-HP has 8x GE RJ45 ports (1x PoE++, 7x PoE+) and a 300W max PoE budget, compared to the 4-port RG-NIS2100-4GT2SFP-HP which has 4x GE ports (1x PoE++, 3x PoE+) and a 180W max budget. Both share the same industrial-grade environmental ratings and DIN rail form factor.

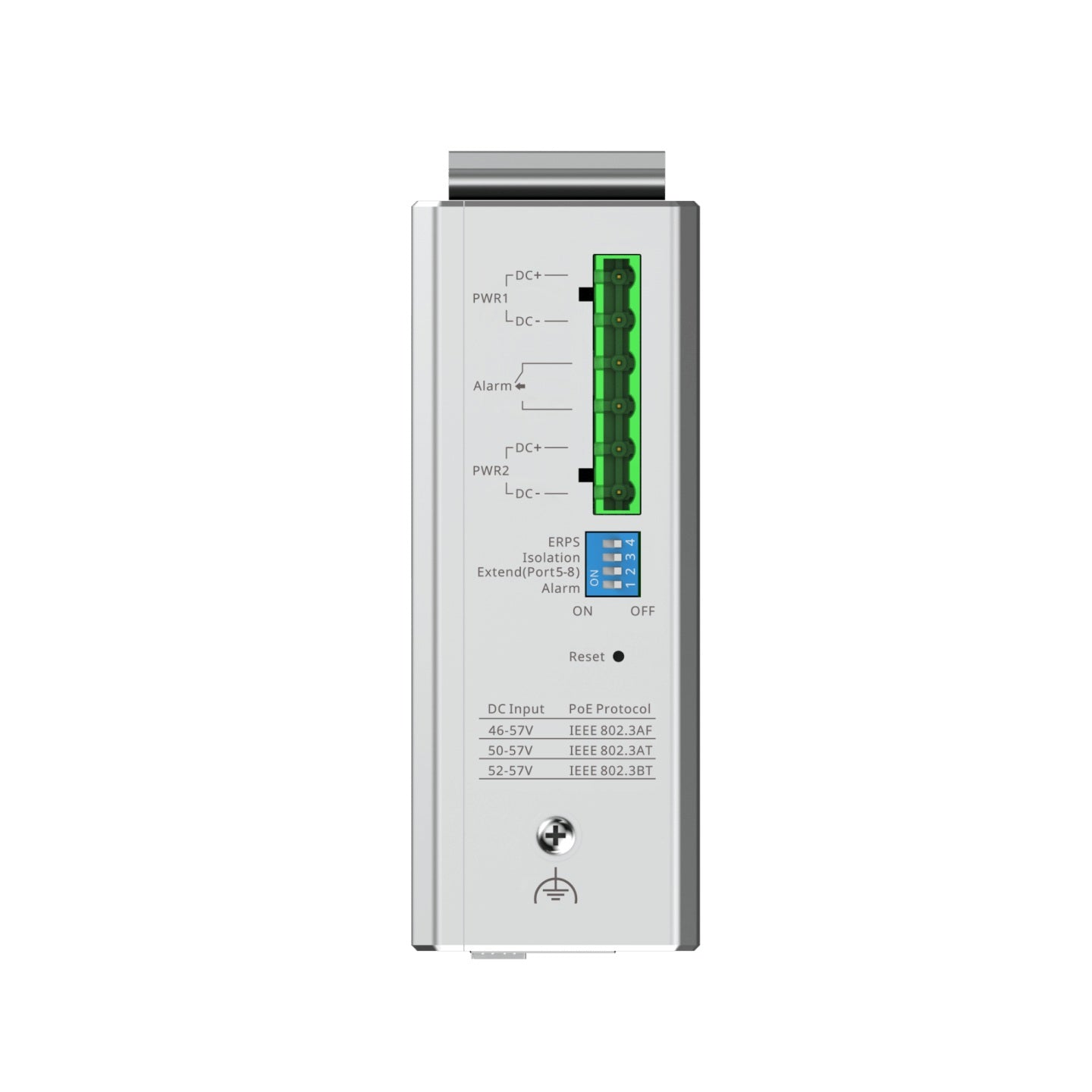

What is ERPS and how does the DIP switch work?
ERPS (Ethernet Ring Protection Switching) provides rapid failover in ring network topologies, restoring connectivity in under 50ms when a link fails. The DIP switch on the RG-NIS2100-8GT2SFP-HP allows instant ERPS configuration without needing to access the web interface, simplifying deployment in the field.
Can I power a PTZ camera or high-power device from this switch?
Yes. Port 1 is a PoE++ port (IEEE 802.3bt) capable of delivering up to 90W, making it suitable for PTZ cameras, high-power wireless APs, and other demanding devices. Ports 2-8 deliver up to 30W each (PoE+).
Can I manage this switch remotely?
Yes. The switch is managed via Ruijie Cloud, providing remote monitoring, VLAN configuration, PoE management, and firmware updates from anywhere. SON (Self-Organising Network) enables zero-touch provisioning for fast deployment.
What warranty does this switch come with?
The RG-NIS2100-8GT2SFP-HP is backed by a 5-year Ruijie Reyee manufacturer warranty.
