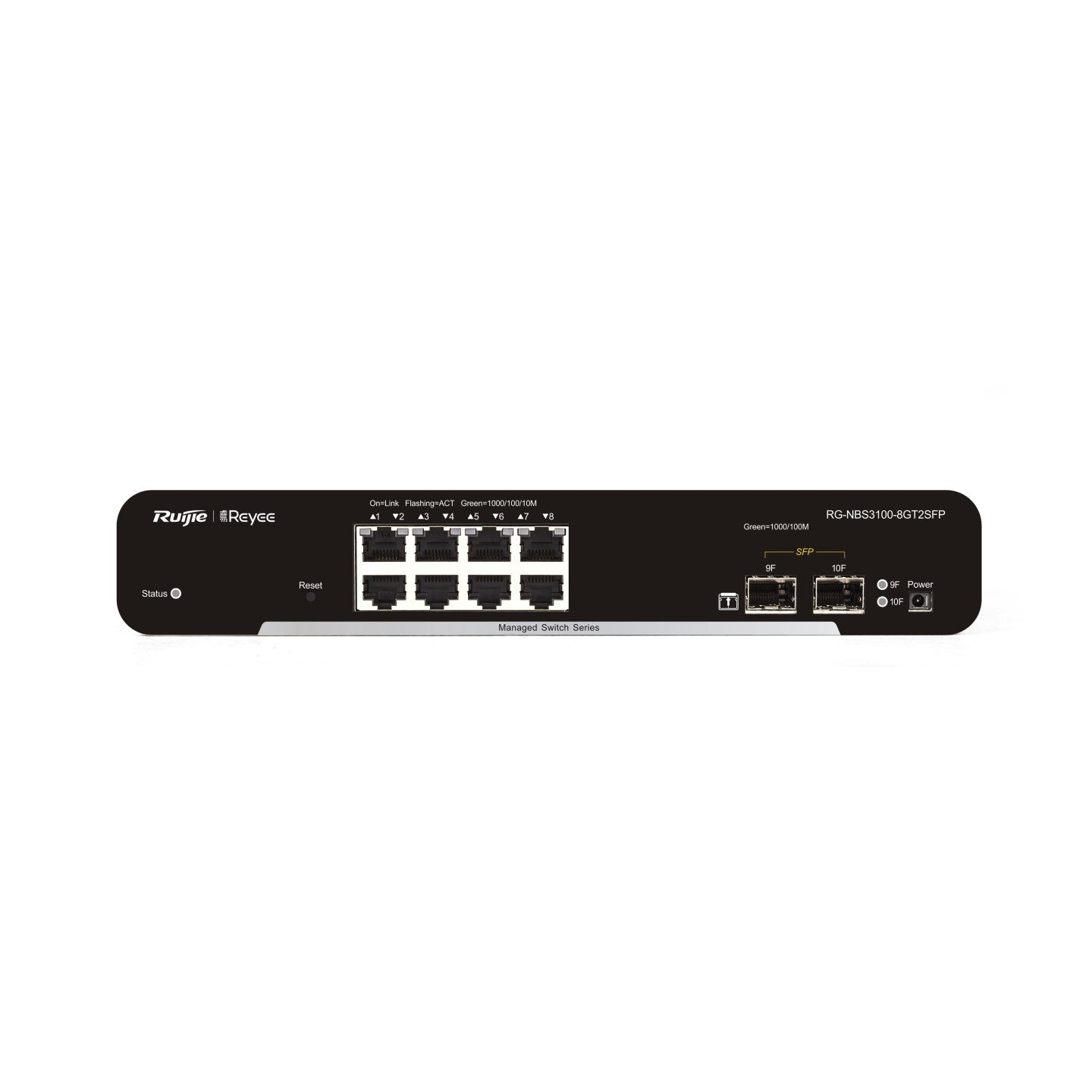

Ruijie Reyee 10-Port Gigabit Layer 2 Cloud Managed Non-PoE Switch RG-NBS3100-8GT2SFP

The Ruijie Reyee RG-NBS3100-8GT2SFP is a 10-port Gigabit Layer 2 cloud-managed non-PoE switch designed for small to medium-sized businesses, offering enterprise-grade performance and advanced features. It includes 8 Gigabit Ethernet ports and 2 SFP uplink ports, supporting a switching capacity of 20 Gbps and a forwarding rate of 14.88 Mpps. The switch is fanless for silent operation and supports cloud-based management via the Ruijie Cloud platform, enabling remote configuration and monitoring. Advanced features such as VLAN support, link aggregation, IGMP snooping, and multiple security policies make it suitable for various networking scenarios.

Quick Specs

8-Port Gigabit L2 Managed Switch, 8 Gigabit Rj45 Ports,2 Sfp Slots, Desktop Steel Case

Key Features

• 8 × 10/100/1000Base-T Gigabit Ethernet ports

• 2 × 1000Base-X SFP uplink ports

• Switching capacity: 20 Gbps; Forwarding rate: 14.88 Mpps

• MAC address table: 8000 entries

• Supports up to 4094 VLANs

• Fanless design for silent operation

• Port surge protection up to 6 kV

• Dimensions: 260 mm × 120 mm × 43.6 mm

• Low power consumption: ≤ 8W

• High reliability with MTBF > 200,000 hours

• Cloud-based management through Ruijie Cloud app

• Advanced features: Link aggregation, IGMP snooping, VLAN support, multiple security policies

Downloads

• View Datasheet
