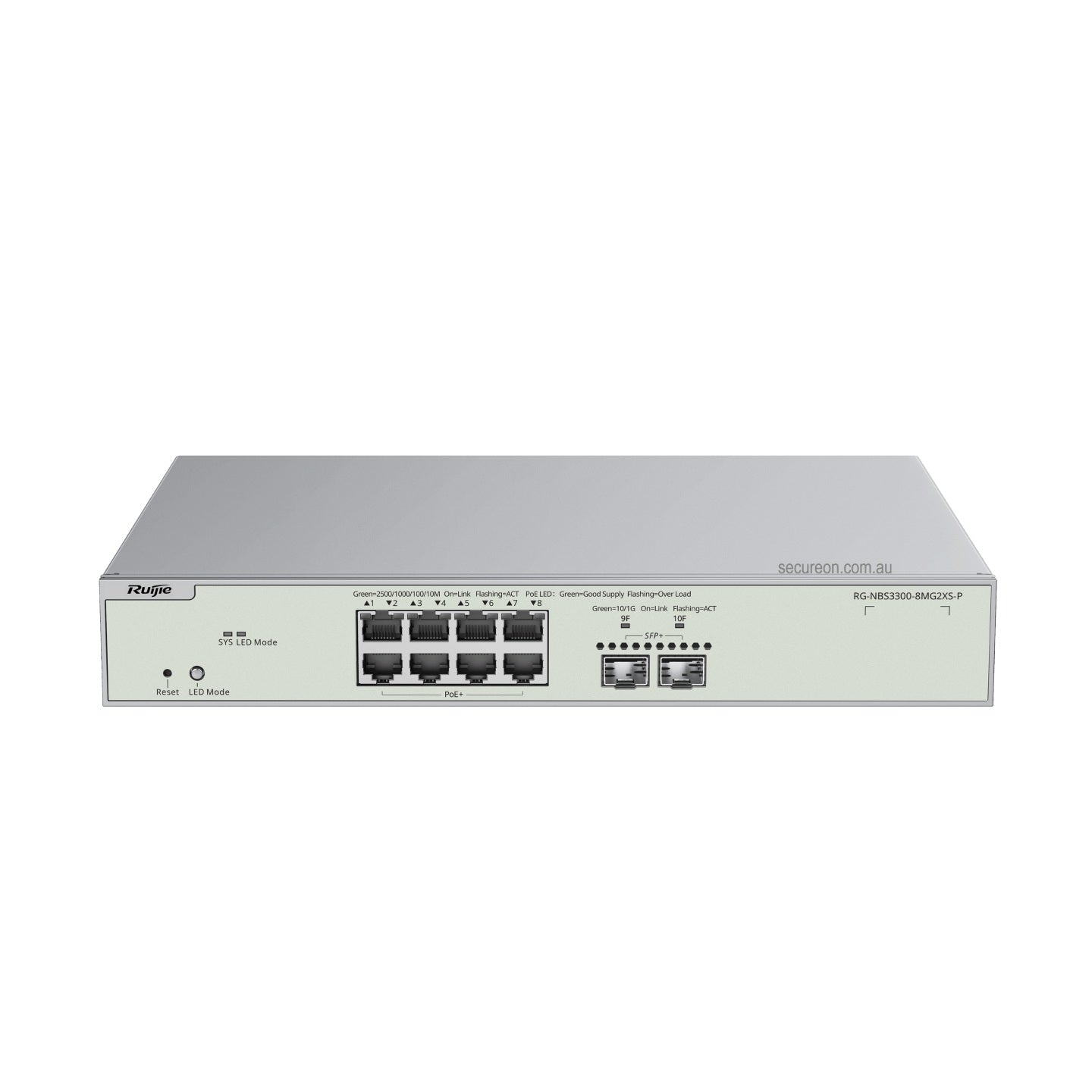

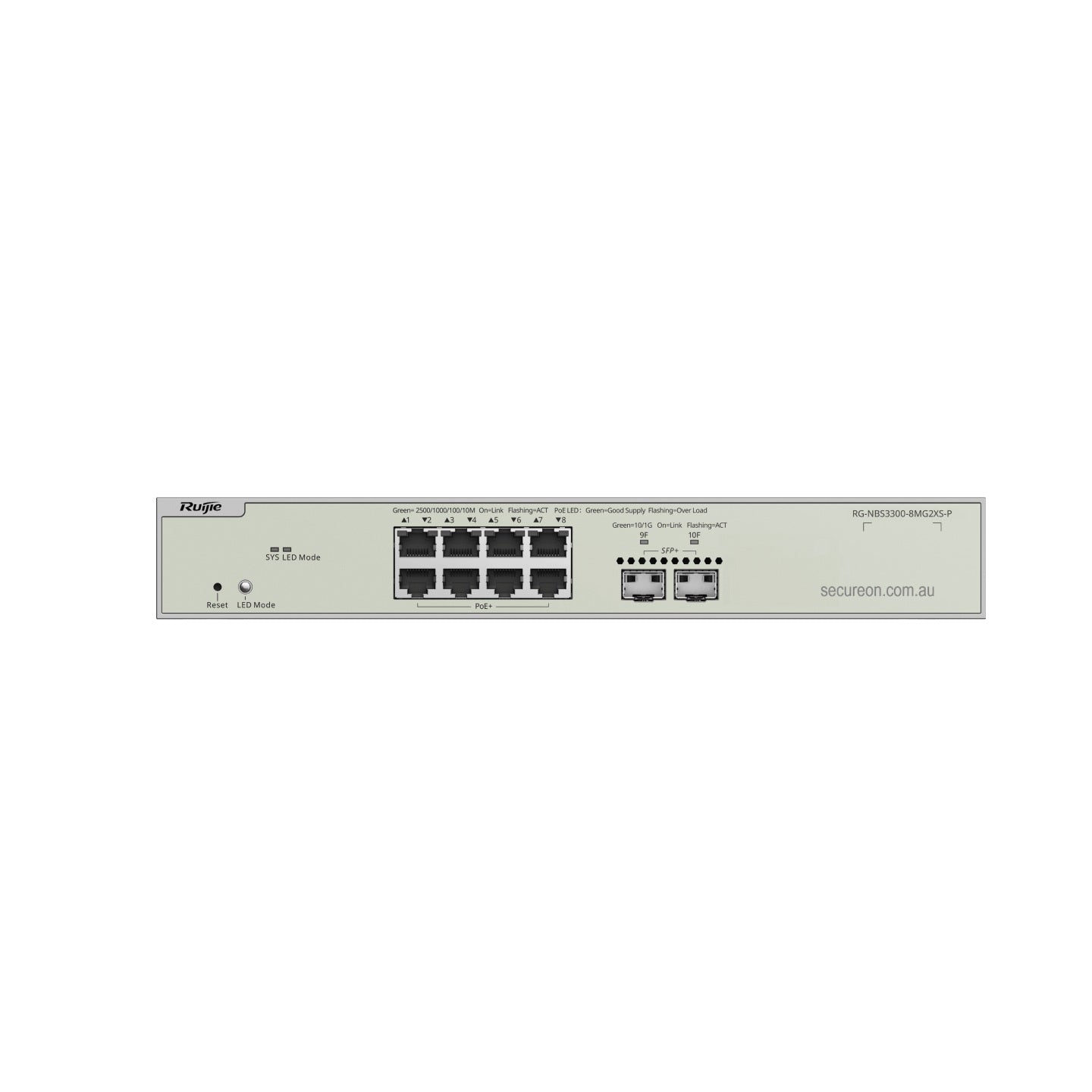

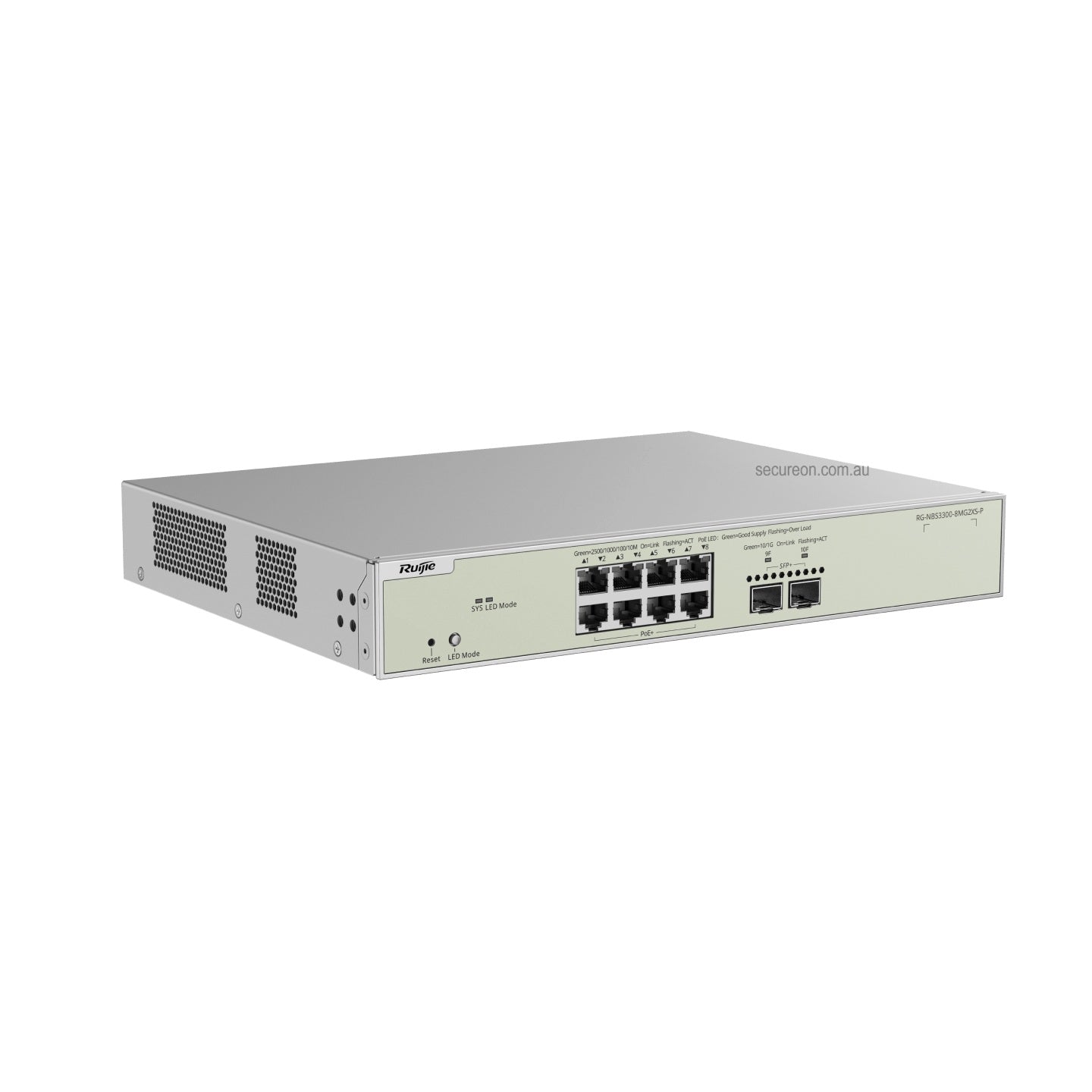

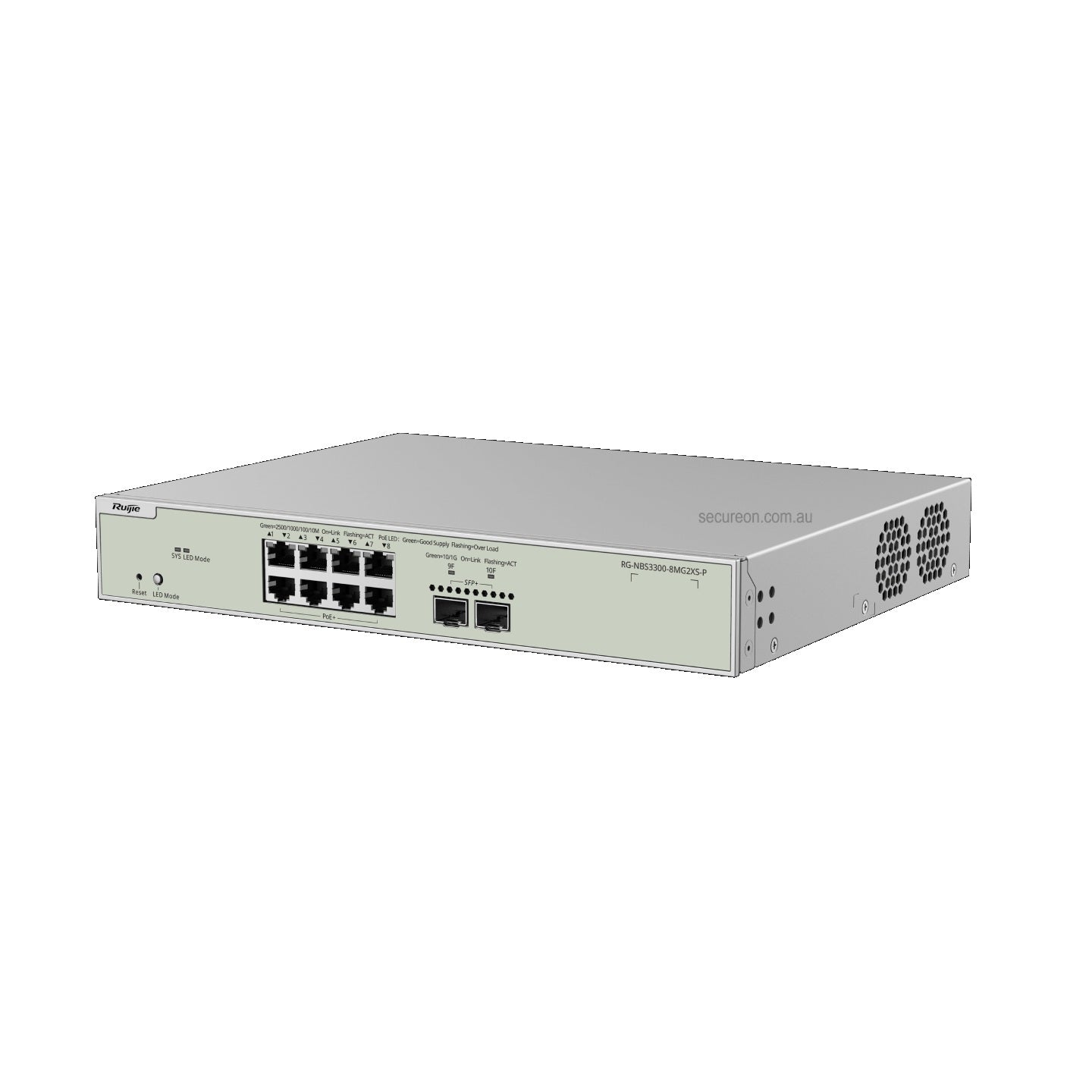

Ruijie Reyee 10-Port Multi-Gig Layer 2+ Managed Switch 8x 2.5G PoE+ 240W 2x 10G SFP+ RG-NBS3300-8MG2XS-P

Ruijie Reyee RG-NBS3300-8MG2XS-P 10-Port Multi-Gigabit Layer 2+ Managed PoE Switch

The Ruijie Reyee RG-NBS3300-8MG2XS-P is a 10-port multi-gigabit Layer 2+ managed PoE switch built to unlock the full potential of Wi-Fi 6 and Wi-Fi 7 access points. With 8x 2.5G PoE+ ports delivering a 240W budget and 2x 10GE SFP+ uplinks, it eliminates the gigabit bottleneck that limits modern wireless deployments. Enterprise-grade features including CPP CPU protection, link aggregation, IGMP snooping, VLAN, and 6kV surge protection ensure high performance and network stability. Lifetime cloud management via Ruijie Cloud. Backed by a 5-year Ruijie Reyee manufacturer warranty.

Highlight Features

• 8x 2.5G PoE+ ports (802.3at/af) + 2x 10GE SFP+ uplinks
• 240W total PoE budget
• 80 Gbps switching capacity, 59.52 Mpps forwarding rate
• CPP (Control Plane Policing) protects CPU from attacks
• 6kV surge protection on service ports and power connector
• Link aggregation, IGMP snooping, and VLAN support
• Multiple security policies: port isolation, broadcast storm control
• Jumbo frame support up to 9216 bytes
• PoE watchdog for automatic device recovery
• Zero-touch provisioning with SON
• Lifetime cloud management via Ruijie Cloud
• MTBF: 400,000 hours
• Warranty: 5 years

Hardware Specifications

Frequently Asked Questions

Why do I need 2.5G ports instead of standard Gigabit?

Wi-Fi 6 and Wi-Fi 7 access points can deliver real-world throughput exceeding 1Gbps per radio. A standard Gigabit switch port becomes the bottleneck, limiting the wireless performance your APs can actually deliver. The 2.5G ports on the RG-NBS3300-8MG2XS-P remove that constraint, allowing each AP to operate at its full potential.

What is CPP and why does it matter?

CPP (Control Plane Policing) is a security feature that rate-limits traffic destined for the switch CPU, protecting it from denial-of-service attacks and traffic floods. This ensures the switch continues to operate stably even under attack conditions, which is critical in always-on network environments.

How many Wi-Fi 7 APs can I connect?

The switch has 8x 2.5G PoE+ ports with a 240W total budget. Most Wi-Fi 7 APs draw 15-25W, so you can typically power all 8 ports simultaneously within the budget. Each AP also gets a full 2.5G uplink, ensuring no bandwidth bottleneck.

Can I manage this switch remotely?

Yes. The switch supports lifetime free cloud management via Ruijie Cloud, allowing you to monitor port statistics, configure VLANs, manage PoE, and perform firmware updates from anywhere. The Ruijie Reyee mobile app is also supported.

What SFP+ modules are compatible with the uplink ports?

The 2x 10GE SFP+ uplink ports support standard 10G SFP+ transceivers. Ruijie-compatible options include the XG-SFP-SR-MM850 (multimode, 300m) and XG-SFP-LR-SM1310 (single-mode, 10KM).

What warranty does this switch come with?

The RG-NBS3300-8MG2XS-P is backed by a 5-year Ruijie Reyee manufacturer warranty.

Downloads

• RG-NBS3300 Series Datasheet
• RG-NBS3300-8MG2XS-P Installation Guide
