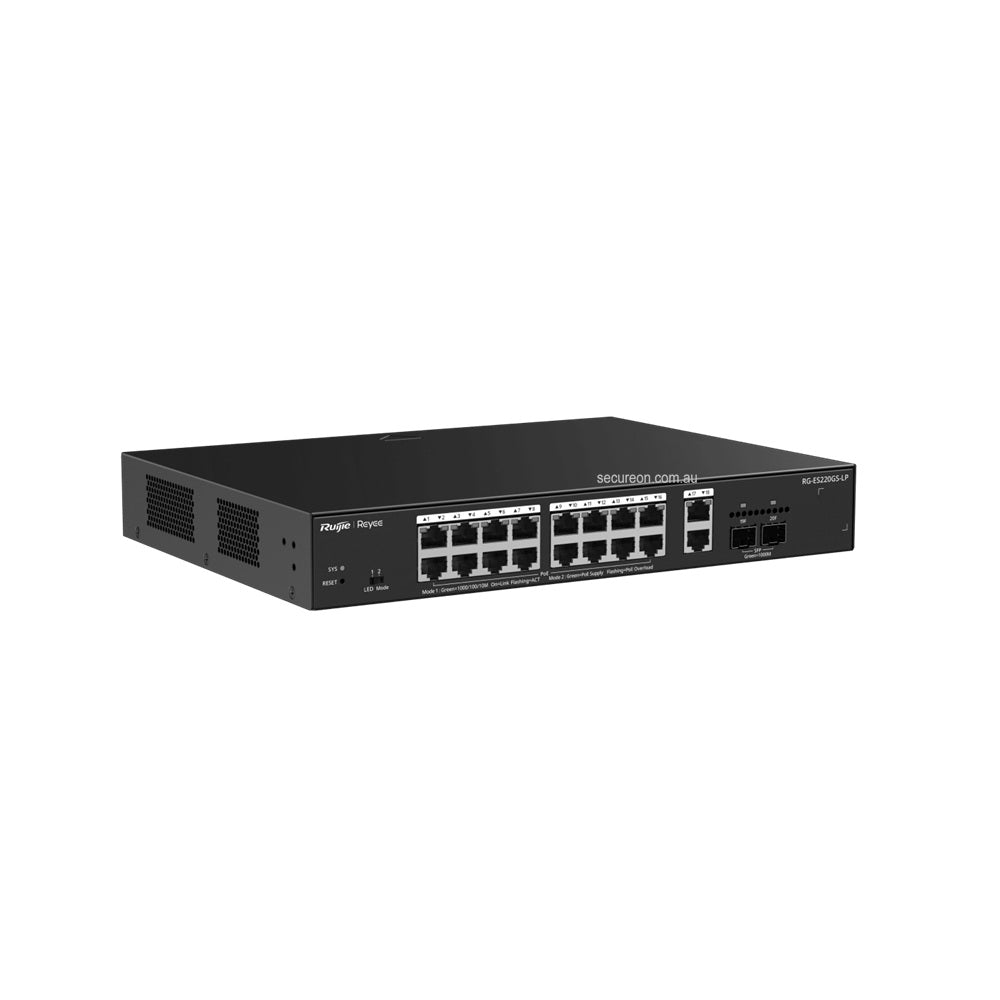

Ruijie Reyee 20-Port Gigabit Smart Cloud Managed PoE Switch RG-ES220GS-LP

Ruijie Reyee RG-ES220GS-LP - 20-Port Gigabit Smart Cloud Managed PoE Switch

The RG-ES220GS-LP is a 20-port Gigabit smart cloud-managed PoE switch with a 130W total PoE power budget. Designed for SMB networks, CCTV deployments, and environments where quiet operation matters, it delivers cloud-based management via the Ruijie Cloud platform with zero-touch provisioning and remote configuration.

Key features

• 130W PoE budget across 16 PoE/PoE+ ports for powering IP cameras, access points, and VoIP phones
• Fanless design for silent, energy-efficient operation
• 250-metre extended transmission mode for long-distance camera runs (port speed limited to 10 Mbps in extend mode)
• Automatic loop prevention keeps the network connected if a loop occurs
• IP camera and NVR recognition for intelligent PoE management in CCTV networks
• Individual port reboot to remotely restart a connected device without touching the switch
• IPC offline alarm alerts you when a connected camera goes offline
• Mobile VLAN configuration via the Ruijie Cloud app
• Intelligent PoE adaptive for automatic power negotiation
• Port isolation for network security

Key specifications

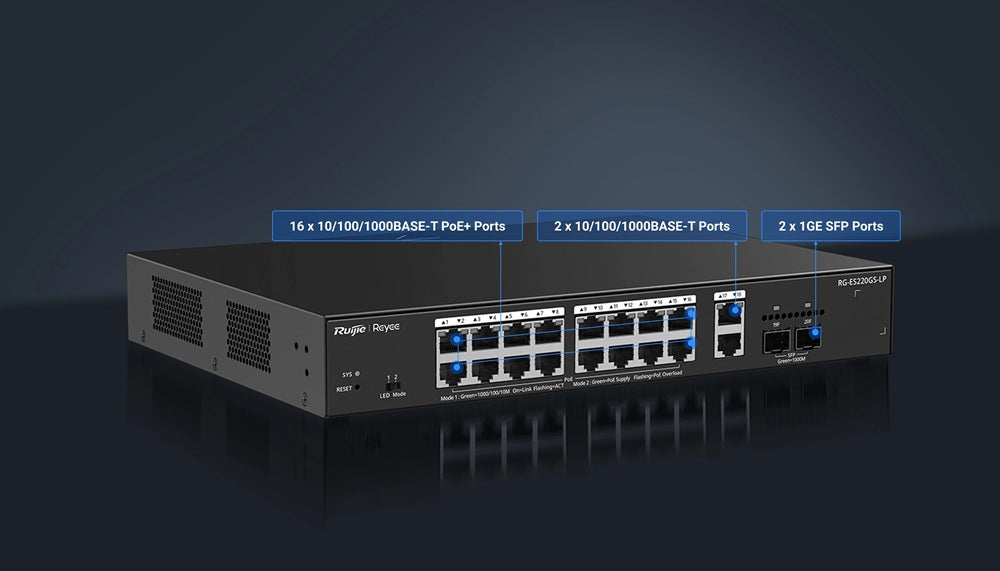

• 18 × 10/100/1000BASE-T RJ45 ports (16 PoE/PoE+)
• 2 × 1GE SFP uplink ports
• PoE budget: 130W | PoE standard: IEEE 802.3af/at
• Switching capacity: 40 Gbps | Forwarding rate: 29.76 Mpps
• Layer 2 managed switch
• Operating temperature: 0°C to 40°C
• 3-year warranty
