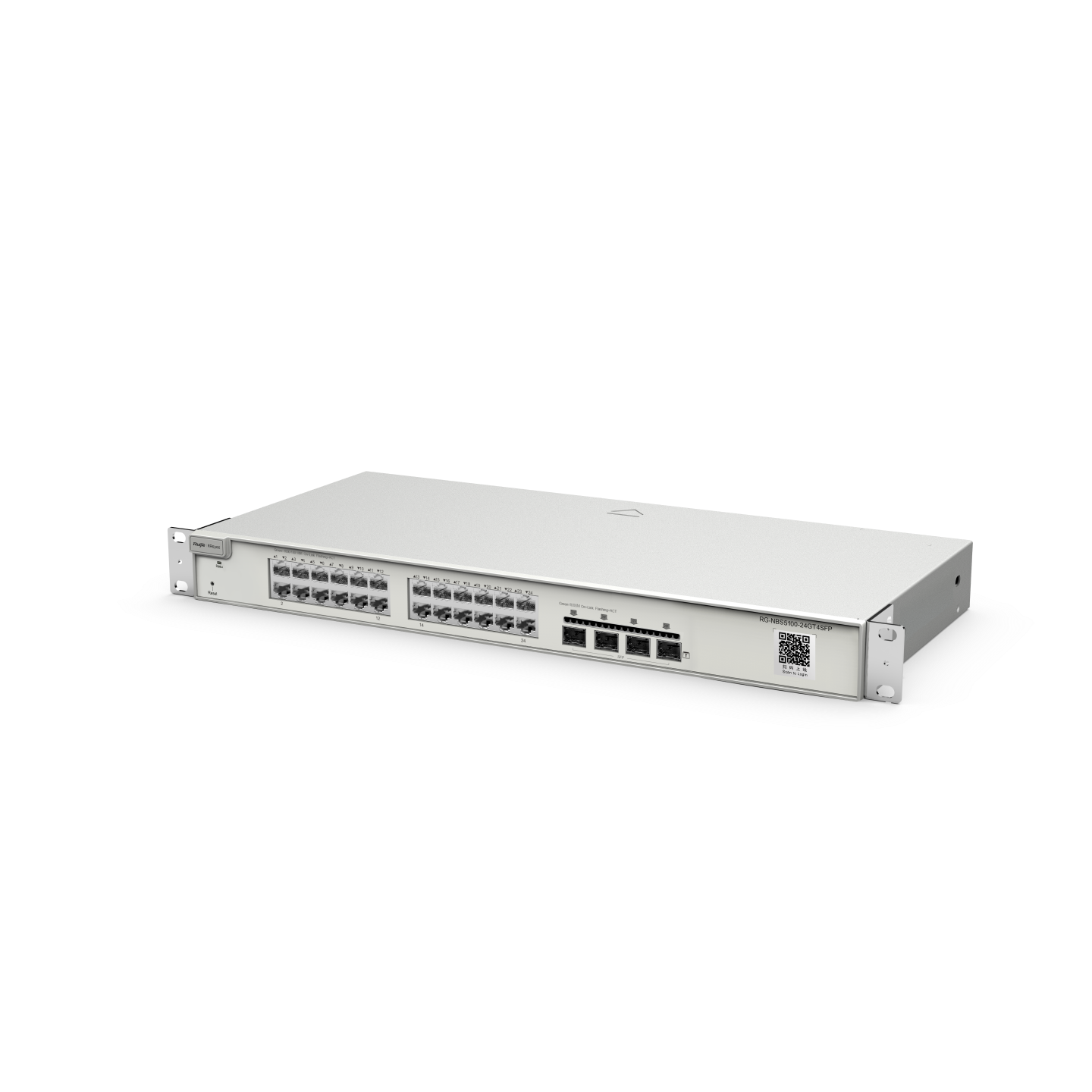

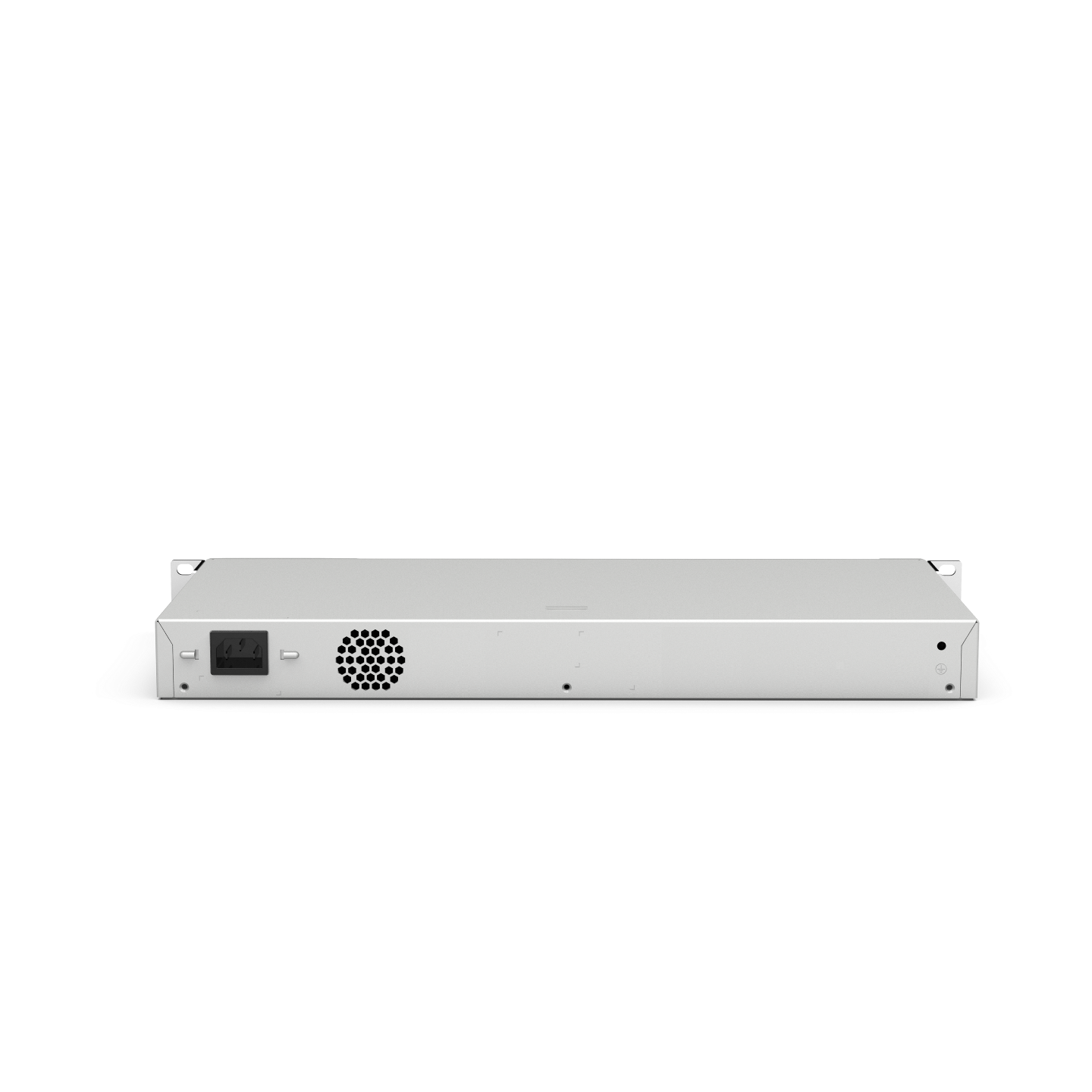

Ruijie Reyee 28-Port Gigabit Layer 3 Non-PoE Switch RG-NBS5100-24GT4SFP

The Ruijie Reyee RG-NBS5100-24GT4SFP is a 28-port Gigabit Layer 3 managed switch designed for enterprise networks, data centers, and high-performance access layers. It offers robust routing capabilities, advanced security features, and seamless cloud-based management.

Quick Specs

24-Port Gigabit L3 Managed Switch, 24 Gigabit Rj45 Ports, 4 Sfp Ports,19-Inch Rack-Mountable Steel Case, Static Routing

Key Features

• Port Configuration: 24 × 10/100/1000 Mbps RJ45 ports and 4 × 1G SFP uplink ports

• Layer 3 Capabilities: Supports static routing, RIP, OSPF, and PIM for efficient network traffic management

• Switching Capacity: 128 Gbps

• Forwarding Rate: 95.24 Mpps

• MAC Address Table: Supports up to 16,000 entries

• VLAN Support: Up to 4,094 VLANs

• Surge Protection: 6 kV on all ports

• Power Consumption: ≤28W

• Cooling: Built-in fan for efficient temperature control

• Form Factor: 440 mm × 207.5 mm × 43.6 mm

• Warranty: 5 years

• Security: Supports IP/MAC-based ACLs, DHCP snooping, IP source guard, and anti-ARP spoofing

• Management: Offers web-based GUI, SNMP v1/v2c/v3, and cloud management via Ruijie Cloud and mobile app

• Network Optimization: Includes link aggregation, IGMP snooping, loop prevention, and jumbo frame support (up to 9,216 bytes)

• Self-Organizing Network (SON): Enables zero-touch provisioning and automatic topology recognition

Downloads

• View Datasheet
