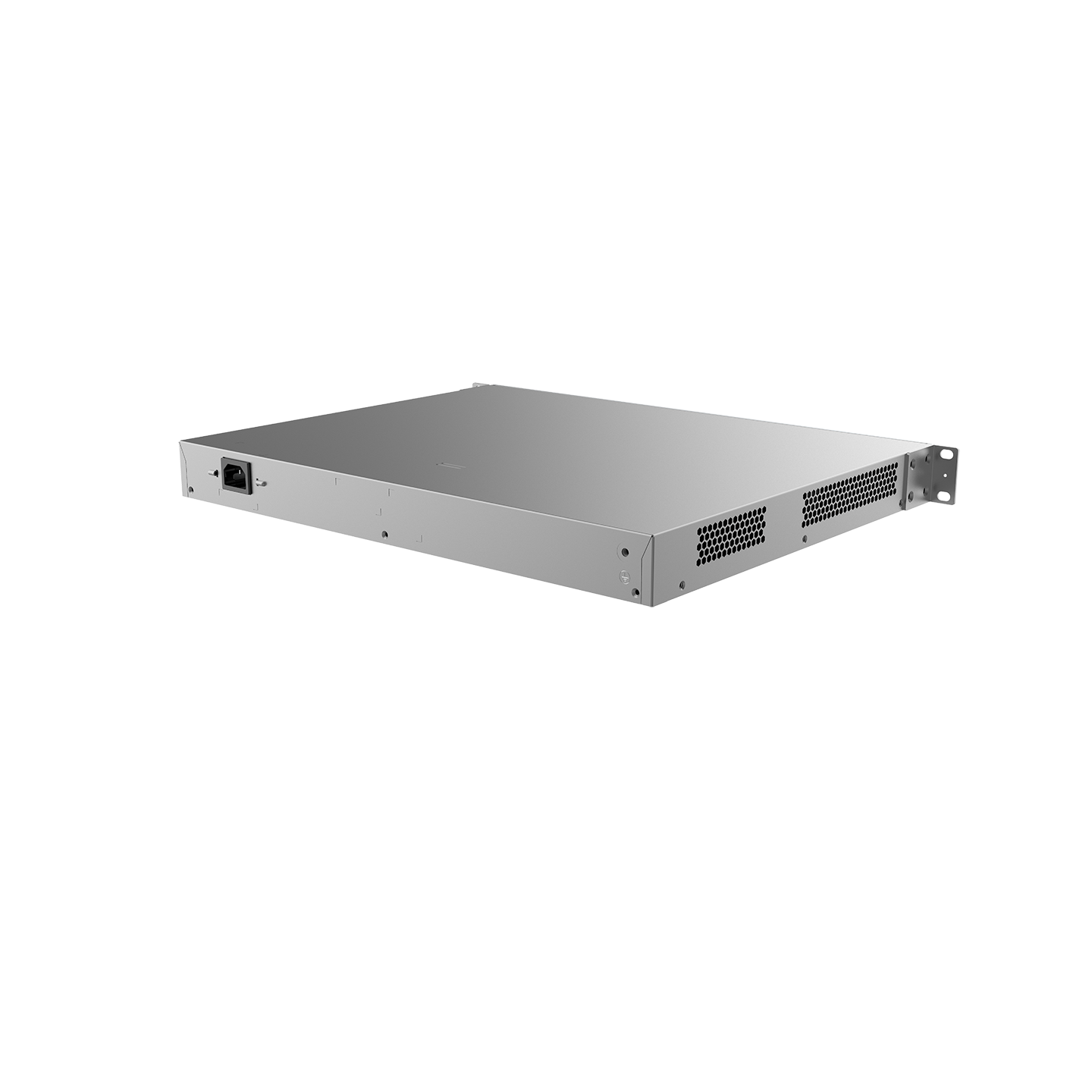

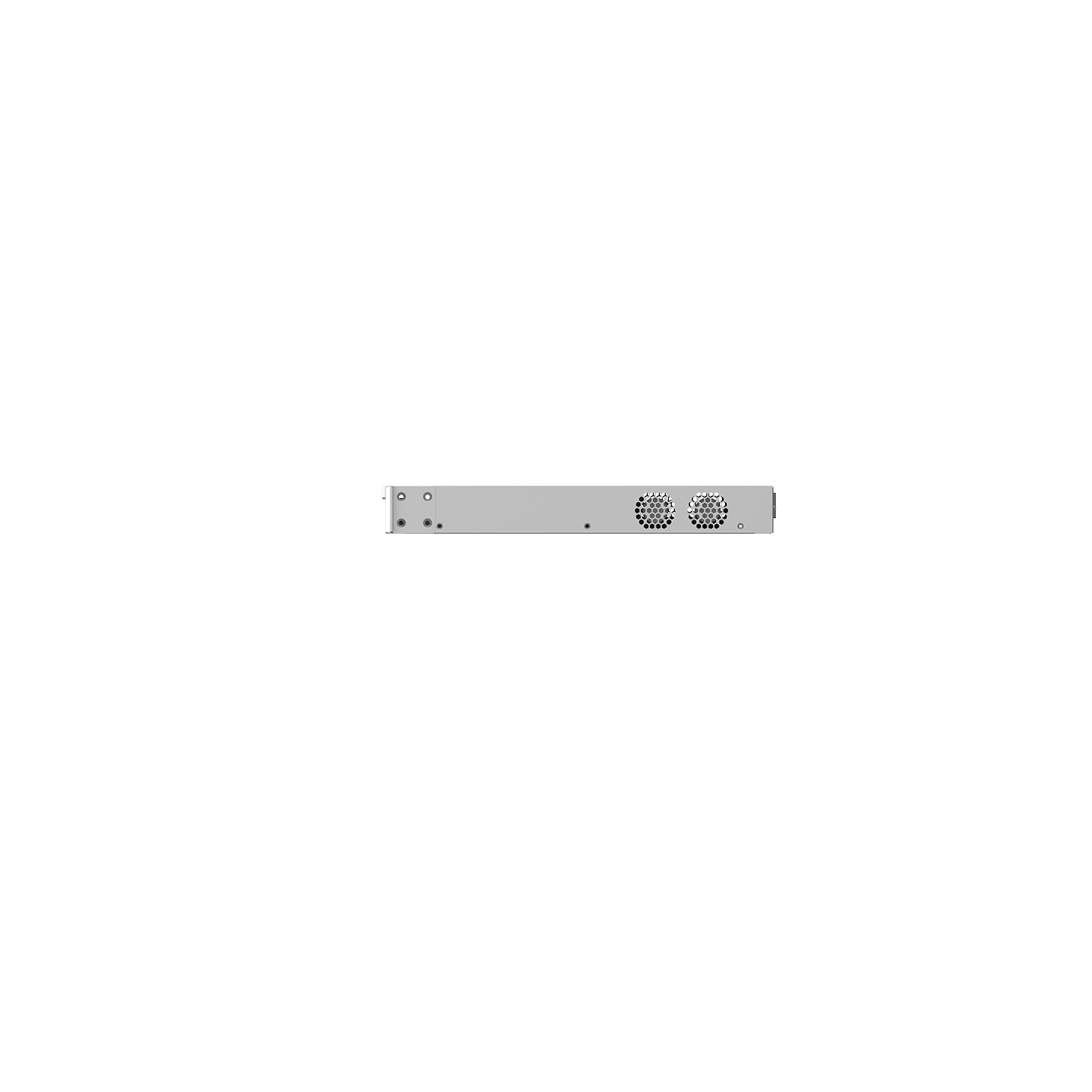

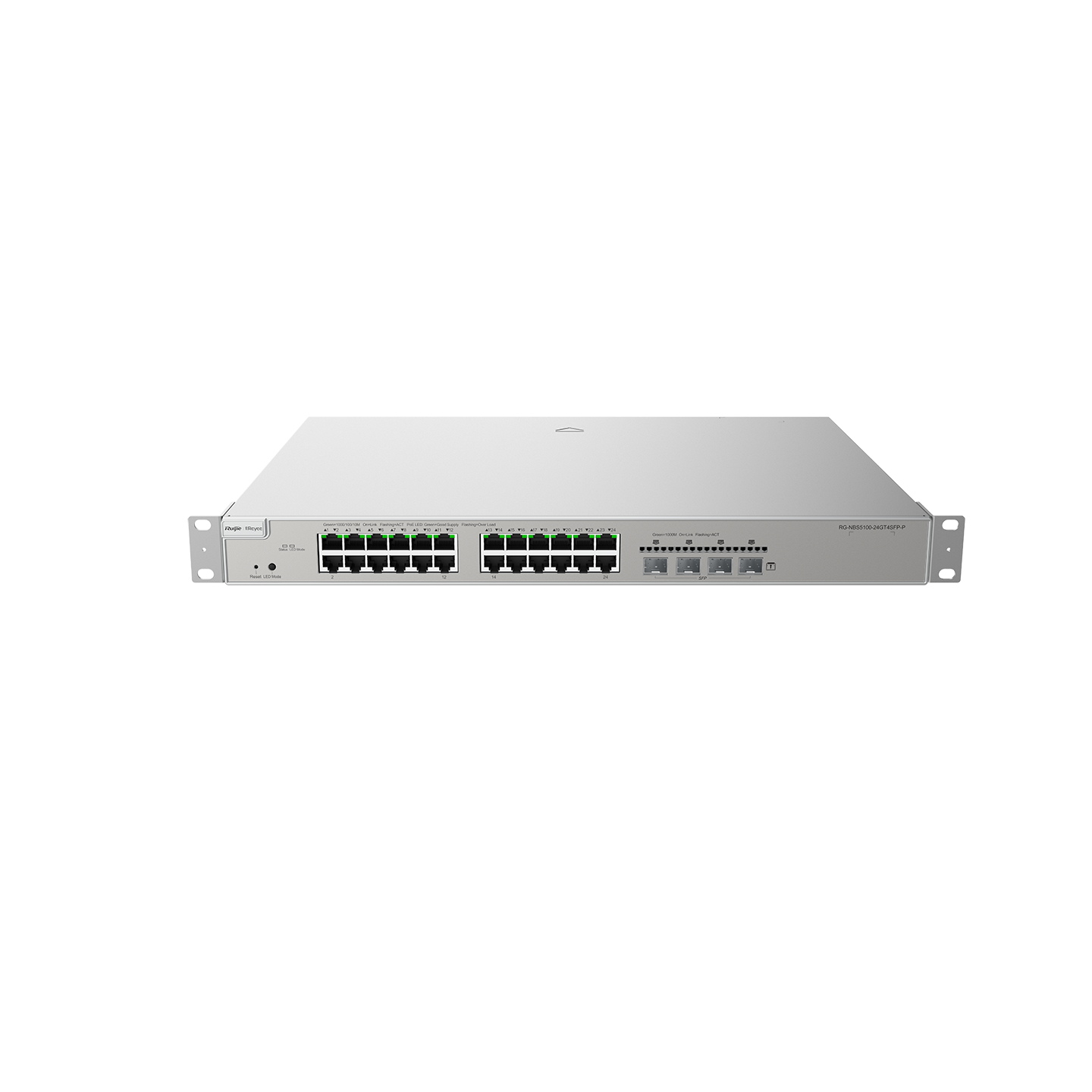

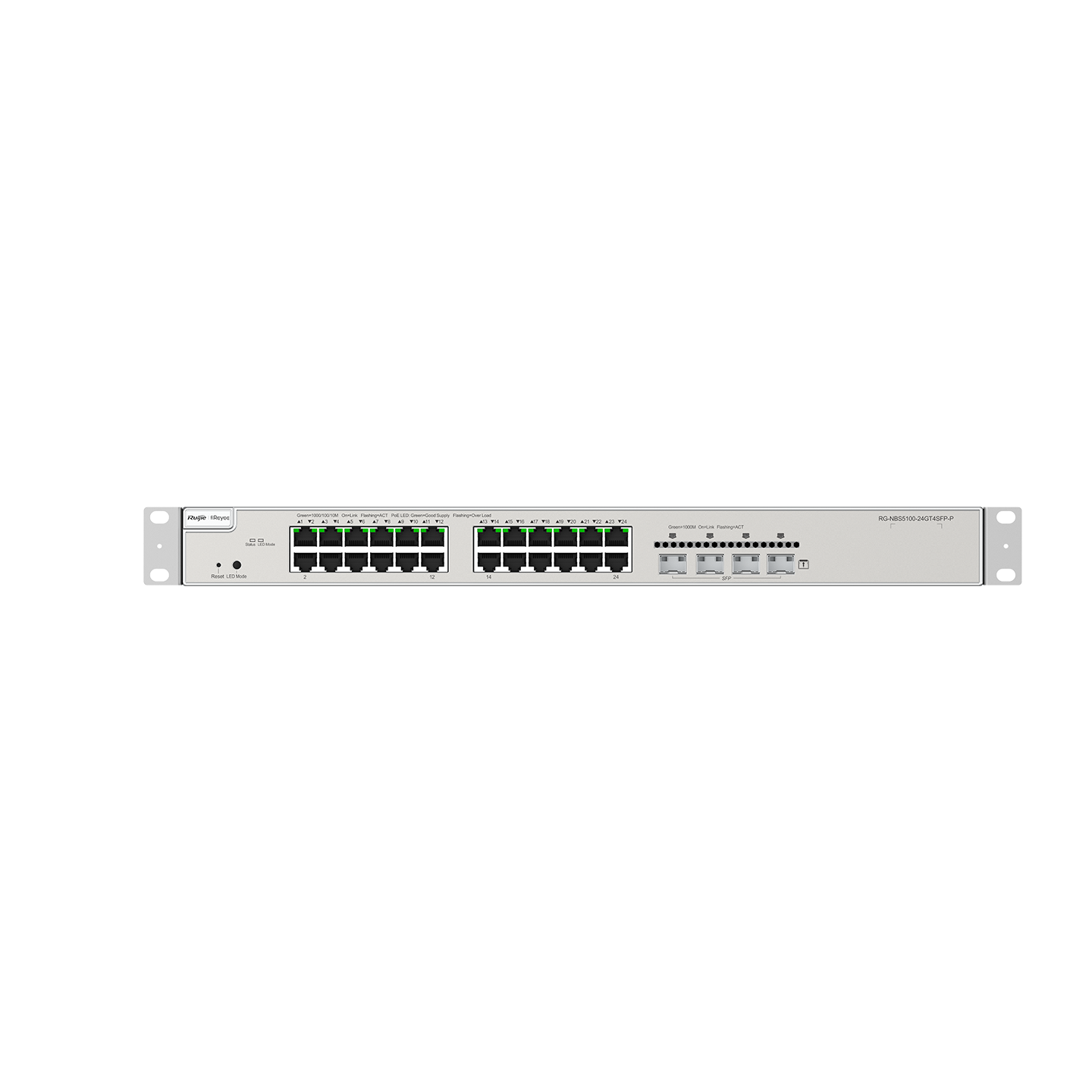

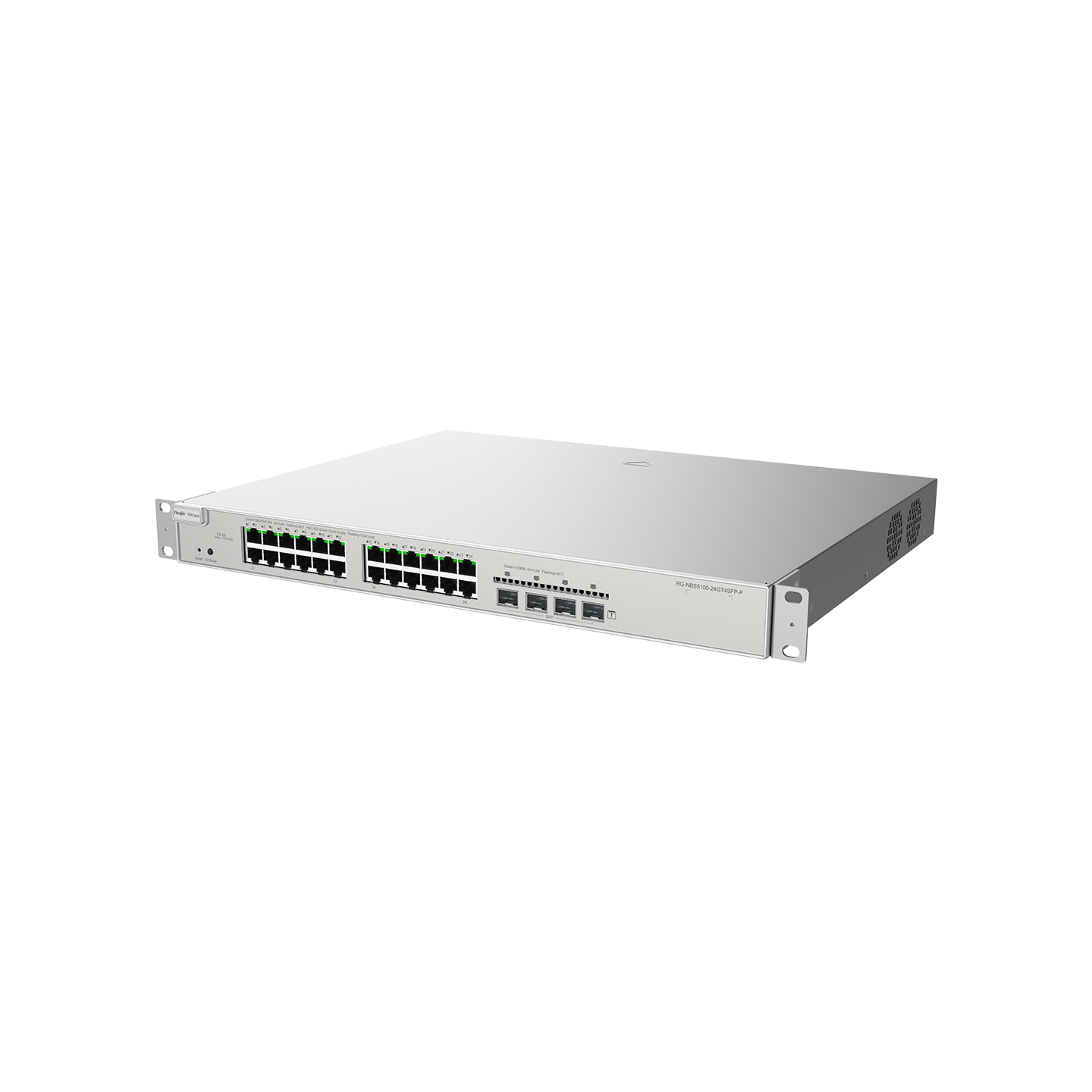

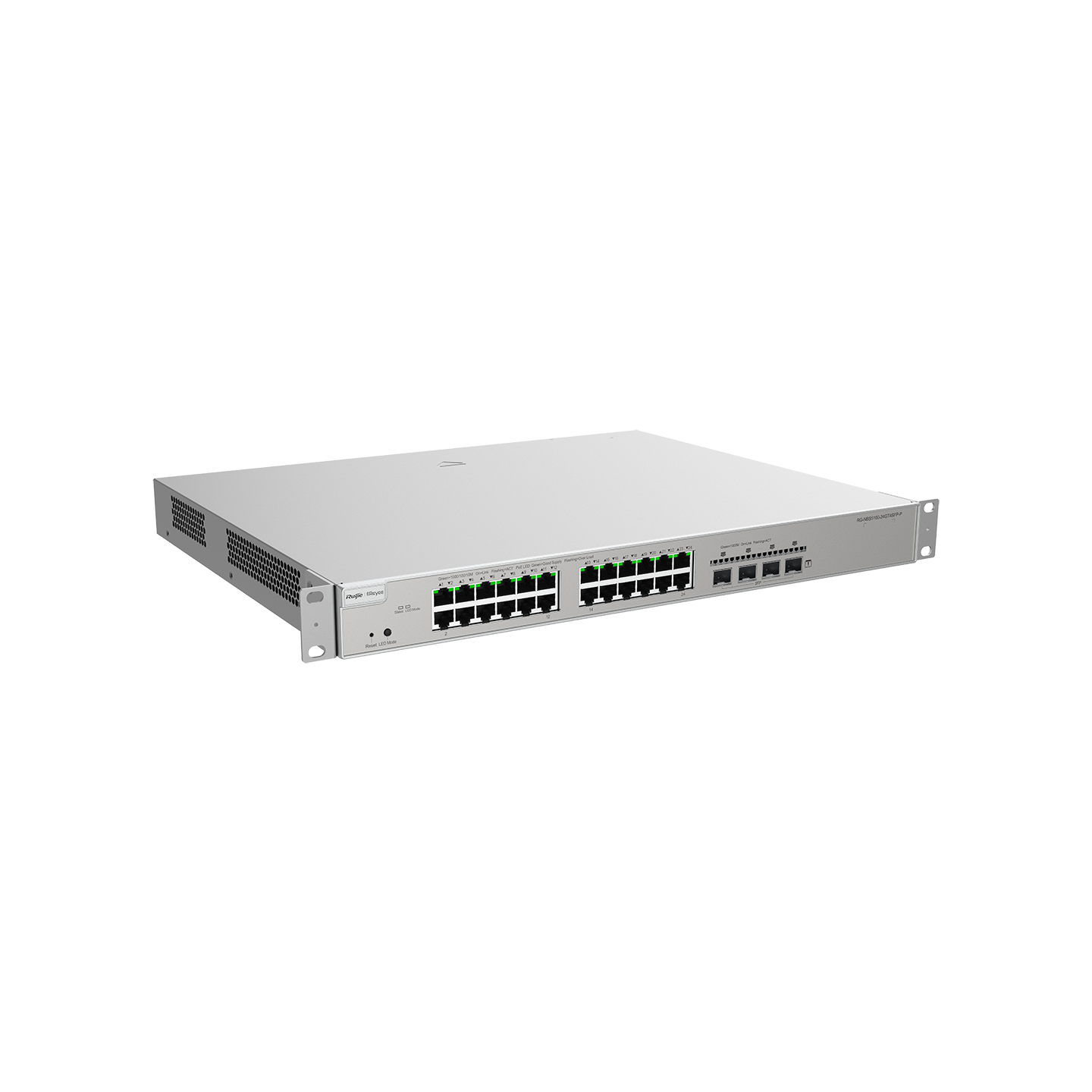

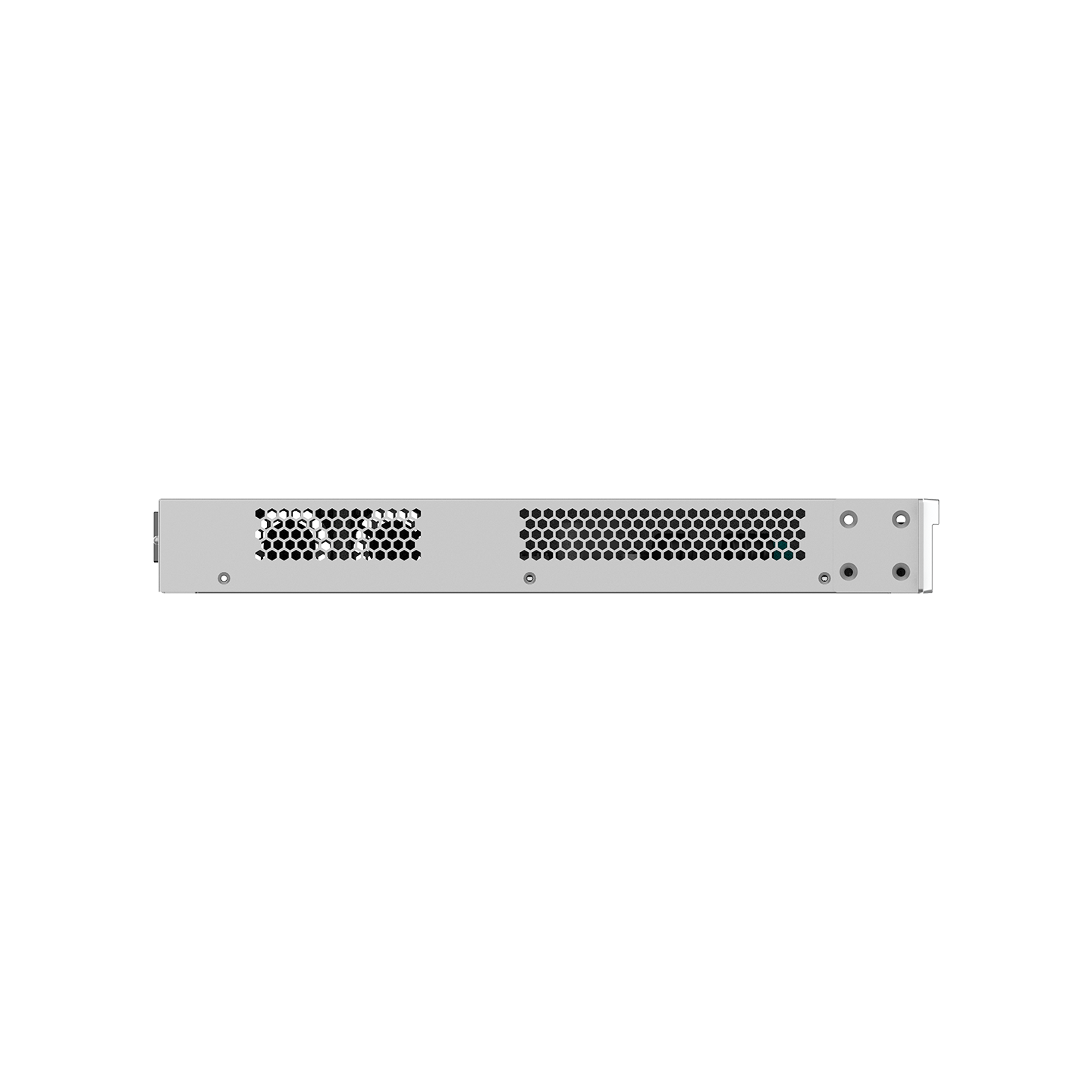

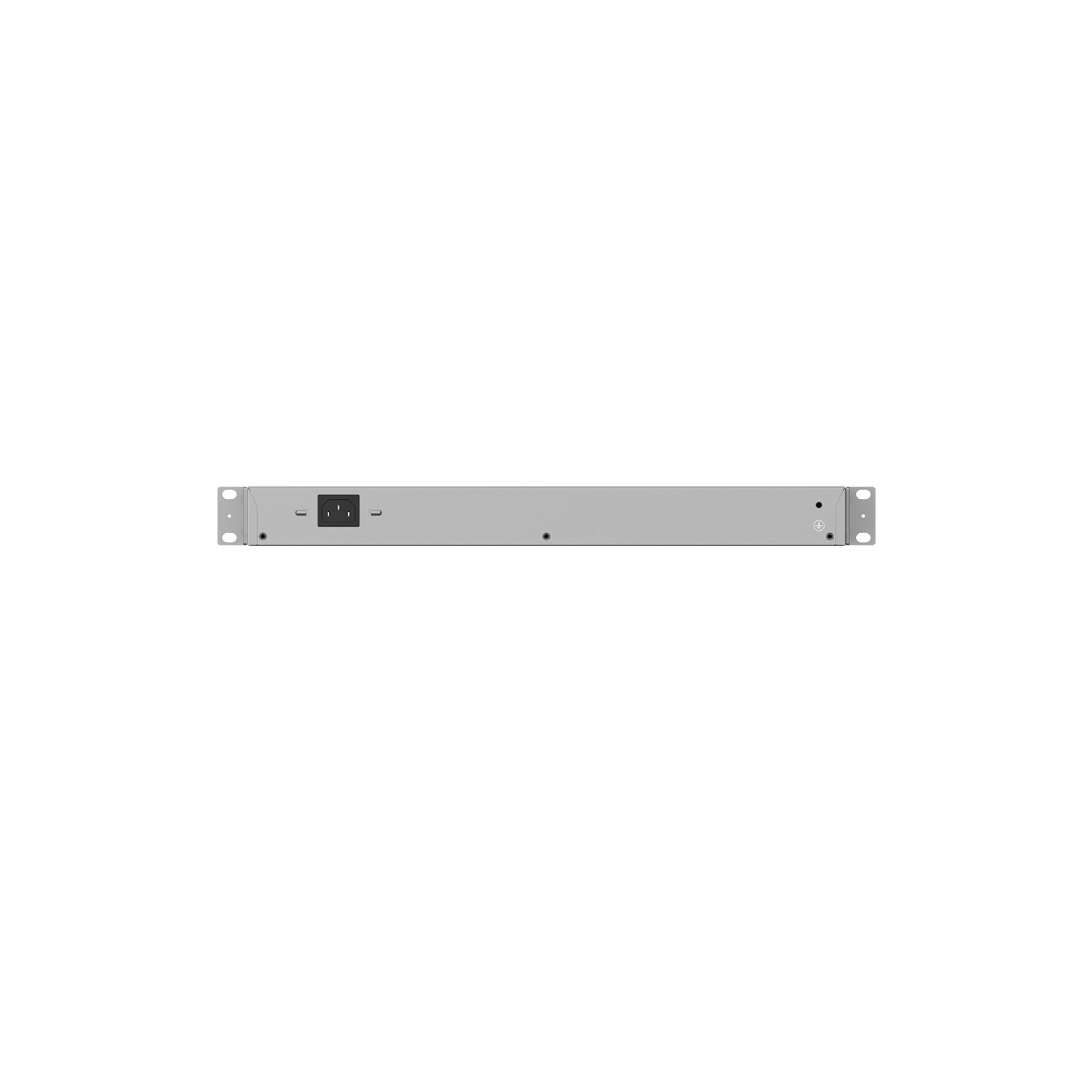

Ruijie Reyee 28-Port Gigabit Layer 3 PoE Switch RG-NBS5100-24GT4SFP-P

The Ruijie Reyee RG-NBS5100-24GT4SFP-P is a 28-port Gigabit Layer 3 managed PoE switch designed for enterprise networks, surveillance systems, and high-performance access layers. It offers robust routing capabilities, advanced security features, and seamless cloud-based management.

Quick Specs

24 × 10/100/1000Base-T Copper Ports L3 Managed With Auto-Negotiation, 4 × 1Ge Sfp Ports, Poe/Poe+ Power Supply, 370 W Poe Power Supply

Key Features

• Port Configuration: 24 × 10/100/1000 Mbps RJ45 PoE+ ports and 4 × 1G SFP uplink ports

• PoE Capability: Supports IEEE 802.3af/at with a total PoE budget of 370W

• Switching Capacity: 56 Gbps

• Forwarding Rate: 42 Mpps

• MAC Address Table: Supports up to 16,000 entries

• VLAN Support: Up to 4,094 VLANs

• Surge Protection: 6 kV on all ports

• Power Consumption: ≤432W

• Cooling: Built-in fan for efficient temperature control

• Form Factor: 440 mm × 357.6 mm × 43.6 mm

• Weight: Approximately 6.5 kg (with packaging)

• Warranty: 5 years

• Layer 3 Routing: Supports static routing, RIP, and OSPF

• Security: Supports IP/MAC-based ACLs, DHCP snooping, IP source guard, and anti-ARP spoofing

• Management: Offers web-based GUI, SNMP v1/v2c/v3, and cloud management via Ruijie Cloud and mobile app

• Network Optimization: Includes link aggregation, IGMP snooping, loop prevention, and jumbo frame support (up to 9,216 bytes)

• Self-Organizing Network (SON): Enables zero-touch provisioning and automatic topology recognition
