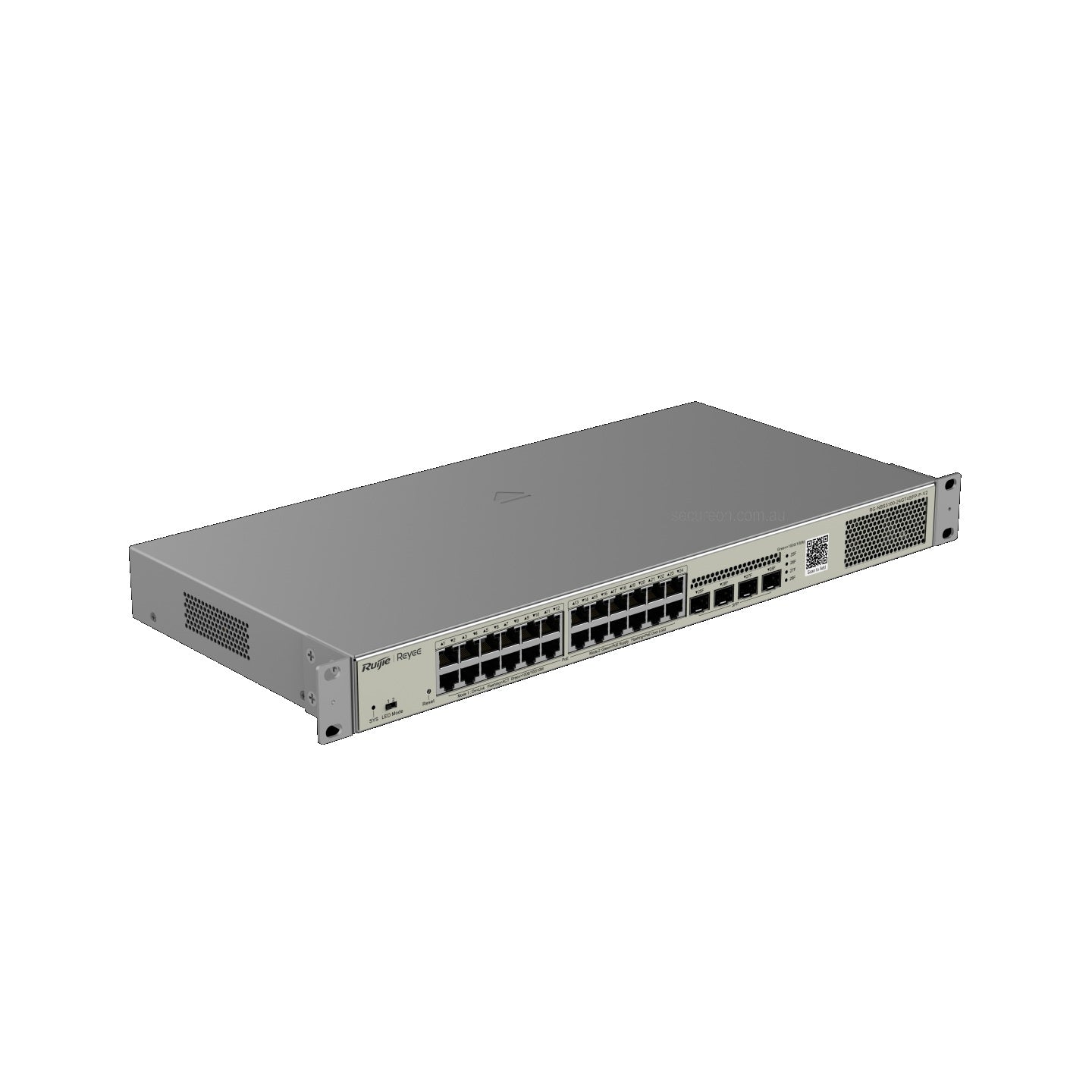

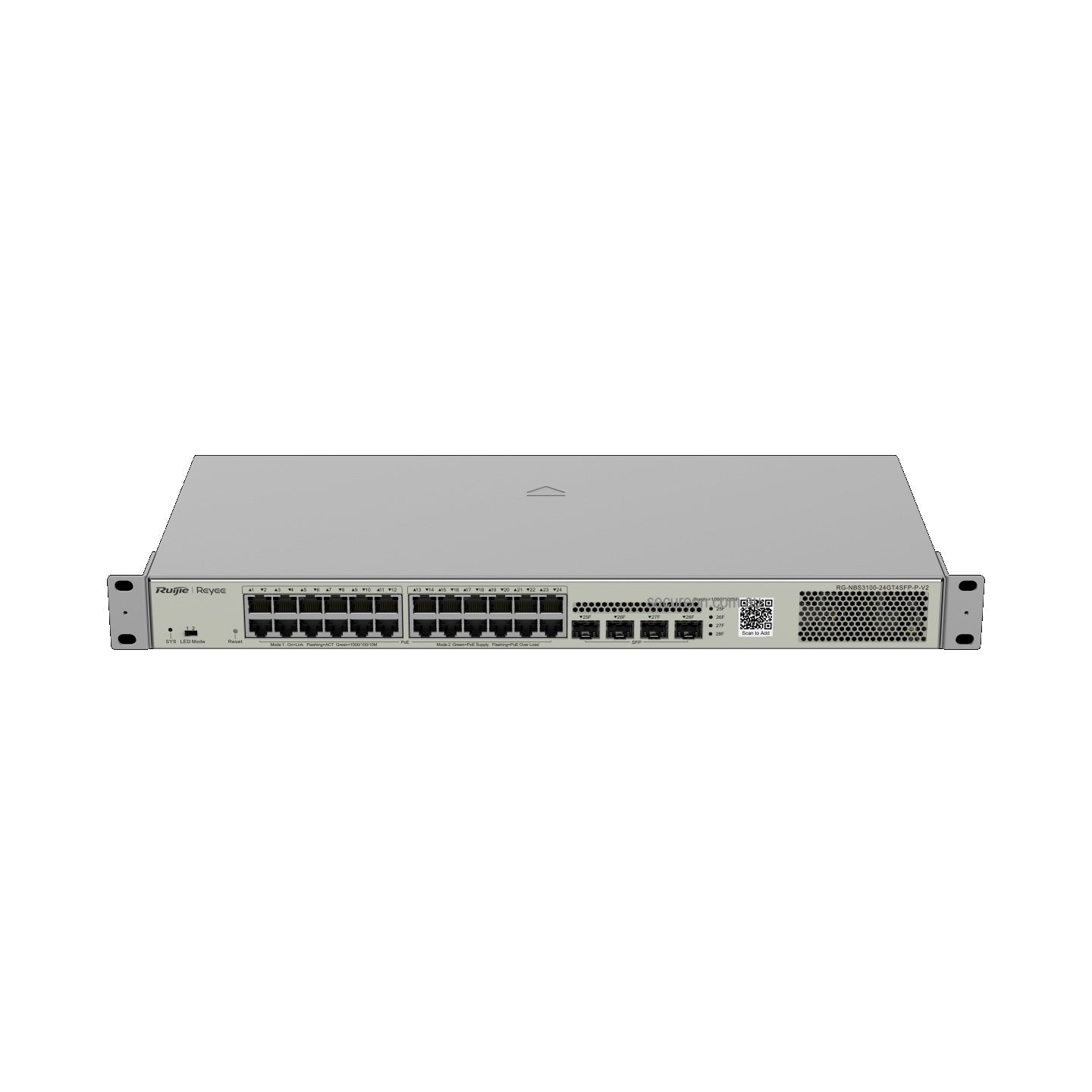

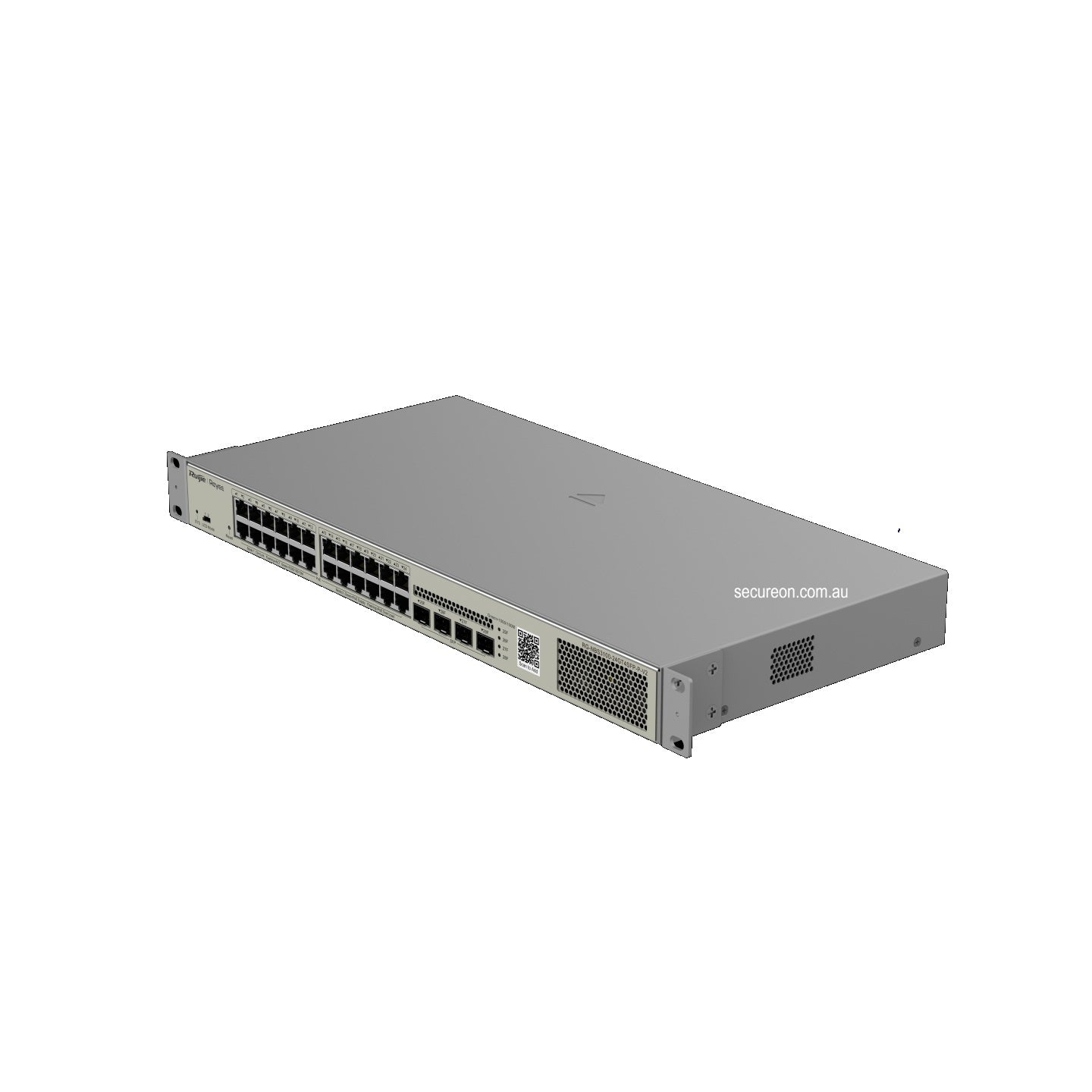

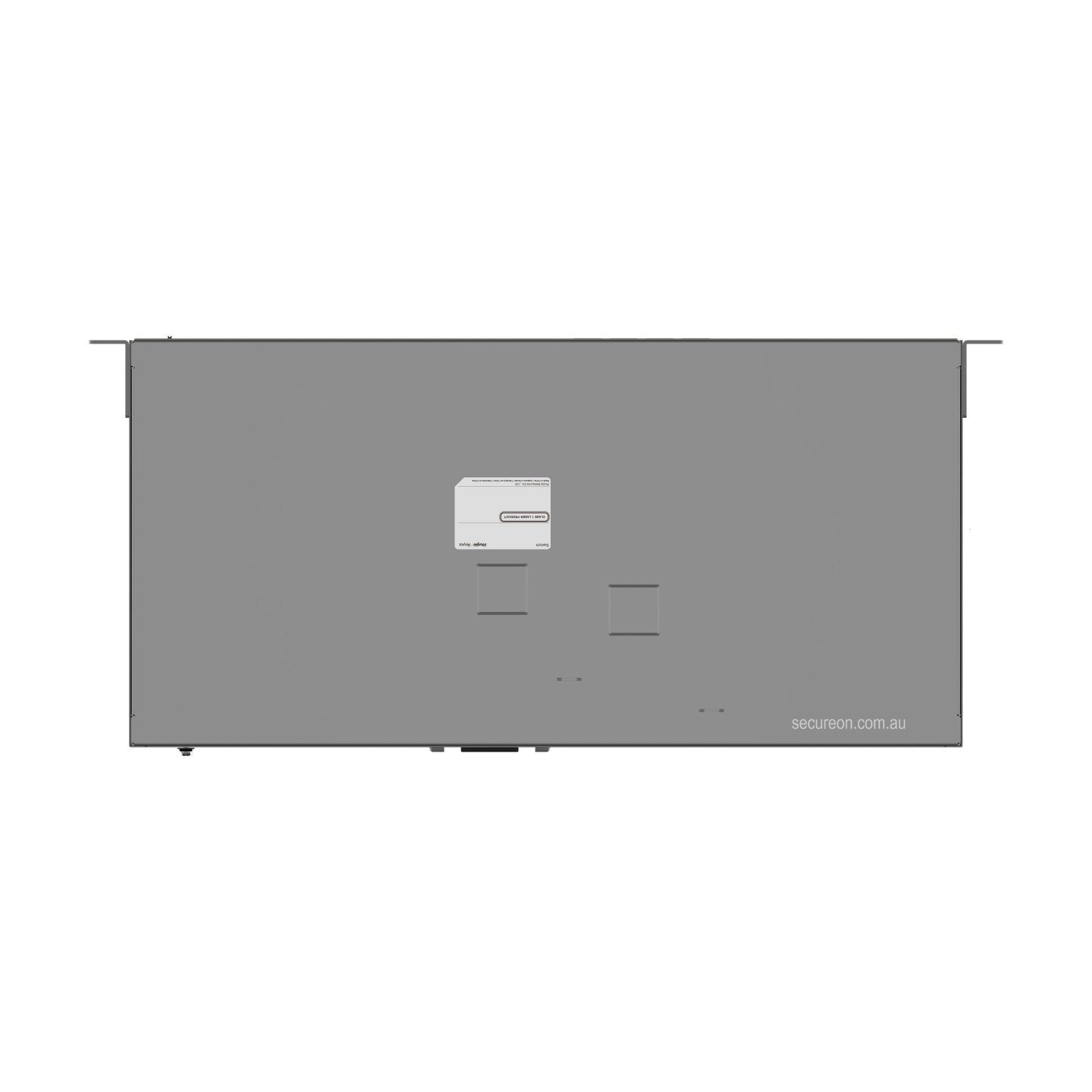

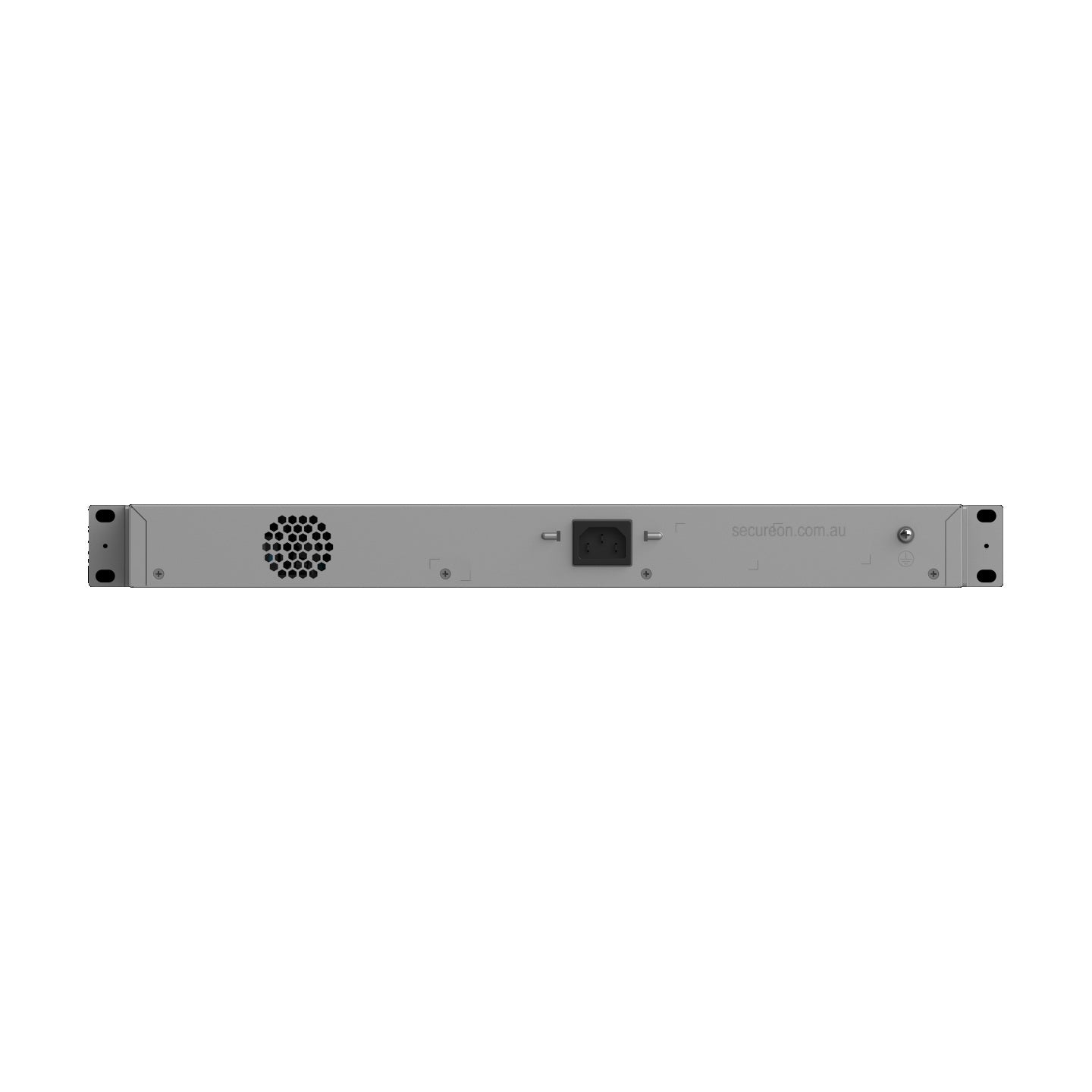

Ruijie Reyee 28-Port GE Layer 2 Cloud Managed Switch 24x PoE+ 370W 4x SFP RG-NBS3100-24GT4SFP-P-V2

Ruijie Reyee RG-NBS3100-24GT4SFP-P-V2 28-Port Gigabit Layer 2 Cloud Managed PoE Switch

The Ruijie Reyee RG-NBS3100-24GT4SFP-P-V2 is a 28-port Gigabit Layer 2 cloud managed PoE switch designed for enterprise and SMB networks requiring high-density PoE connectivity and advanced management. With 24x PoE+ ports delivering a 370W budget (max 30W per port), 4x SFP uplinks, 6kV surge protection, and enterprise-class features including link aggregation, IGMP snooping, and VLAN support, it is well suited for large IP camera, wireless AP, and VoIP deployments. Lifetime cloud management via Ruijie Cloud. Backed by a 5-year warranty.

Highlight Features

• 24x GE PoE+ ports (802.3at/af, max 30W per port) + 4x 1GE SFP uplinks
• 370W total PoE budget
• 6kV surge protection on service ports and power connector
• IP camera and NVR recognition for CCTV networks
• Link aggregation, IGMP snooping, and VLAN support
• Multiple security policies: port isolation, broadcast storm control
• PoE watchdog for automatic device recovery
• Zero-touch provisioning with SON
• Lifetime cloud management via Ruijie Cloud
• MTBF: 400,000 hours
• Warranty: 5 years

Hardware Specifications

Frequently Asked Questions

How many PoE devices can I connect to the RG-NBS3100-24GT4SFP-P-V2?

The switch has 24x PoE+ ports with a total budget of 370W. If all devices draw the maximum 30W (PoE+), you can power up to 12 devices simultaneously at full load. For typical IP cameras drawing 10-15W, you can comfortably power all 24 ports within the budget.

What is the difference between this switch and the RG-NBS3100-8GT2SFP-P-V2?

The RG-NBS3100-24GT4SFP-P-V2 offers 24x PoE+ ports and 4x SFP uplinks with a 370W PoE budget, making it suited for larger deployments such as multi-floor offices or large camera systems. The 8-port model is better suited for smaller installations or wiring closets.

Can I manage this switch remotely?

Yes. The switch supports lifetime free cloud management via Ruijie Cloud, allowing you to monitor port statistics, configure VLANs, manage PoE, and perform firmware updates from anywhere. The Ruijie Reyee mobile app is also supported for on-the-go management.

Does it support IP camera recognition?

Yes. The switch includes built-in IP camera and NVR recognition, making it easy to identify and manage CCTV devices on the network. It also supports IPC offline alarms and individual port reboot for camera recovery without on-site visits.

What SFP modules are compatible with the uplink ports?

The 4x SFP uplink ports support standard 1GE SFP modules. Ruijie-compatible options include the MINI-GBIC-SX-MM850 (multimode, 550m) and MINI-GBIC-LX-SM1310 (single-mode, 10KM).

What warranty does this switch come with?

The RG-NBS3100-24GT4SFP-P-V2 is backed by a 5-year Ruijie Reyee manufacturer warranty.

Downloads

• RG-NBS3100-24GT4SFP-P-V2 Datasheet
