Ruijie Reyee 8-Port 2.5G Smart Cloud Managed Switch 8x PoE+ 130W 1x 10GE SFP+ RG-ES209MG-P

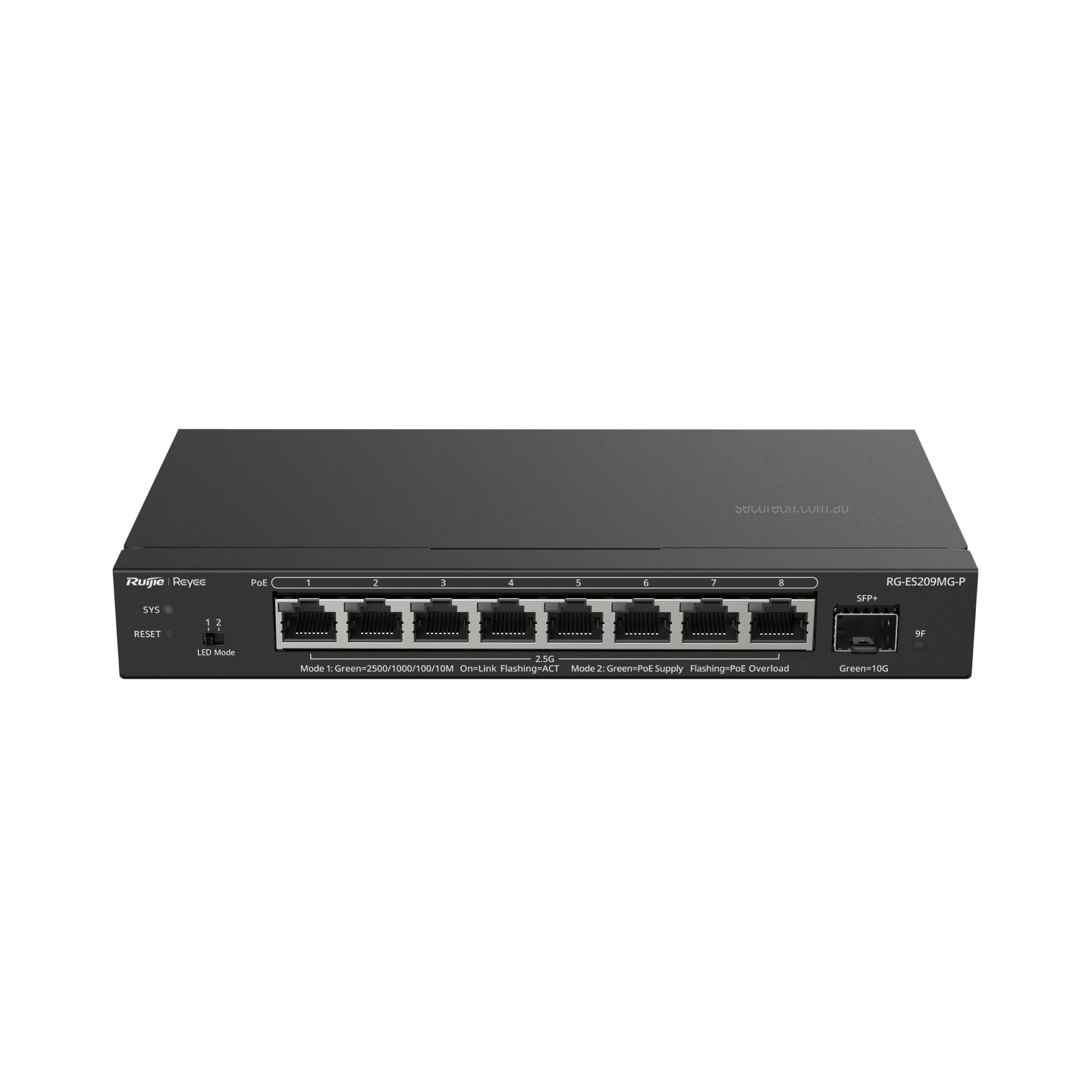

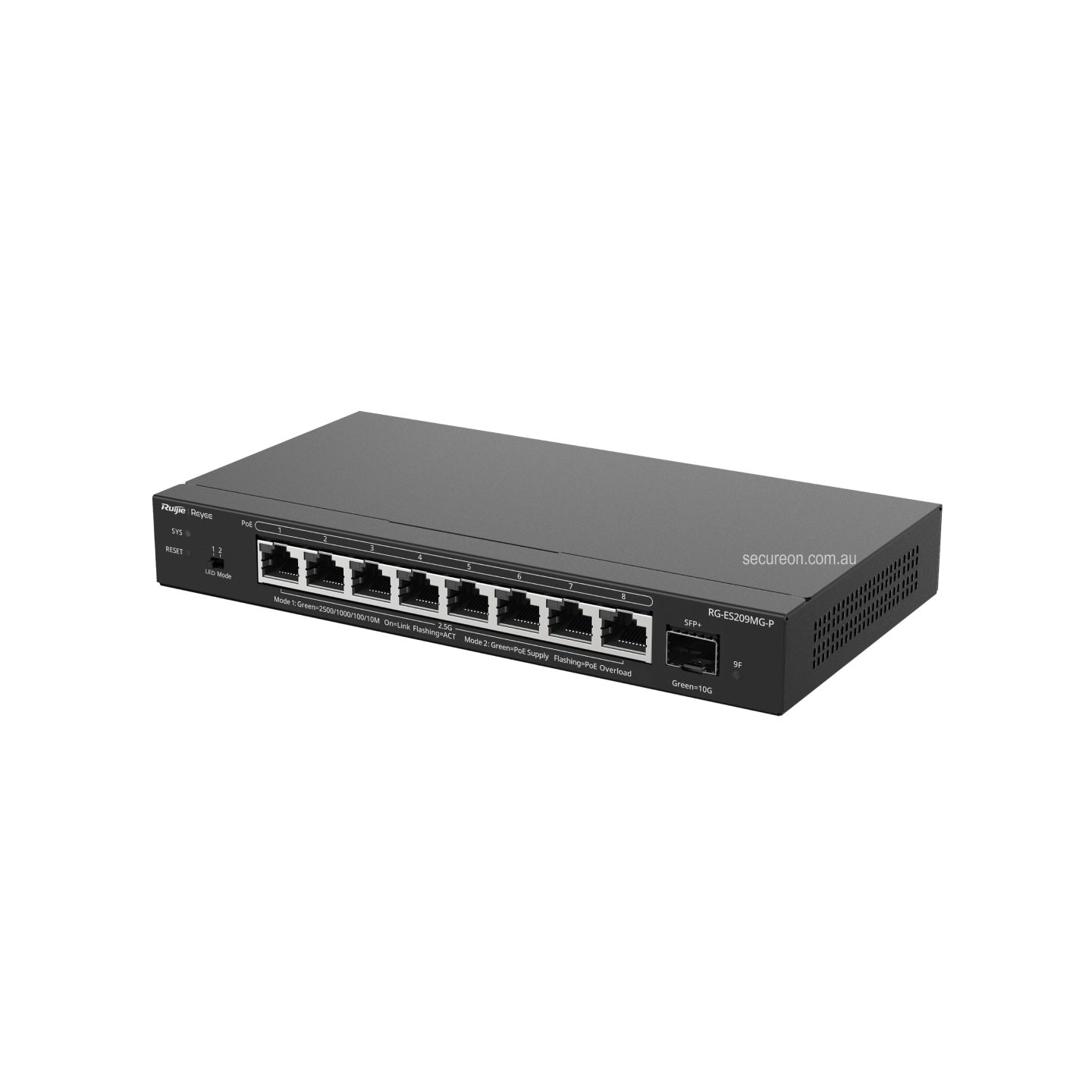

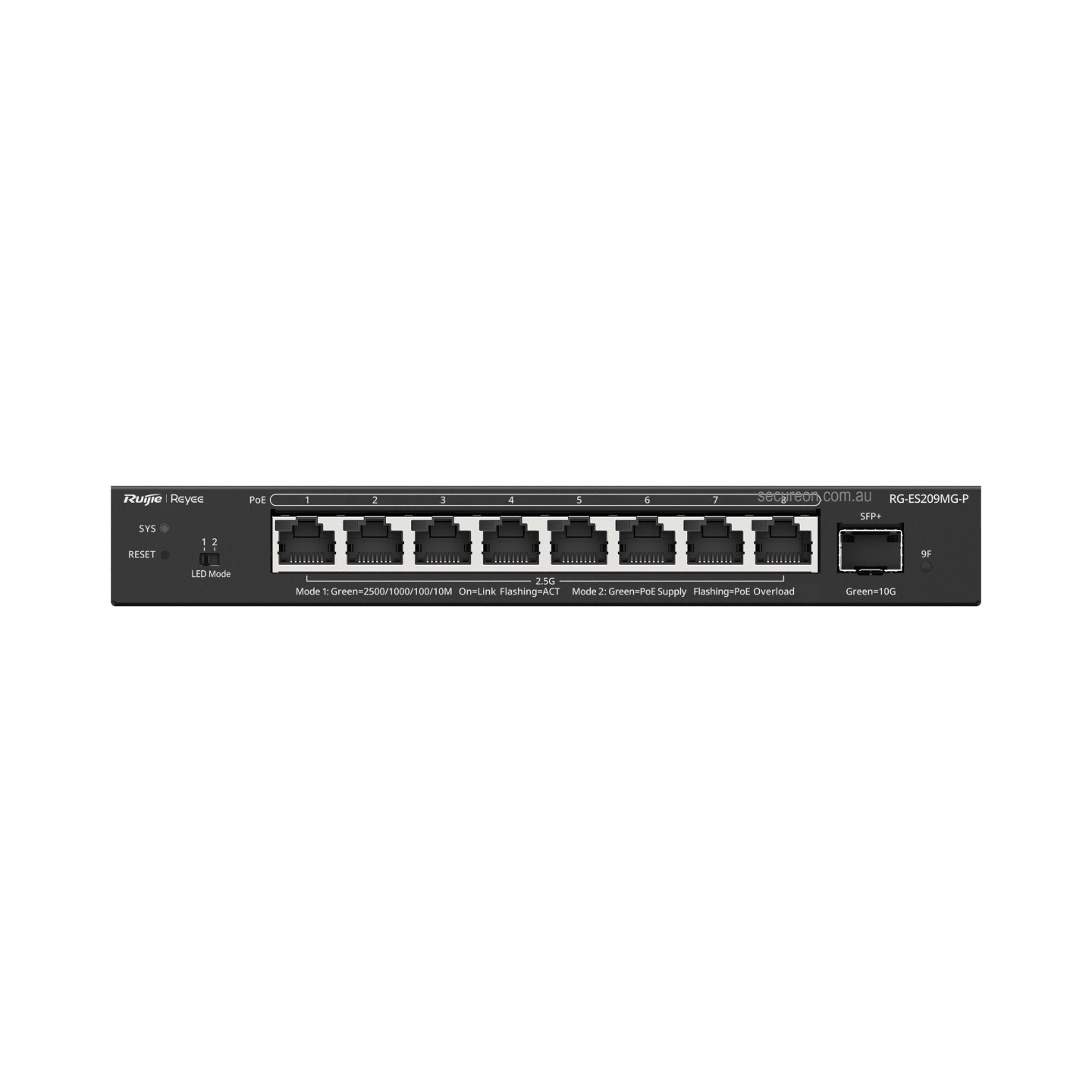

Ruijie Reyee RG-ES209MG-P 8-Port 2.5G Smart Cloud Managed PoE Switch with 10GE SFP+ Uplink

The Ruijie Reyee RG-ES209MG-P is an 8-port multi-gigabit smart cloud managed PoE switch designed to maximise the performance of Wi-Fi 7 access points and bandwidth-hungry devices. With 8x 2.5G PoE+ ports delivering a 130W budget and a 10GE SFP+ uplink, it eliminates the bottlenecks that limit modern wireless networks. Port aggregation of up to 4 ports unlocks even higher throughput for demanding environments. Lifetime free cloud management via Ruijie Cloud. Backed by a 3-year warranty.

Highlight Features

• 8x 2.5G PoE+ ports (802.3af/at) + 1x 10GE SFP+ uplink
• 130W total PoE budget
• Up to 4-port aggregation for higher network throughput
• 60 Gbps switching capacity, 45 Mpps forwarding rate
• PoE watchdog and port isolation
• Cost-effective smart cloud managed design
• Lifetime free cloud management via Ruijie Cloud
• Warranty: 3 years

Hardware Specifications

Frequently Asked Questions

What is the difference between the RG-ES209MG-P and a standard Gigabit PoE switch?

The RG-ES209MG-P uses 2.5G ports instead of standard 1G ports, providing up to 2.5x more bandwidth per port. This is particularly important when connecting Wi-Fi 7 access points, which can exceed 1Gbps throughput and would otherwise be bottlenecked by a standard Gigabit switch.

Is the RG-ES209MG-P compatible with Wi-Fi 7 access points?

Yes. The 2.5G ports and 10GE SFP+ uplink are specifically designed to support the higher throughput demands of Wi-Fi 7 (802.11be) access points, ensuring the wired backhaul does not limit wireless performance.

How is the switch managed?

The RG-ES209MG-P is managed via Ruijie Cloud, which provides lifetime free access for remote monitoring, VLAN configuration, PoE management, and firmware updates from any device. It also supports the Ruijie Reyee mobile app for on-the-go management.

What PoE standards does it support?

The switch supports IEEE 802.3af (PoE, up to 15.4W per port) and IEEE 802.3at (PoE+, up to 30W per port) across all 8 ports, with a total PoE budget of 130W.

Can I use the SFP+ port with a standard 1G SFP module?

The SFP+ port is designed for 10GE operation. Compatibility with 1G SFP modules depends on the specific module. For best results, use Ruijie-compatible SFP+ transceivers such as the XG-SFP-SR-MM850 or XG-SFP-LR-SM1310.

Does the switch support link aggregation?

Yes. The RG-ES209MG-P supports aggregation of up to 4 ports, allowing you to bond multiple 2.5G links for higher combined throughput between switches or servers.

What warranty does the RG-ES209MG-P come with?

The RG-ES209MG-P is backed by a 3-year Ruijie Reyee manufacturer warranty.

Downloads

• RG-ES209MG-P Datasheet
• RG-ES209MG-P Installation Guide
