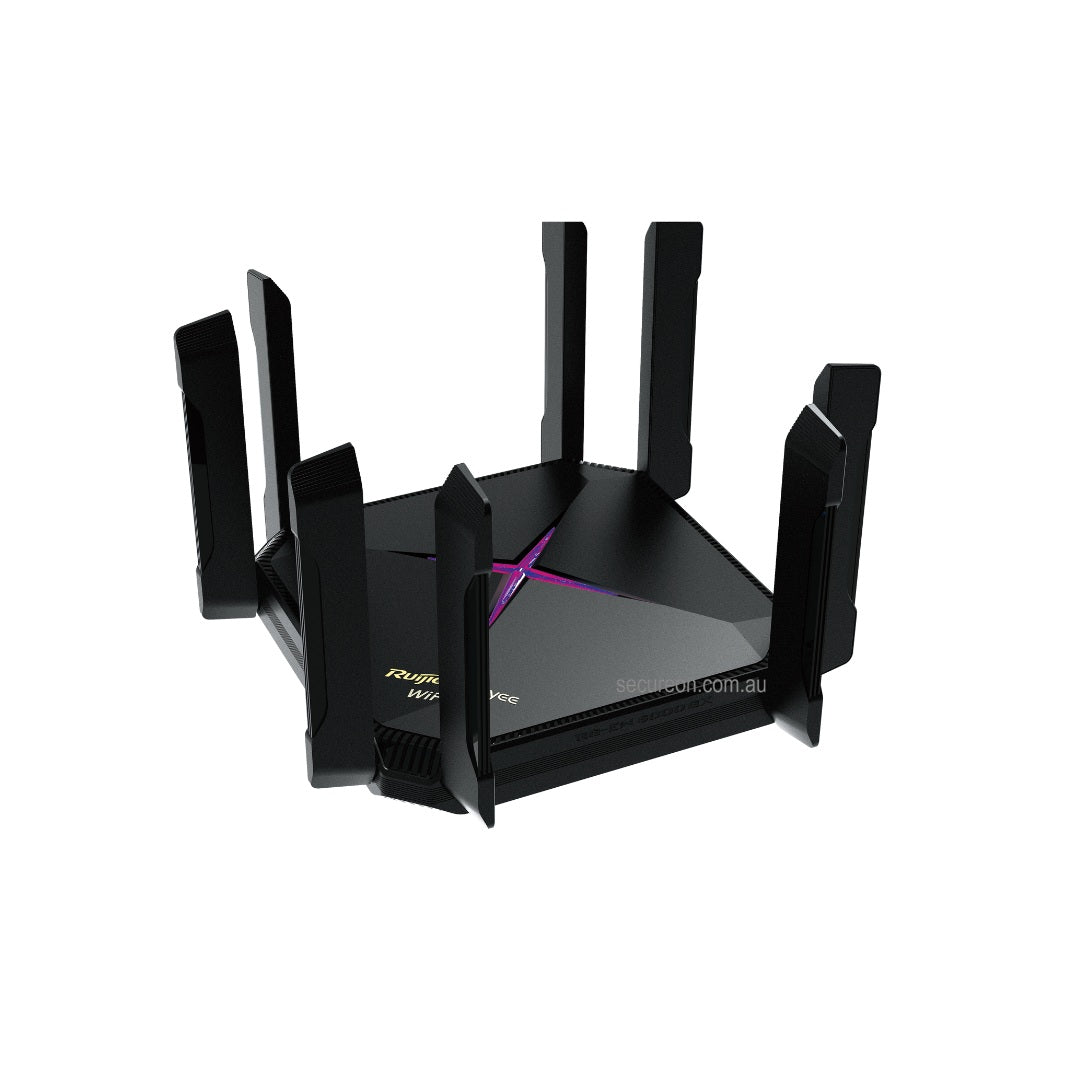

Ruijie Reyee AX6000 Wi-Fi 6 Tri-Band Mesh Router 2.5G Port Dual-WAN 160MHz 8x Antenna RG-EW6000GX

Ruijie Reyee RG-EW6000GX AX6000 Wi-Fi 6 Mesh Router with 2.5G Port

The Ruijie Reyee RG-EW6000GX is a full-power AX6000 Wi-Fi 6 mesh router built for villas, large apartments, bungalows, SOHO offices, and small shops. With 160MHz channel bandwidth, a quad-core 2.0GHz enterprise-level chipset, 8x external antennas, and a 2.5G WAN/LAN port, it delivers up to 6000Mbps combined throughput and supports up to 384 concurrent clients. Dual-WAN aggregation exceeds 1.6Gbps combined bandwidth, while Reyee Mesh 3.0 ensures seamless whole-home roaming. A dedicated gaming port prioritises low-latency traffic. Managed via the Ruijie Reyee app from anywhere.

Highlight Features

• AX6000 Wi-Fi 6: 4804Mbps (5GHz) + 1147Mbps (2.4GHz)
• 160MHz channel bandwidth for ultra-high-speed transmission

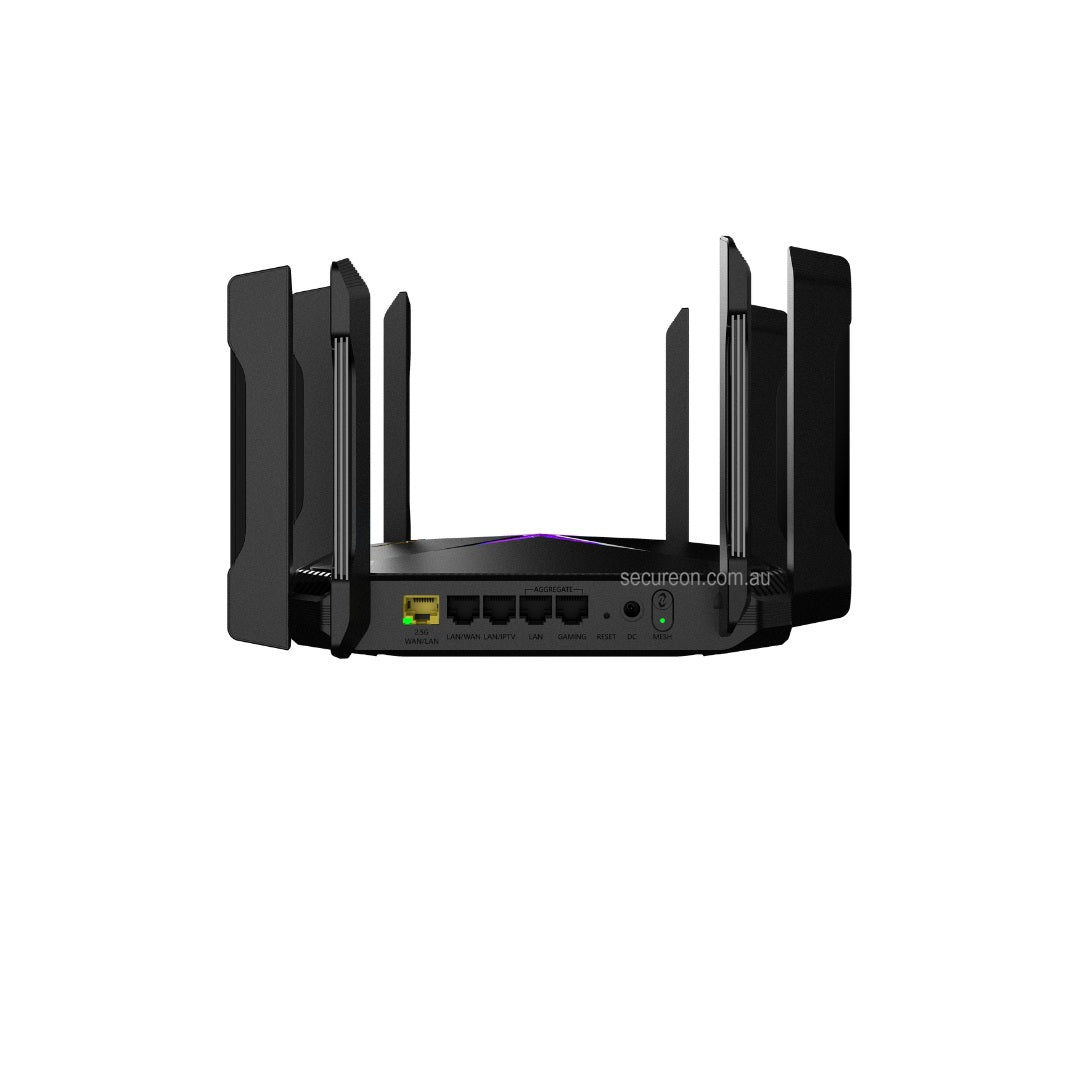

• 1x 2.5G WAN/LAN port + 1x 1G WAN/LAN port + 3x 1G LAN ports
• Dual-WAN aggregation: combined bandwidth exceeding 1.6Gbps
• Dual-LAN aggregation support
• Dedicated gaming port for low-latency prioritisation
• Enterprise-level quad-core 2.0GHz CPU chipset
• 8x external antennas (4.5dBi at 2.4GHz, 5.5dBi at 5GHz)
• 8 spatial streams: 4x4 MU-MIMO on both 2.4GHz and 5GHz
• Supports up to 384 concurrent clients (128 at 2.4GHz, 256 at 5GHz)
• Reyee Mesh 3.0 for seamless whole-home coverage and roaming
• Ruijie Cloud management and Reyee app remote control
• IPv6 support

Hardware Specifications

Frequently Asked Questions

What is the difference between the RG-EW6000GX and the RG-EW3000GX?

The RG-EW6000GX is the higher-end model with AX6000 throughput (4804Mbps 5GHz + 1147Mbps 2.4GHz), a 2.5G port, 8 antennas, 4x4 MU-MIMO on both bands, and a quad-core enterprise chipset. The RG-EW3000GX is AX3000 with 2402Mbps 5GHz, 5 antennas, and no 2.5G port. The EW6000GX is suited for larger homes and higher-demand environments.

What is the 2.5G port used for?

The 2.5G port can be configured as either a WAN or LAN port. As a WAN port, it supports ISP connections delivering more than 1Gbps. As a LAN port, it provides a high-speed wired connection for a NAS, gaming PC, or other high-bandwidth device.

What is dual-WAN aggregation?

Dual-WAN aggregation combines two separate internet connections (e.g., two ISP lines) into a single logical connection, delivering combined bandwidth exceeding 1.6Gbps. It also provides automatic failover if one connection drops, ensuring continuous internet access.

What is the gaming port?

The dedicated gaming port prioritises low-latency traffic for connected gaming devices, reducing lag and jitter during online gaming sessions even when other devices are active on the network.

How does Reyee Mesh work?

Reyee Mesh 3.0 allows multiple Reyee Wi-Fi 5 and Wi-Fi 6 routers to form a unified mesh network with seamless roaming and centralised management. Devices automatically connect to the strongest node as you move through your home or office, without dropping the connection.

What warranty does the RG-EW6000GX come with?

The RG-EW6000GX is backed by a 3-year Ruijie Reyee manufacturer warranty.

Downloads

• RG-EW6000GX Datasheet
• RG-EW6000GX Installation Guide
