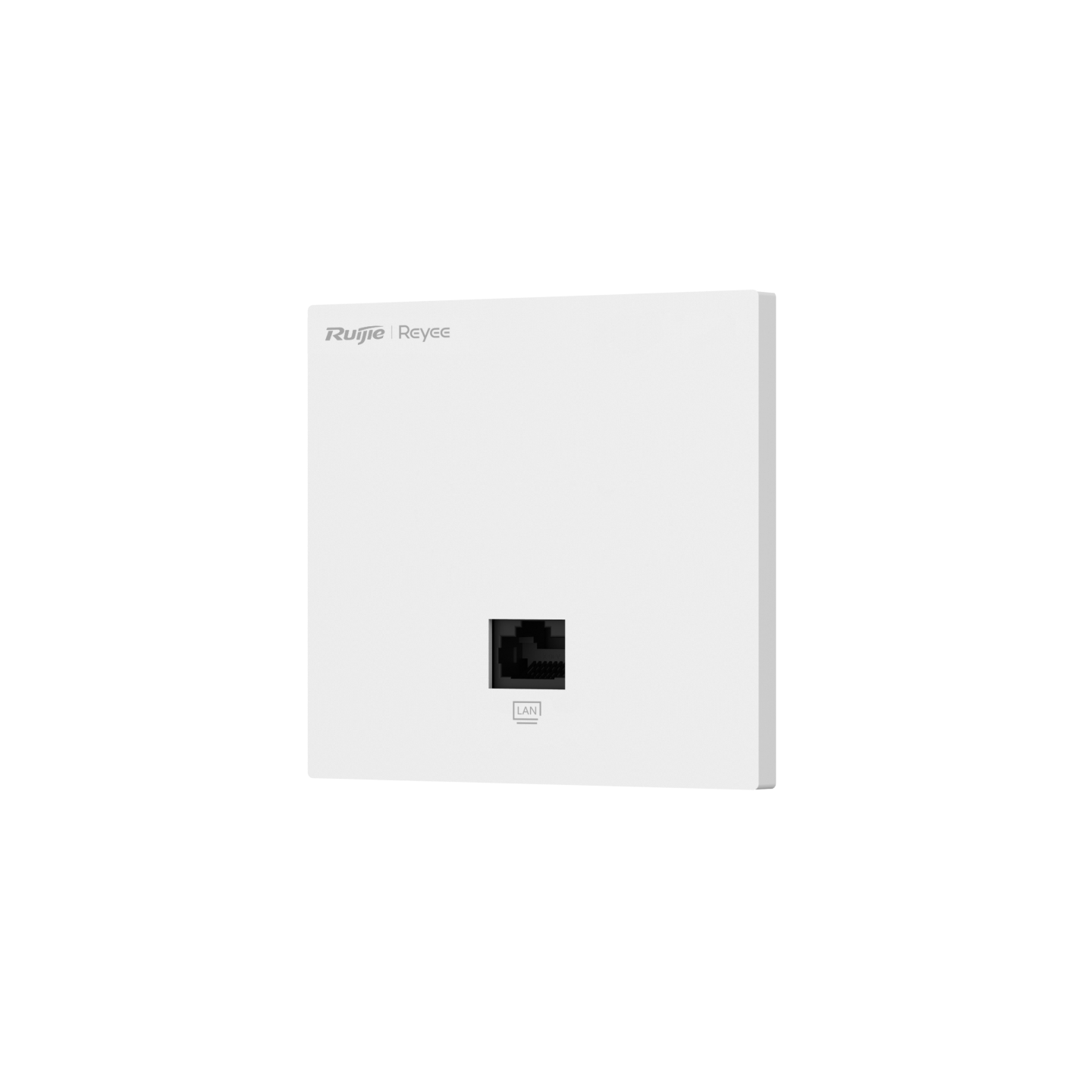

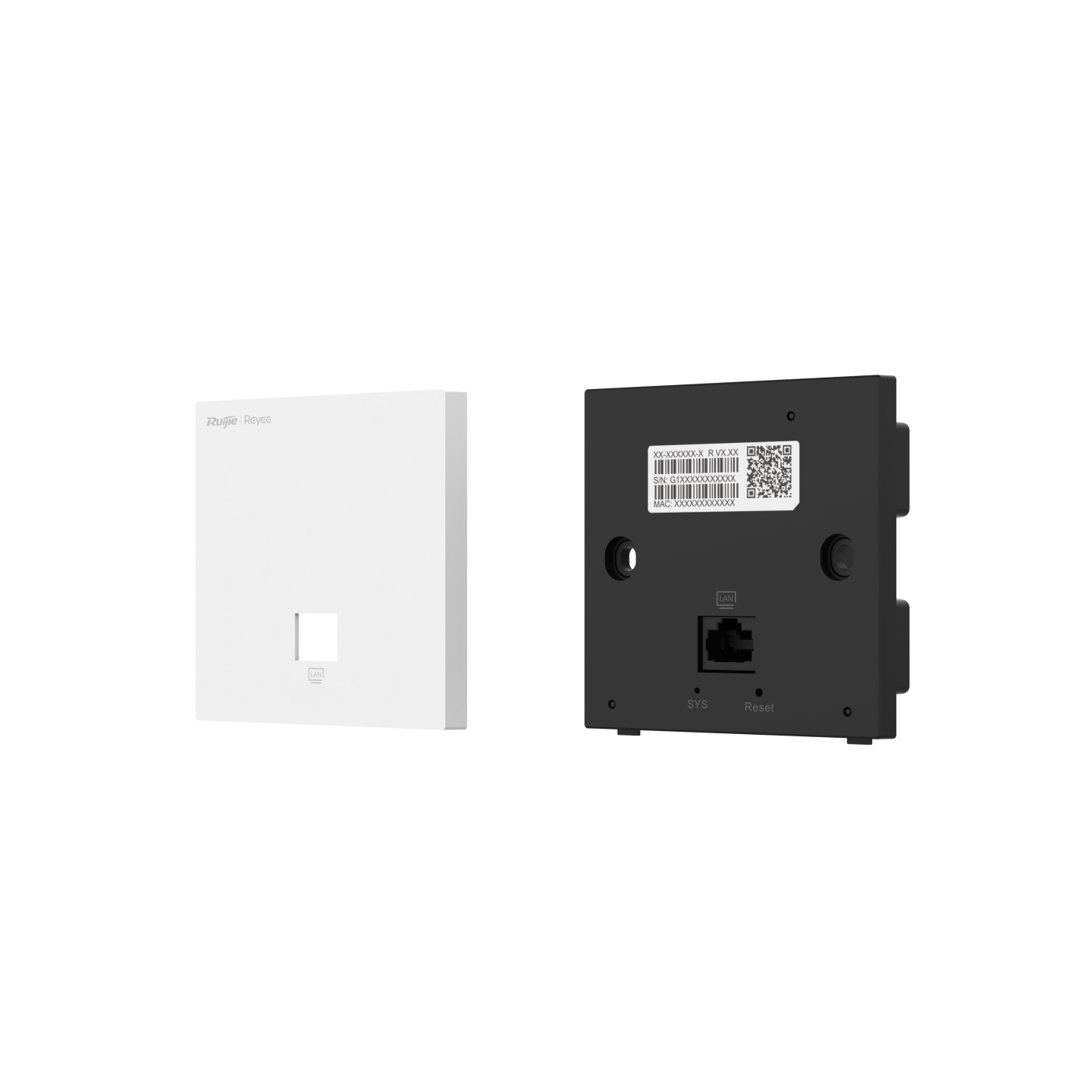

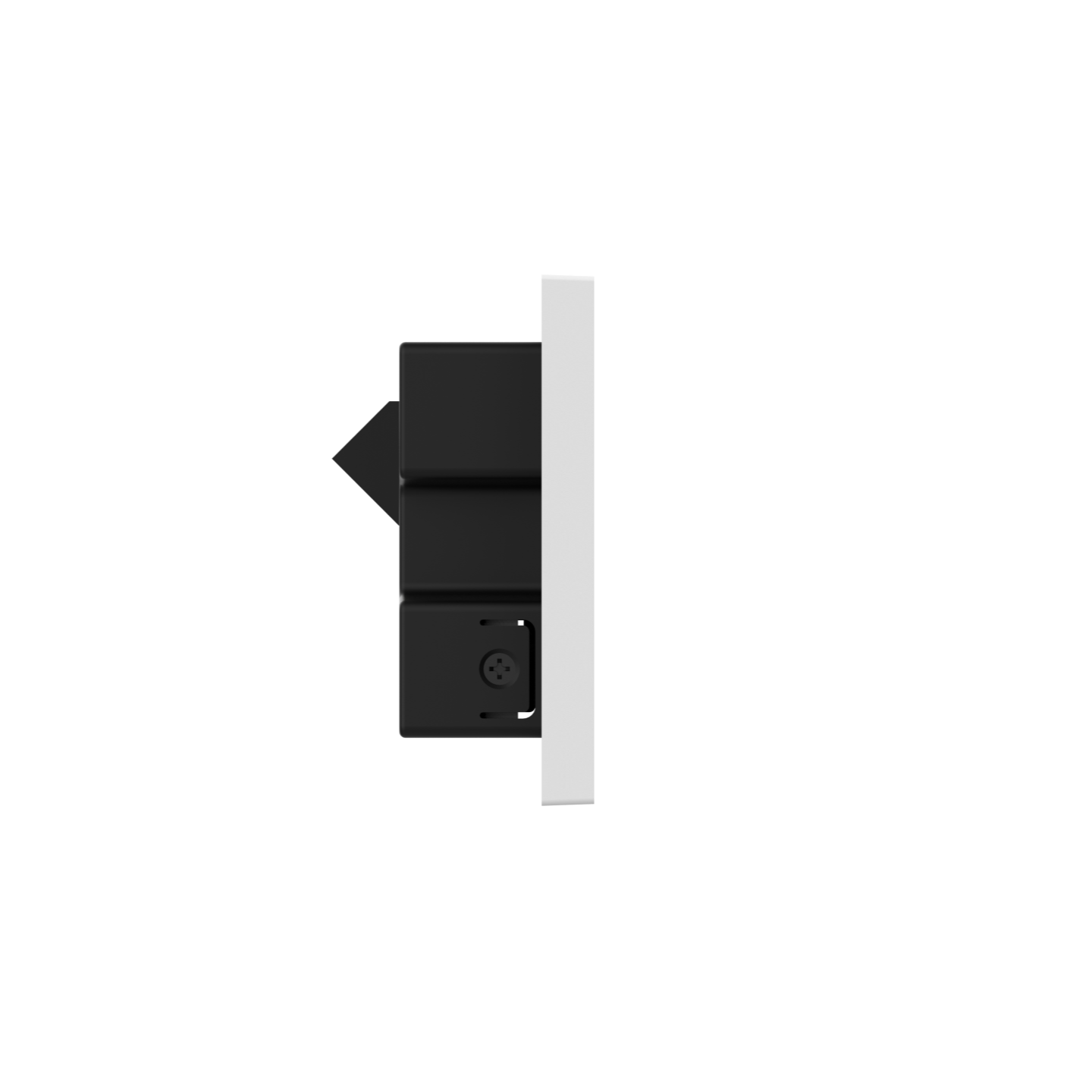

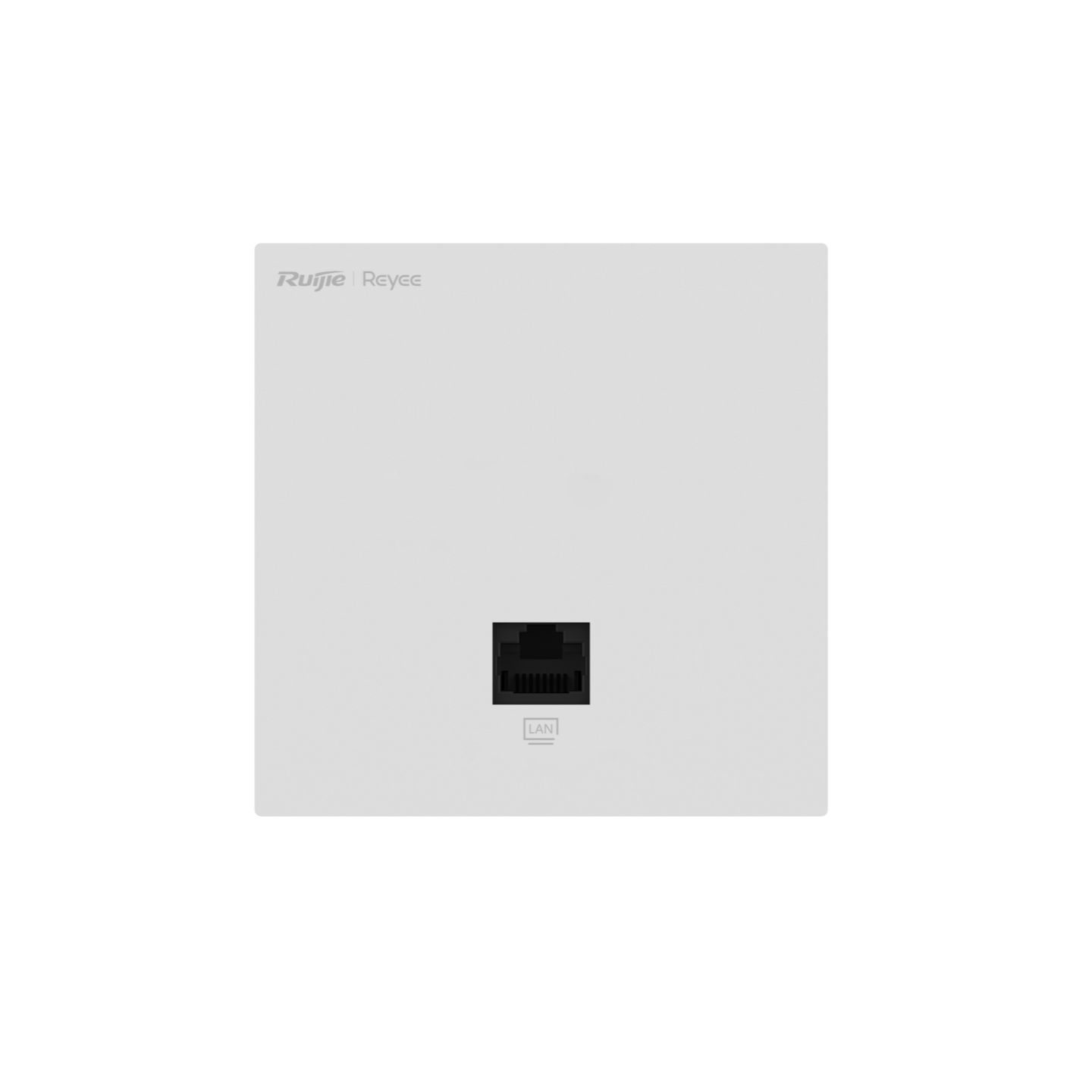

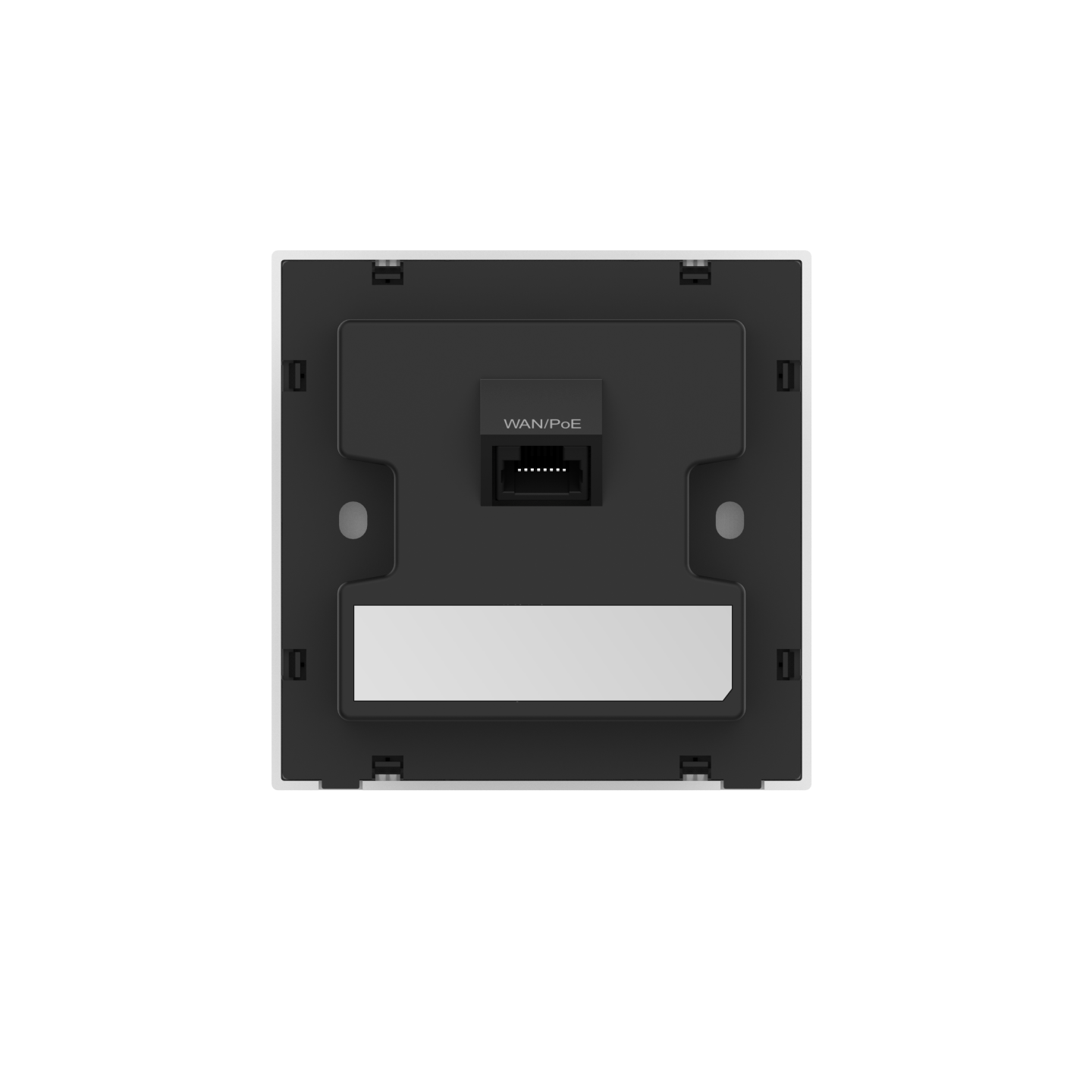

Ruijie Reyee Wi-Fi 5 1267 Mbps Wall-mounted Access Point RG-RAP1201

The Ruijie Reyee RG-RAP1201 is a high-performance, wall-mounted Wi-Fi 5 (802.11ac Wave 2) access point designed to deliver reliable wireless connectivity in environments such as hotels, offices, and homes. With dual-band speeds of up to 1267 Mbps (400 Mbps on 2.4 GHz and 867 Mbps on 5 GHz) and support for 2x2 MU-MIMO technology, it ensures efficient data transmission for multiple devices simultaneously. Its compact 86mm x 86mm form factor allows for easy installation into standard wall plates, and it is powered via 802.3af/at PoE. The device features Ruijie’s Self-Organizing Network (SON) technology for quick setup and free cloud-based management, enabling remote configuration and monitoring. Security is ensured with support for WPA/WPA2 encryption, MAC address filtering, and SSID hiding, making it a reliable choice for scalable wireless deployments.

Quick Specs

Ac1300 Dual Band Wall Access Point, 867Mbps At 5Ghz + 400Mbps At 2.4Ghz, 2 10/100/1000 Base-T Ethernet Port Include 1 Uplink Port

Key Features

• Dual-band 802.11ac Wave 2 with 2x2 MU-MIMO

• Up to 1267 Mbps combined wireless throughput

• Compact 86mm x 86mm wall-mount design

• Powered via 802.3af/at PoE

• Two Gigabit Ethernet ports

• Supports up to 110 clients and 8 SSIDs

• Free Ruijie Cloud and mobile app management

• One-click Wi-Fi Intelligent Optimization (WIO)

• Layer 2/3 roaming and VLAN support

• Security: WPA/WPA2 encryption, MAC filtering, SSID hiding

• Power consumption under 9W

Downloads

• View Datasheet
