Ruijie Reyee Wi-Fi 5 1267Mbps Wall-mounted Access Point RG-RAP1200(F)

The Ruijie Reyee RG-RAP1200(F) is a compact, wall-mounted Wi-Fi 5 (802.11ac Wave2) access point designed for seamless wireless coverage in environments like hotels, offices, and homes. It delivers combined speeds up to 1267 Mbps (400 Mbps on 2.4 GHz and 867 Mbps on 5 GHz) and supports 2x2 MU-MIMO for efficient multi-user performance. Its 86mm x 86mm form factor allows easy installation into standard wall plates, and it is powered via 802.3af PoE. The device features Ruijie’s Self-Organizing Network (SON) technology for quick setup and free cloud-based management, enabling remote configuration and monitoring. Security is ensured with support for WPA/WPA2 encryption and Layer 2/3 roaming, making it a reliable choice for scalable wireless deployments.

Quick Specs

Ac1300 Dual Band Wall Access Point, 867Mbps At 5Ghz + 400Mbps At 2.4Ghz, 2 10/100Base-T Ethernet Port Include 1 Uplink Port

Key Features

• Dual-band 802.11ac Wave2 with MU-MIMO (2x2)

• Up to 1267 Mbps combined throughput

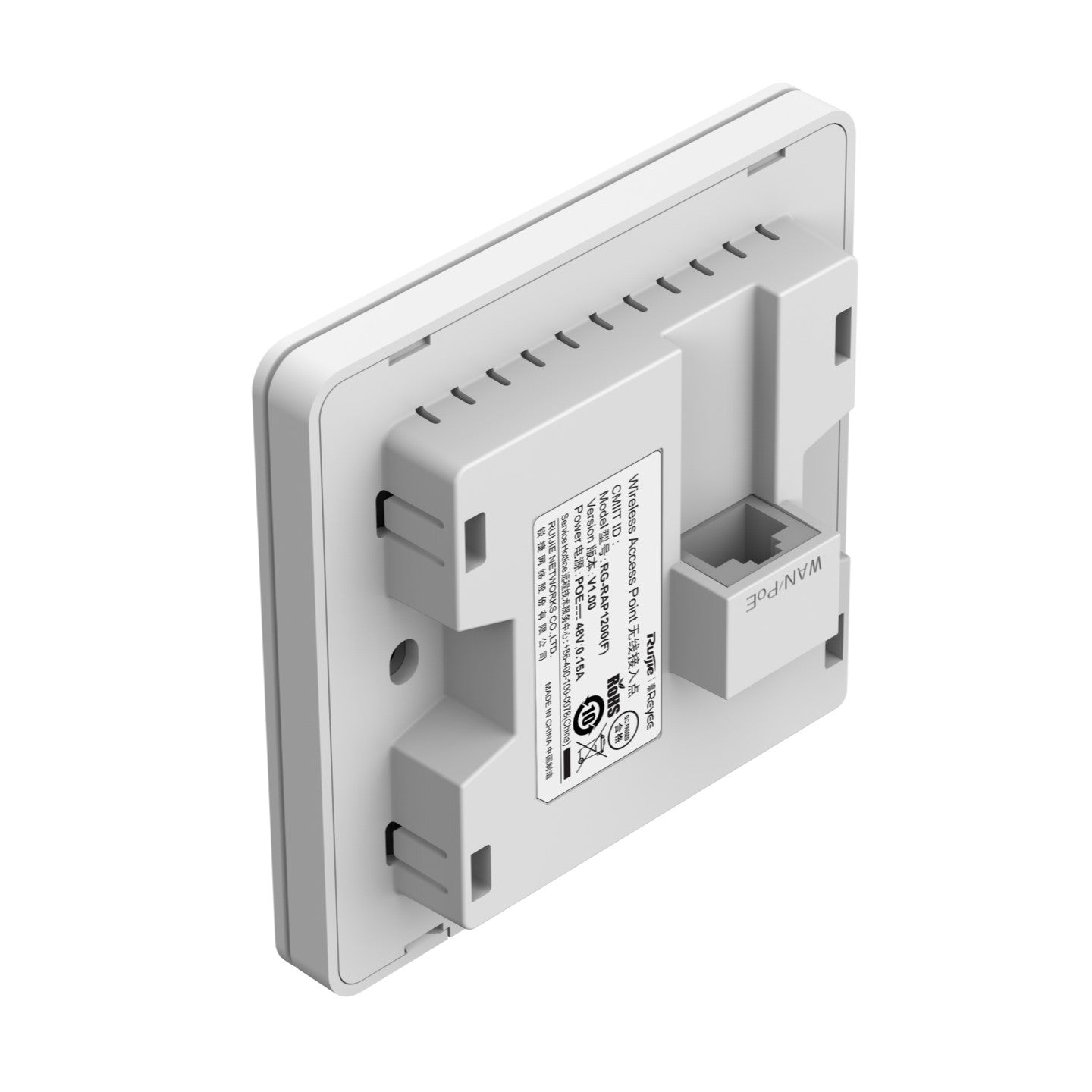

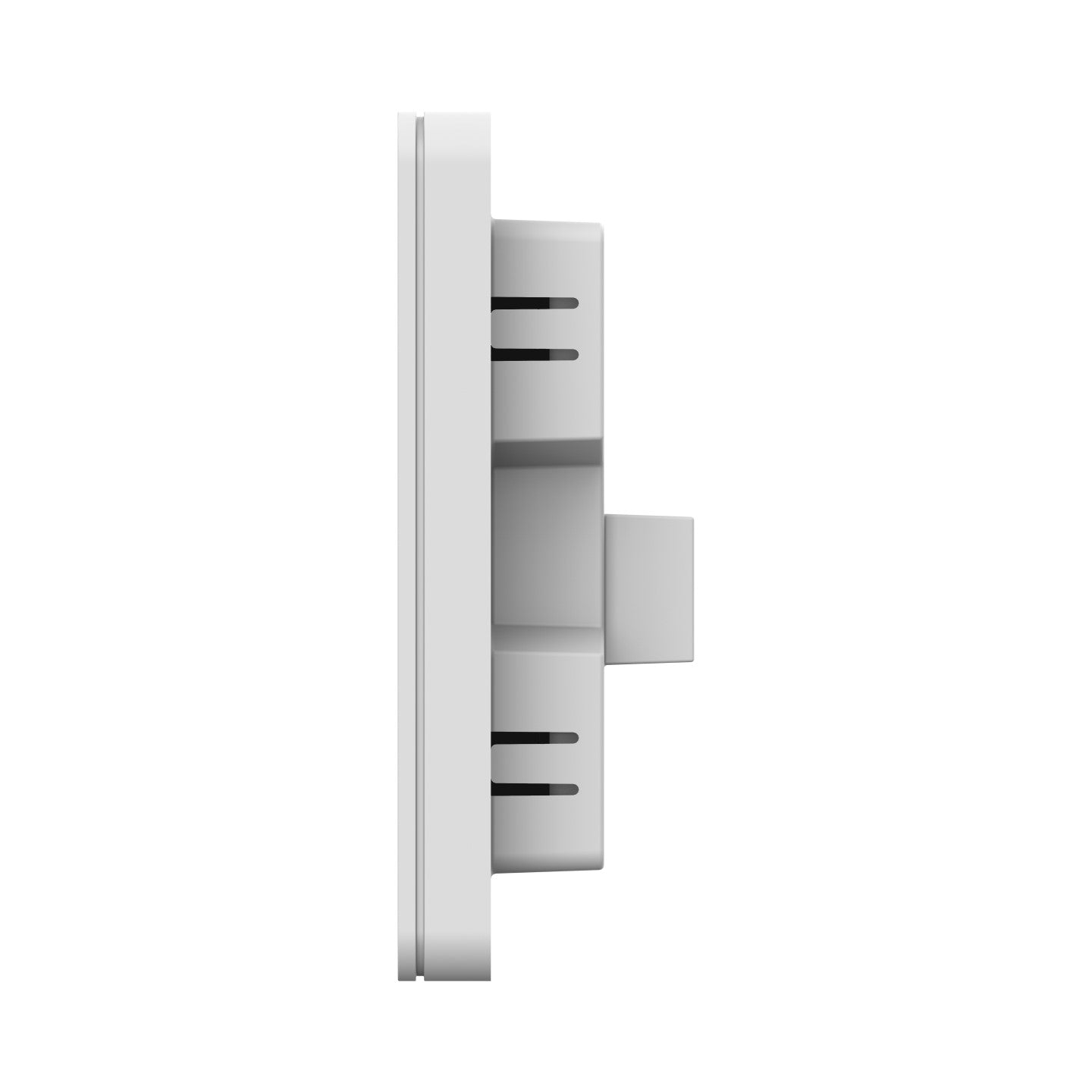

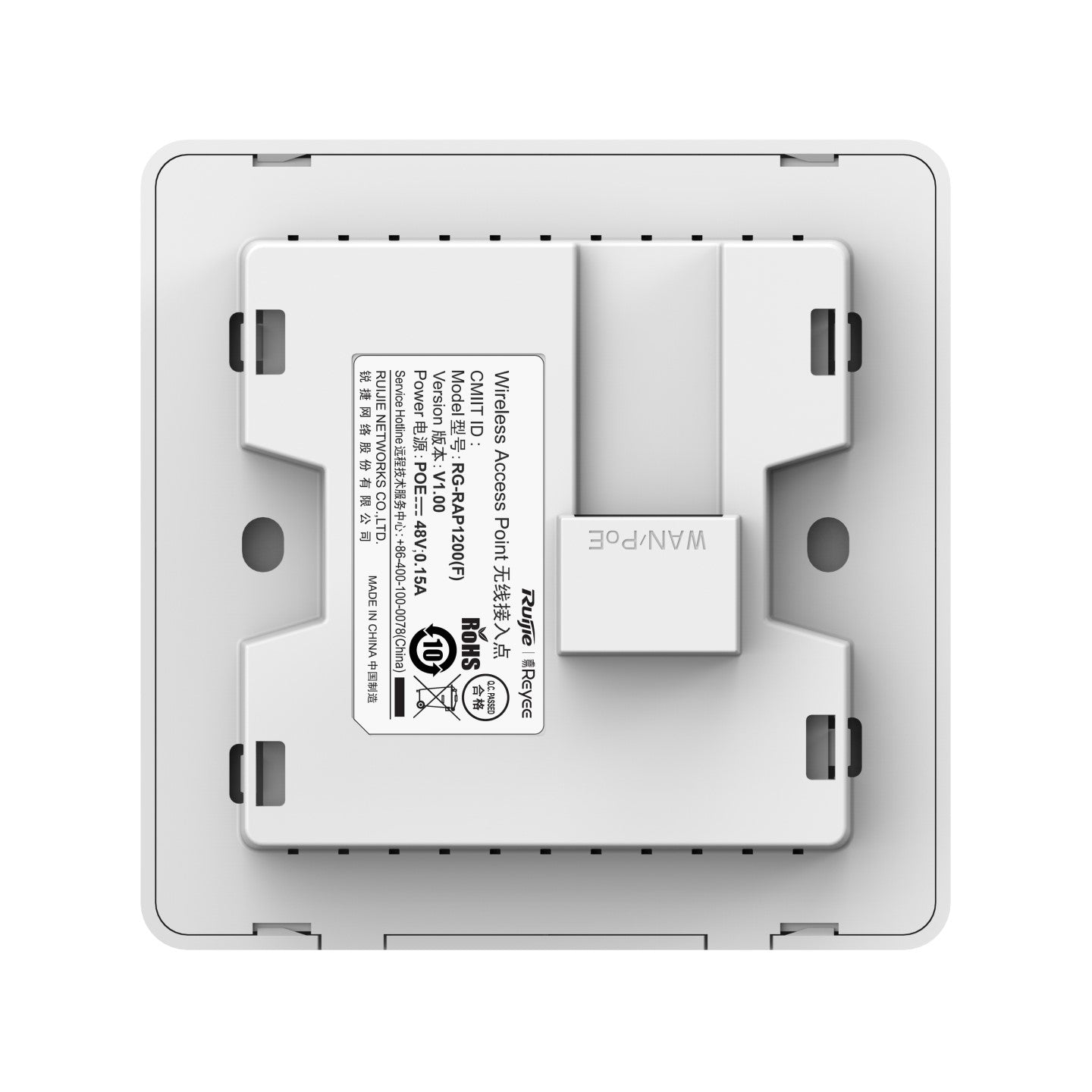

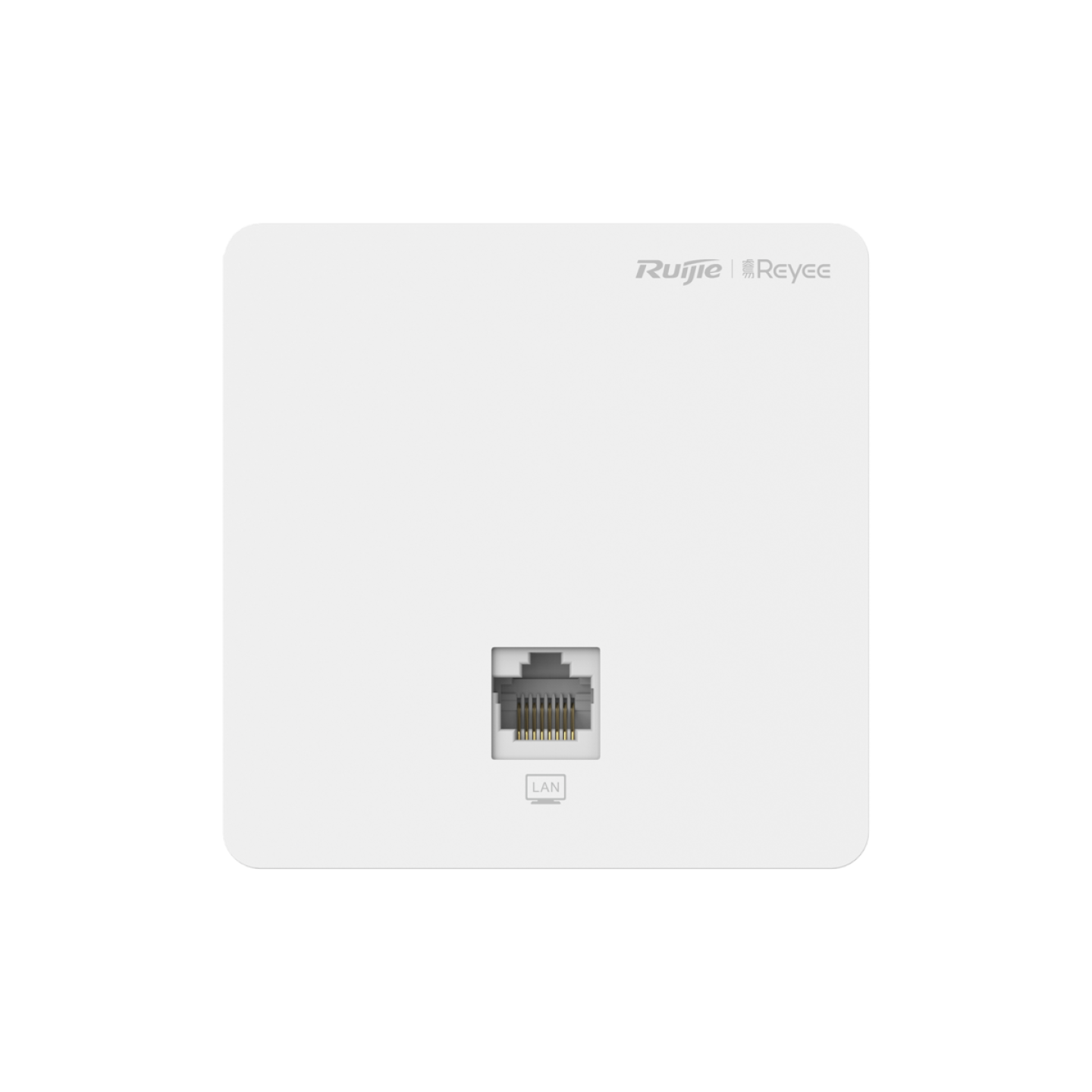

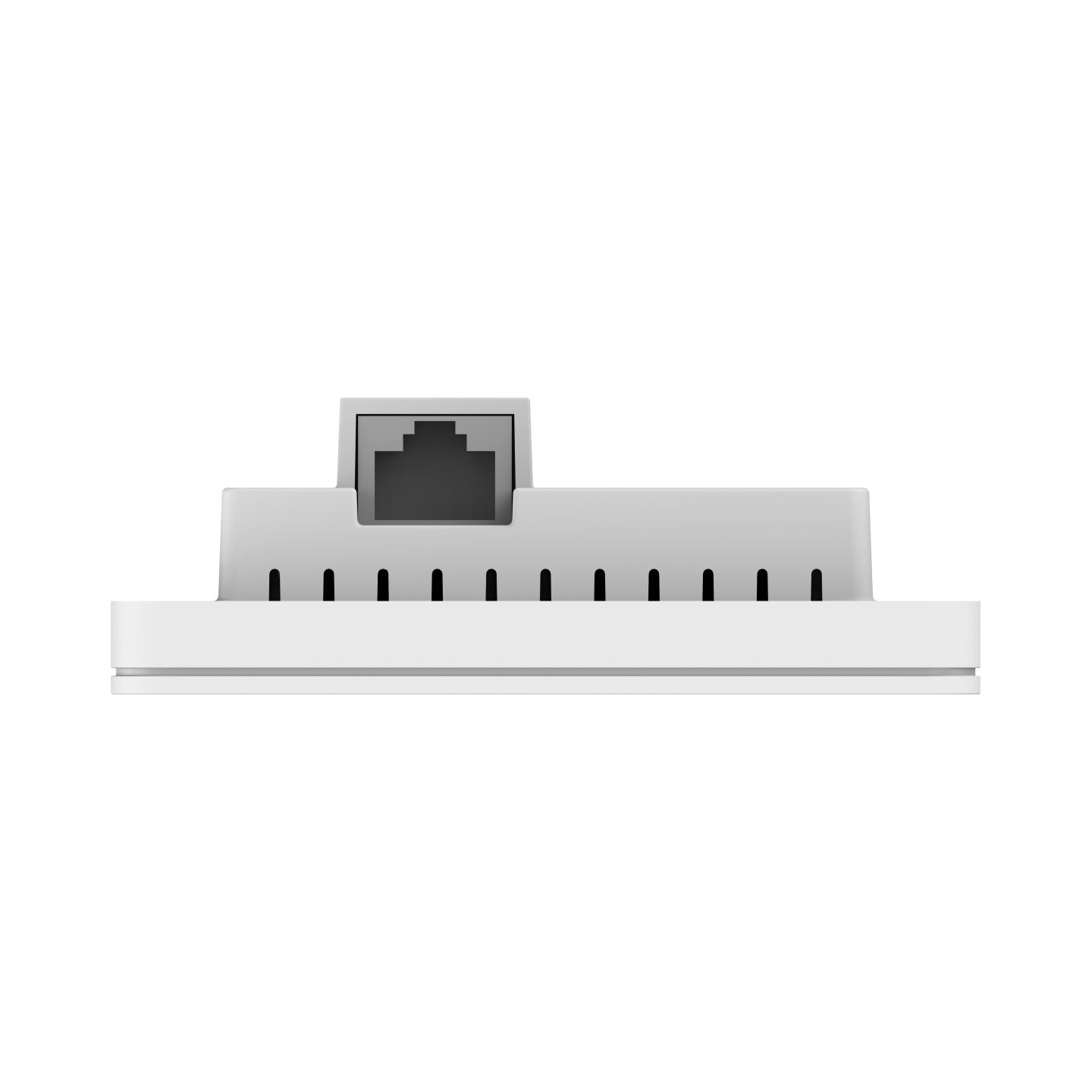

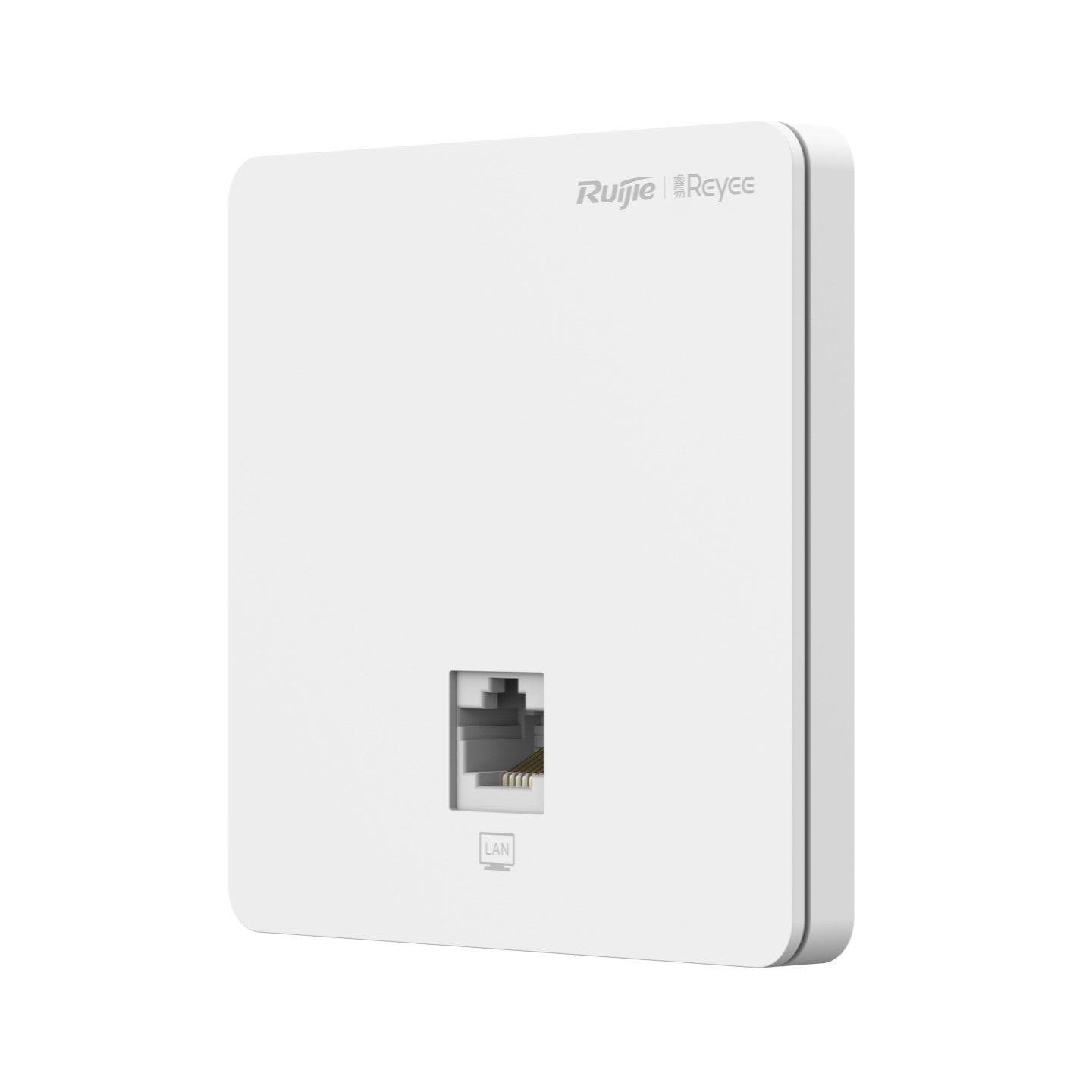

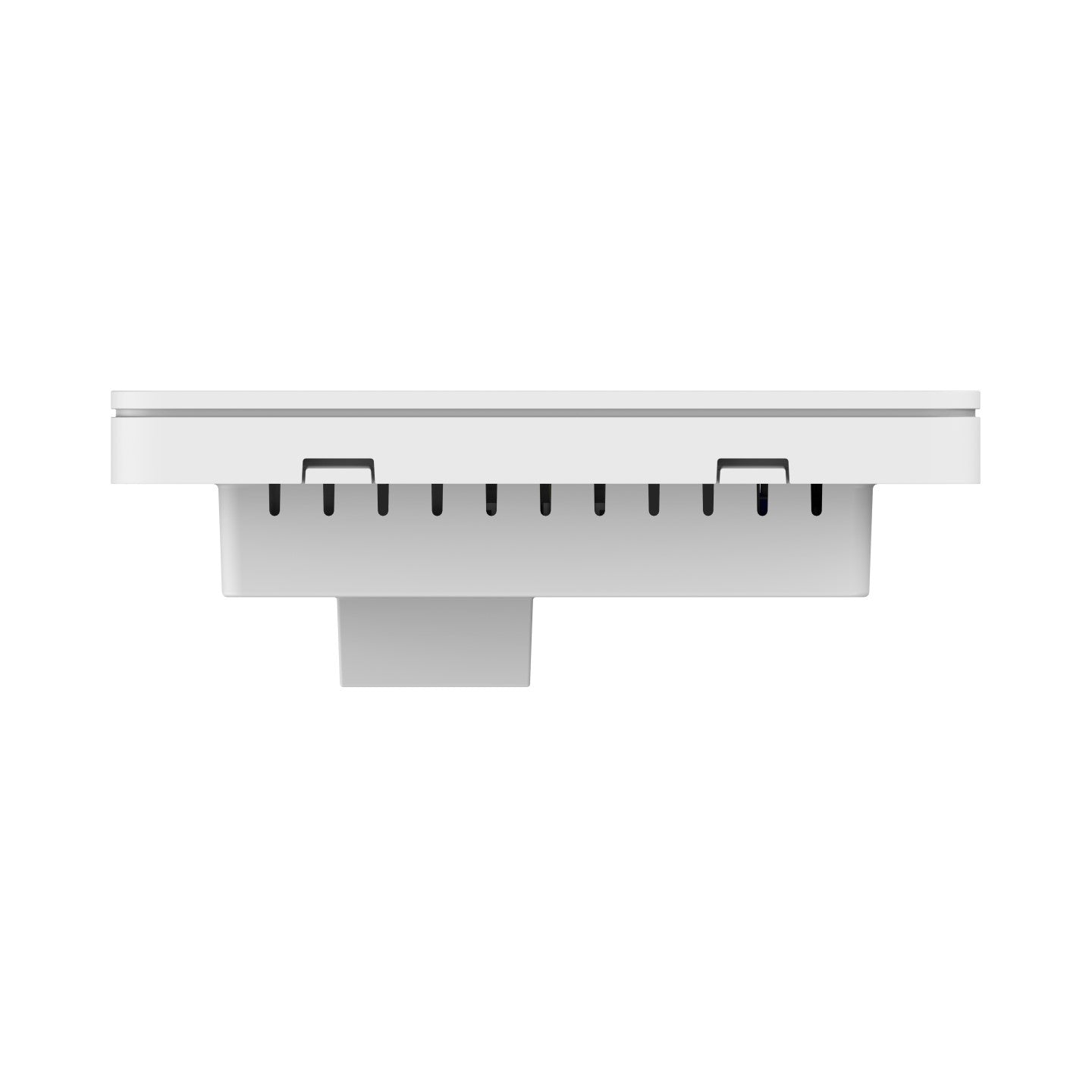

• Compact 86mm x 86mm wall-mount design

• Powered via 802.3af PoE

• Supports up to 8 SSIDs and 110 clients

• Free cloud and mobile app management

• One-click Wi-Fi optimization (WIO)

• Layer 2/3 roaming and VLAN support

• Security: WPA/WPA2, MAC filtering, SSID hiding

• Power consumption under 8W

Downloads

• View Datasheet
