Ruijie Reyee Wi-Fi 5 1267Mbps Wall-mounted Access Point RG-RAP1200(P)

The Ruijie Reyee RG-RAP1200(P) is a wall-mounted Wi-Fi 5 (802.11ac Wave2) access point built for high-performance wireless networking in hospitality, residential, and enterprise environments. With dual-band speeds reaching up to 1267 Mbps (400 Mbps at 2.4 GHz and 867 Mbps at 5 GHz), it supports 2x2 MU-MIMO for seamless multi-user communication. The device integrates five Gigabit Ethernet ports, including PoE passthrough, making it ideal for connecting IP phones, IPTV boxes, or other wired endpoints. It fits into a standard 86mm wall box and is powered via 802.3af/at PoE. With Ruijie’s Self-Organizing Network (SON) and free cloud-based management, users benefit from simplified deployment, remote monitoring, and centralized configuration. Layer 2/3 roaming, VLANs, and WPA/WPA2 encryption ensure a secure and scalable wireless experience.

Quick Specs

Ac1300 Dual Band Gigabit Wall Plate Ap, 4 Front Lan Ports, Including 1 Standard 802.3Af Poe Out Port, Built-In Antennas, 1 Gigabit

Key Features

• Dual-band 802.11ac Wave2 with 2x2 MU-MIMO

• Up to 1267 Mbps combined wireless throughput

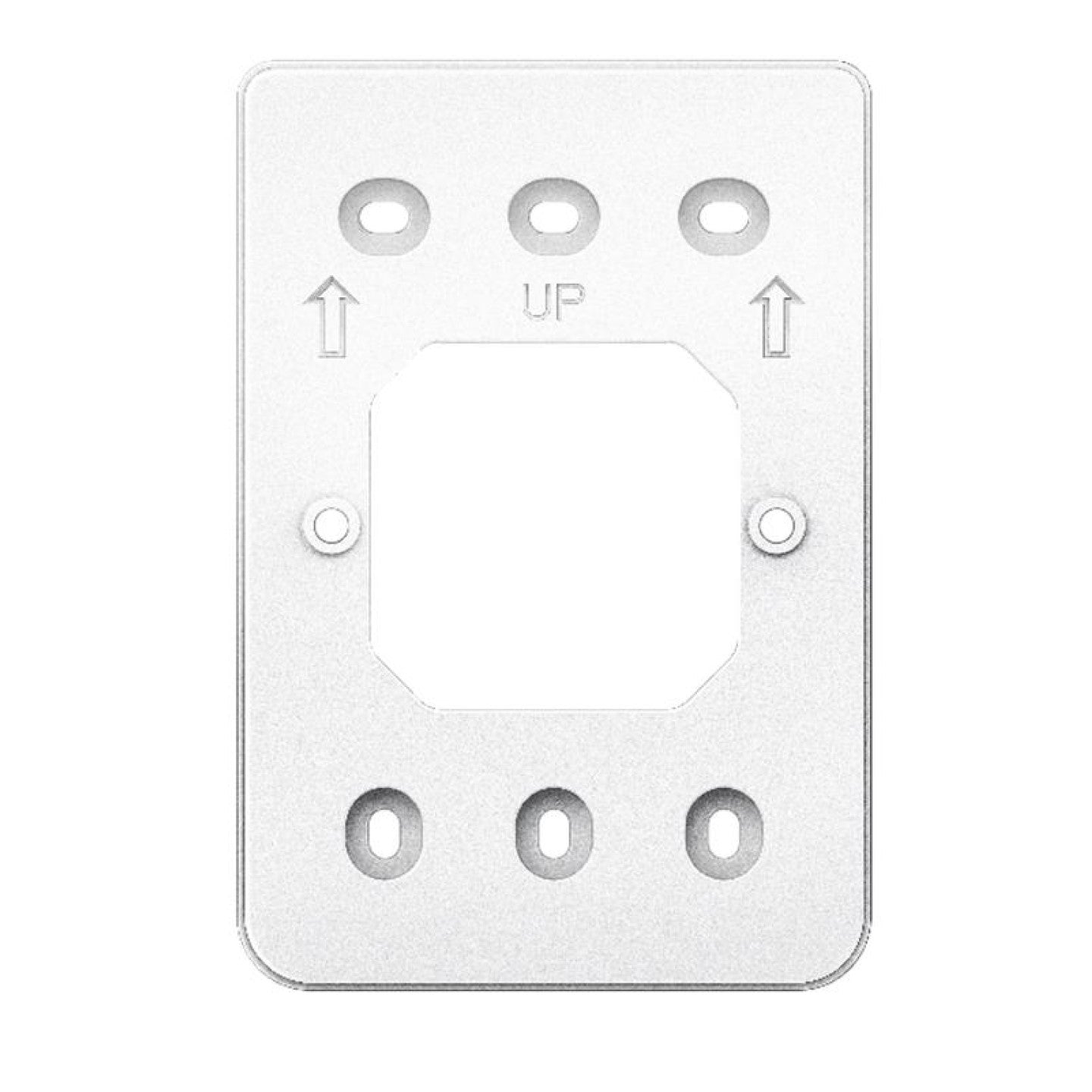

• Wall-mounted 86mm faceplate design (126 × 86 × 50 mm)

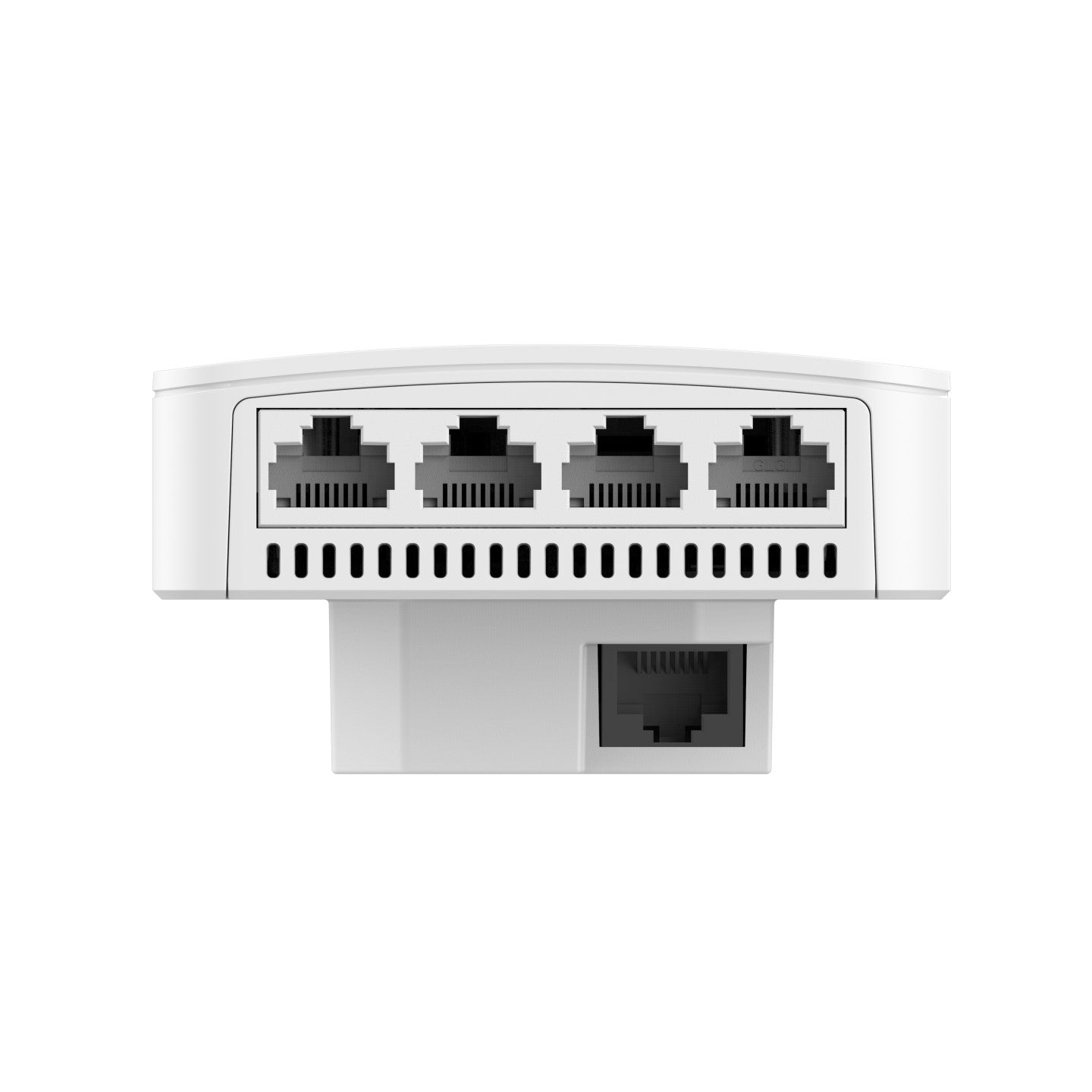

• 5 Gigabit ports (4 front, 1 rear) with PoE passthrough

• 802.3af/at PoE powered

• Supports up to 110 clients and 8 SSIDs

• Free Ruijie Cloud and mobile app management

• Self-Organizing Network (SON) for plug-and-play setup

• One-click Wi-Fi Intelligent Optimization (WIO)

• Layer 2/3 roaming and VLAN support

• Security: WPA/WPA2 encryption, SSID hiding, MAC filtering

• Low power consumption (<13W)

Downloads

• View Datasheet
