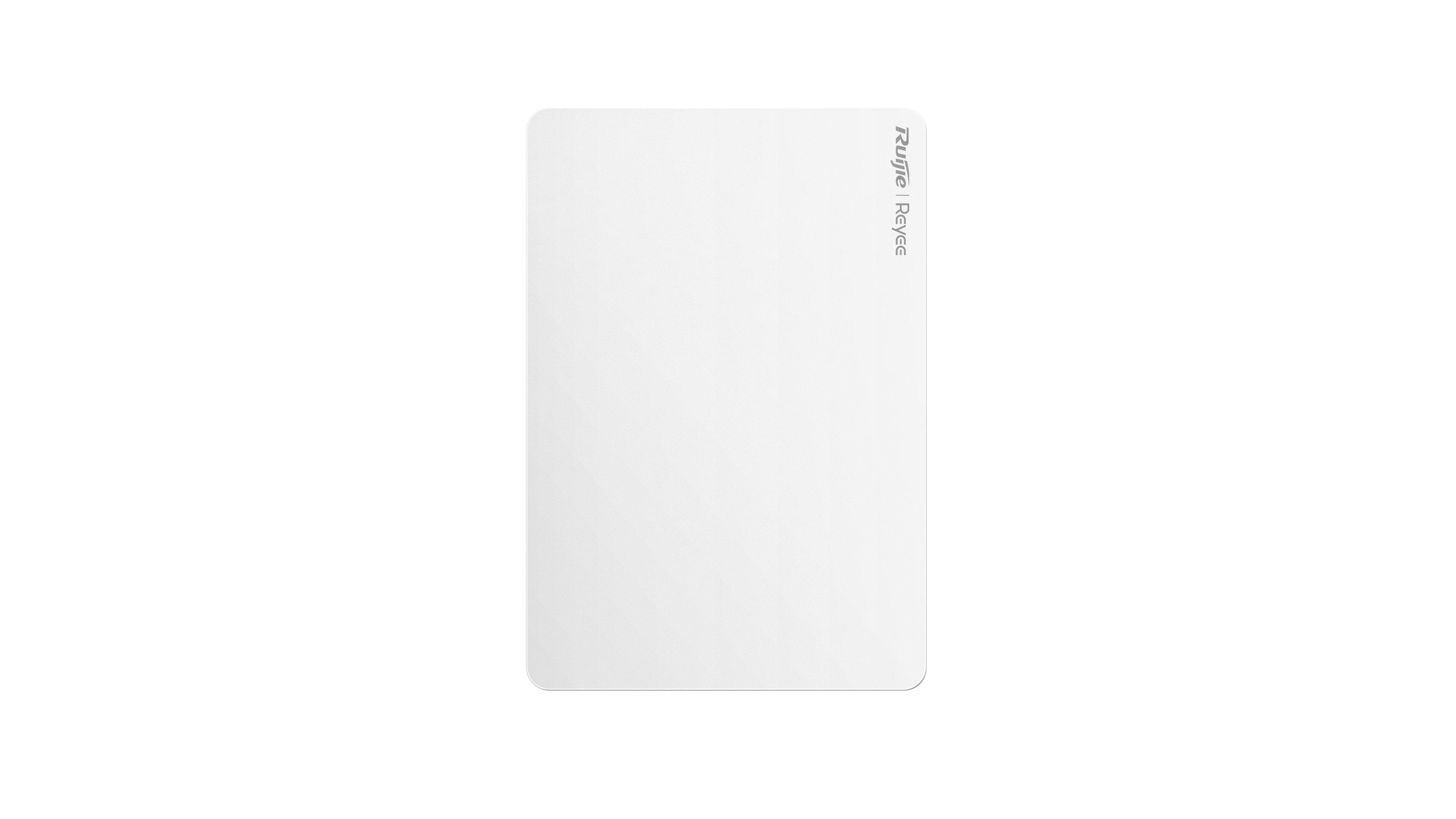

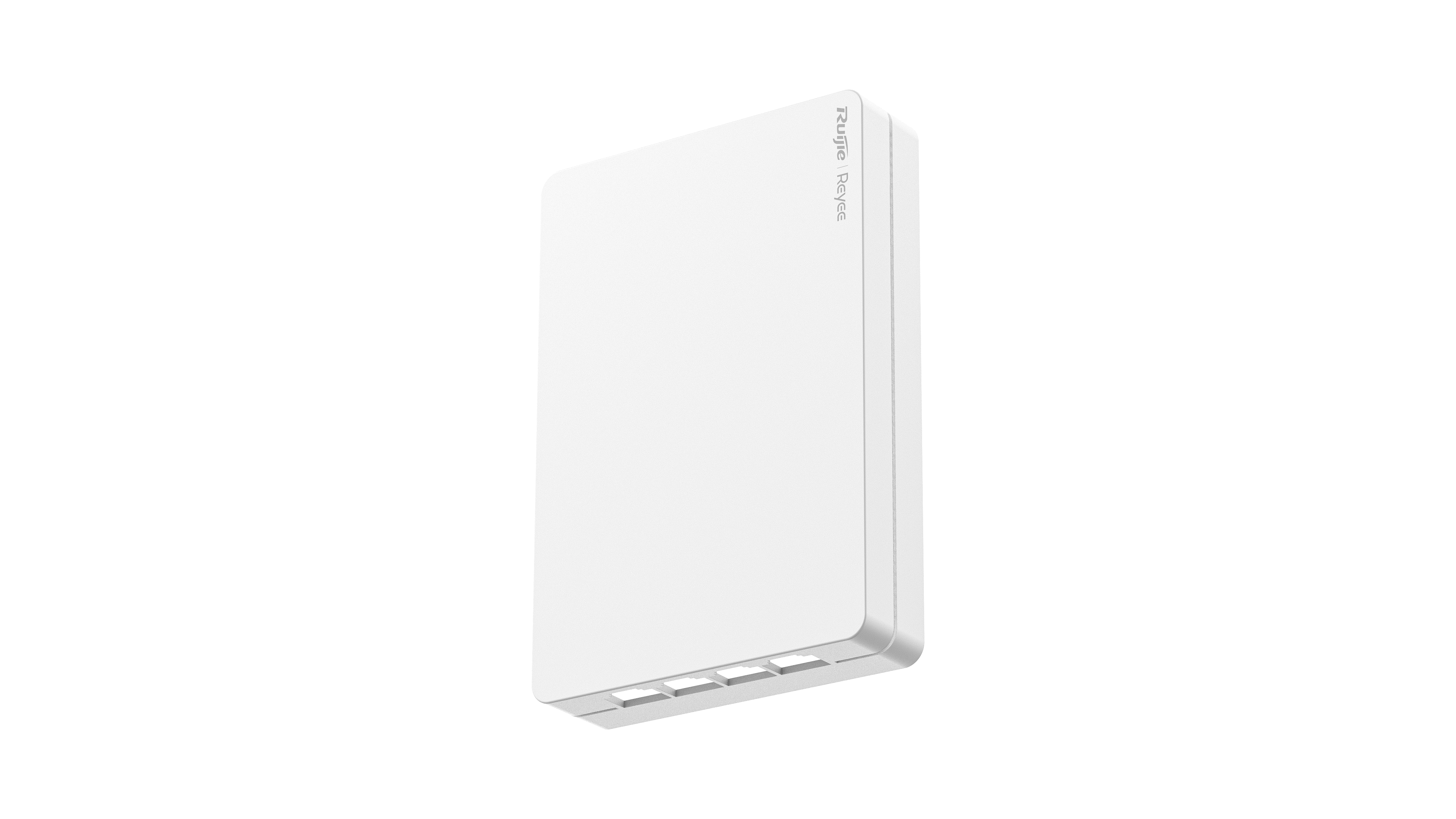

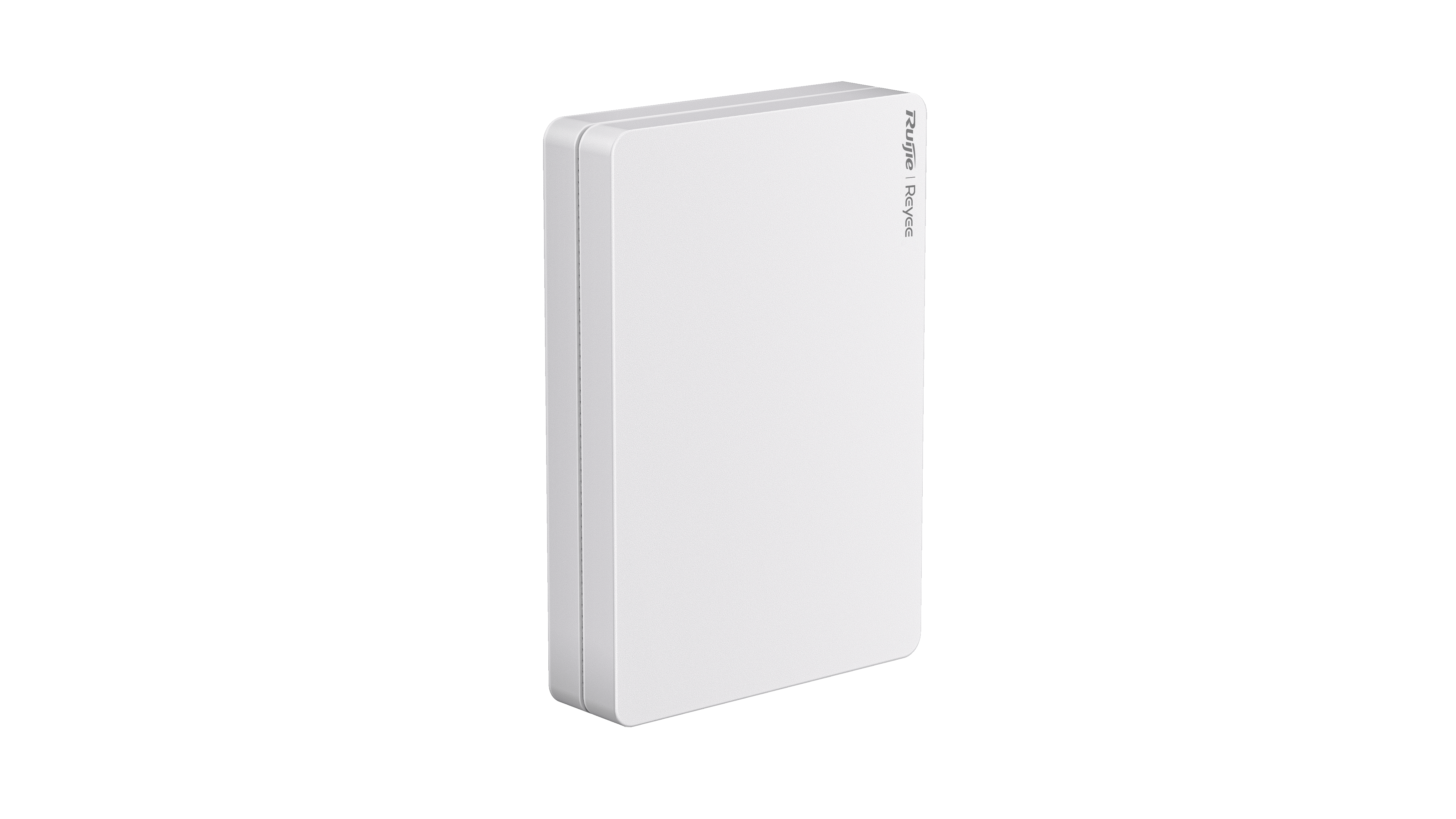

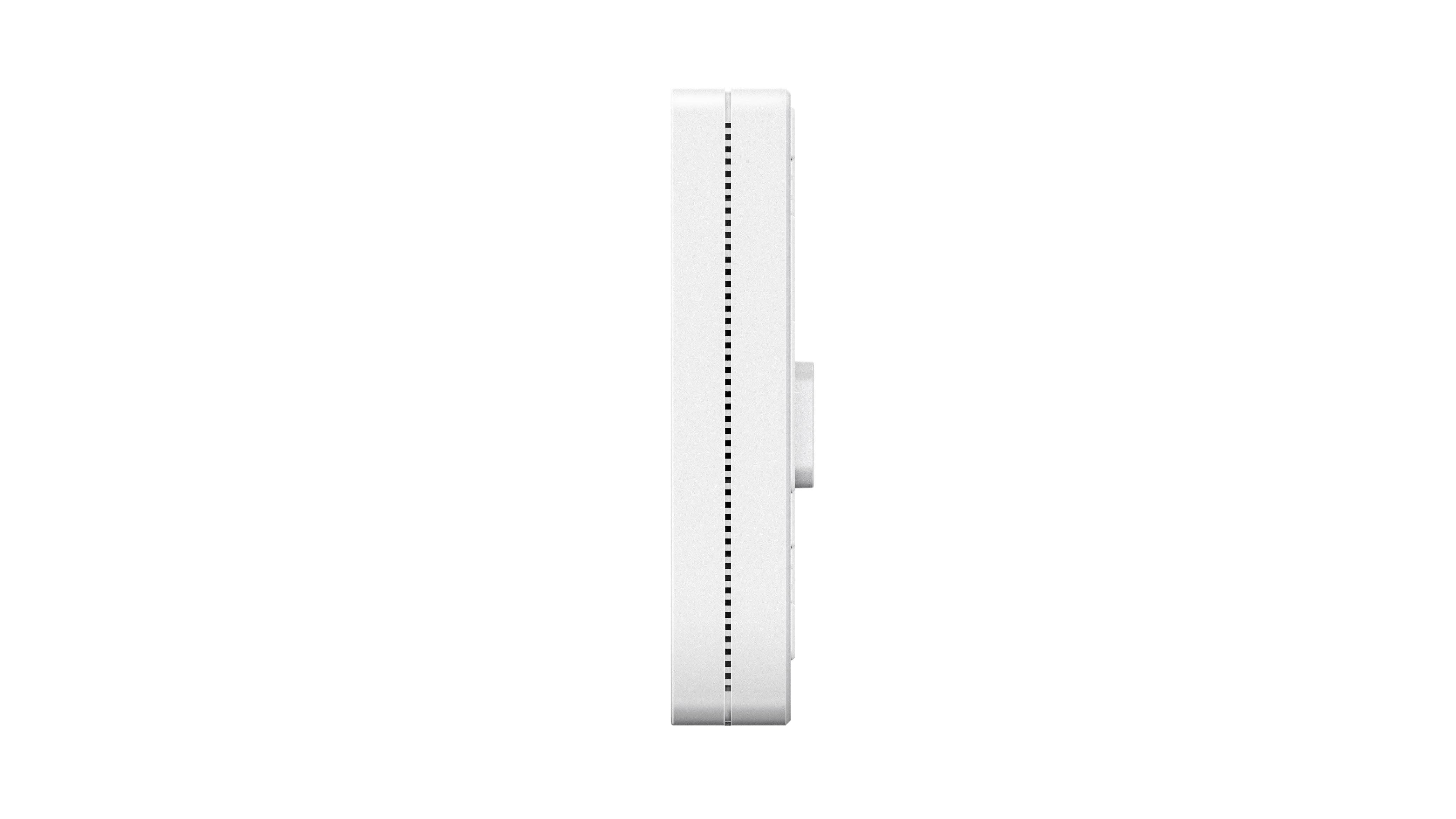

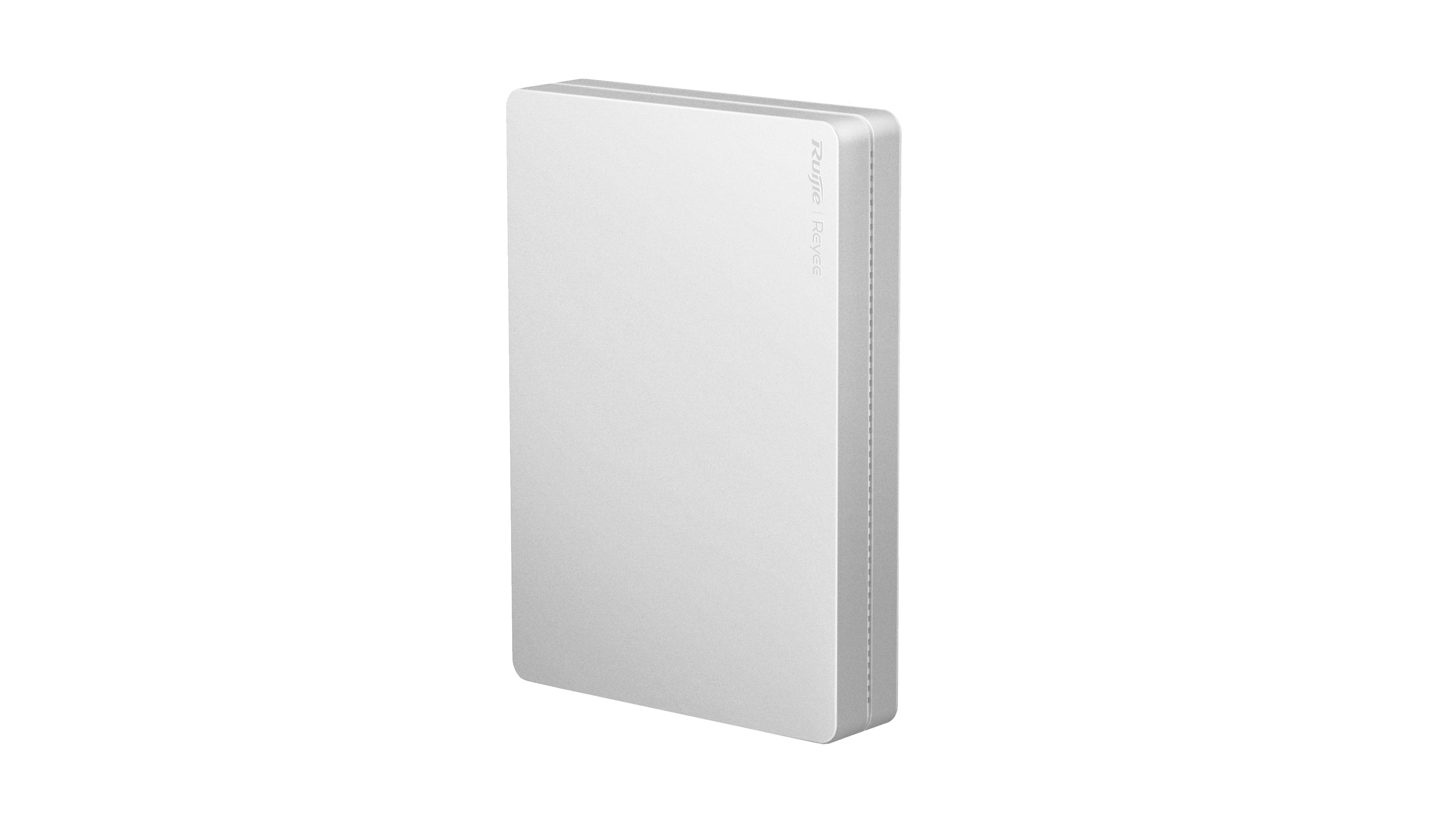

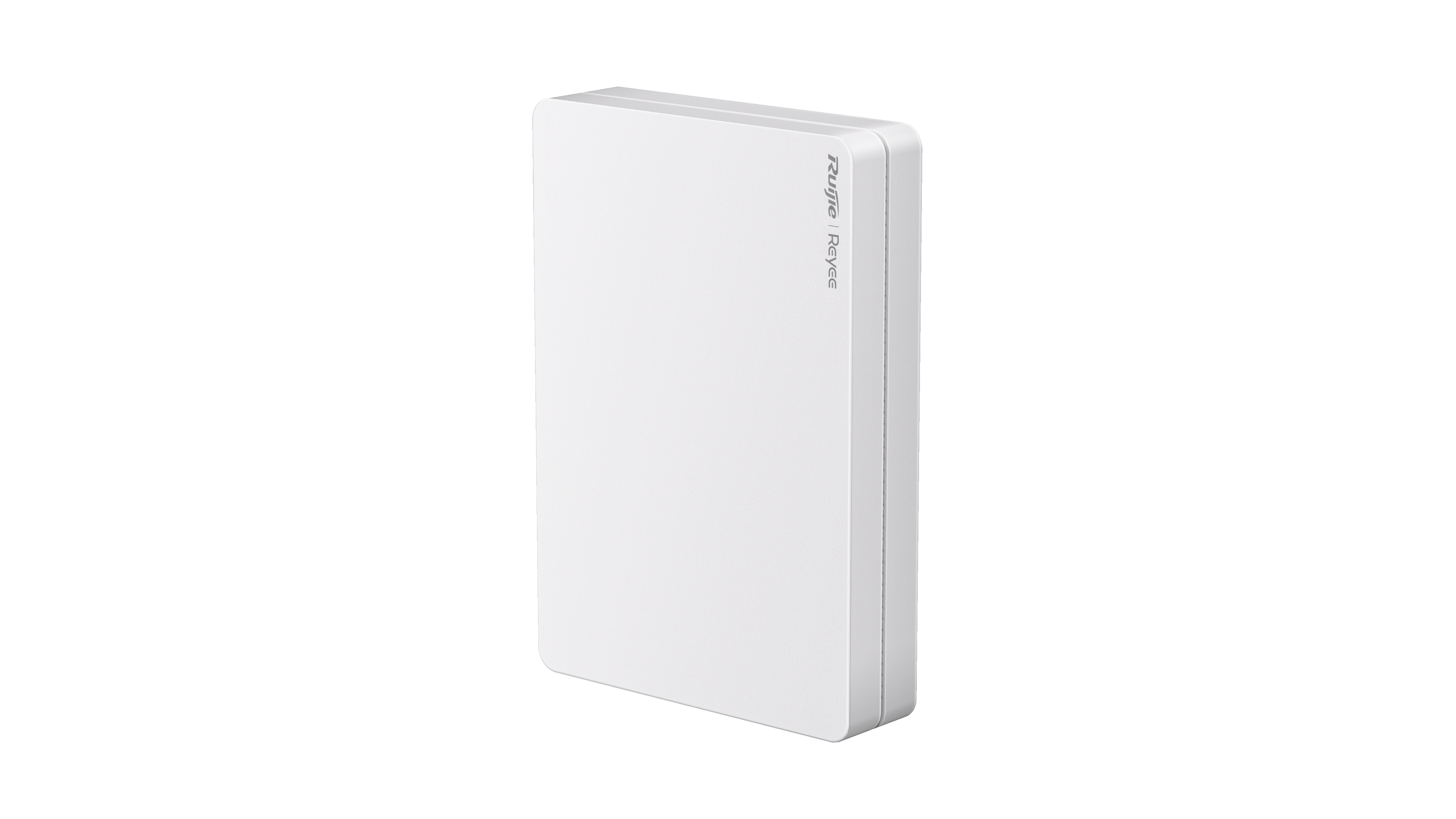

Ruijie Reyee Wi-Fi 6 AX3000 Dual-Band Wall Plate Access Point RG-RAP1260

The Ruijie Reyee RG-RAP1260 is a high-performance, wall-mounted Wi-Fi 6 (802.11ax) access point designed to deliver robust wireless connectivity in environments such as hotels, offices, and homes. With dual-band speeds of up to 2976 Mbps (574 Mbps on 2.4 GHz and 2402 Mbps on 5 GHz) and support for 2x2 MU-MIMO technology, it ensures efficient data transmission for multiple devices simultaneously. Its compact 124mm x 86mm x 24mm form factor allows for easy installation into standard wall plates, and it is powered via 802.3af/at PoE. The device features Ruijie’s Self-Organizing Network (SON) technology and supports Reyee Mesh, enabling quick setup and free cloud-based management for remote configuration and monitoring. Advanced features like Layer 2/3 roaming, VLAN support, and WPA/WPA2 encryption enhance network security and performance. Additionally, the device includes one Gigabit PoE+ uplink port and four Gigabit downlink ports, providing flexible wired connectivity options. This access point is ideal for users seeking a cost-effective, easy-to-deploy wireless solution with centralized management capabilities.

Quick Specs

Ax3000 Wi-Fi 6 Dual-Band Gigabit In-Wall Ap: Built-In Antennas, 2.4Ghz/5Ghz Dual-Radio, 802.11A/B/G/N/Ac Wave1 /Wave2/Ax

Key Features

• Dual-band Wi-Fi 6 (802.11ax) with 2x2 MU-MIMO

• Up to 2976 Mbps combined wireless throughput

• Compact 124mm x 86mm x 24mm wall-mount design

• Powered via 802.3af/at PoE

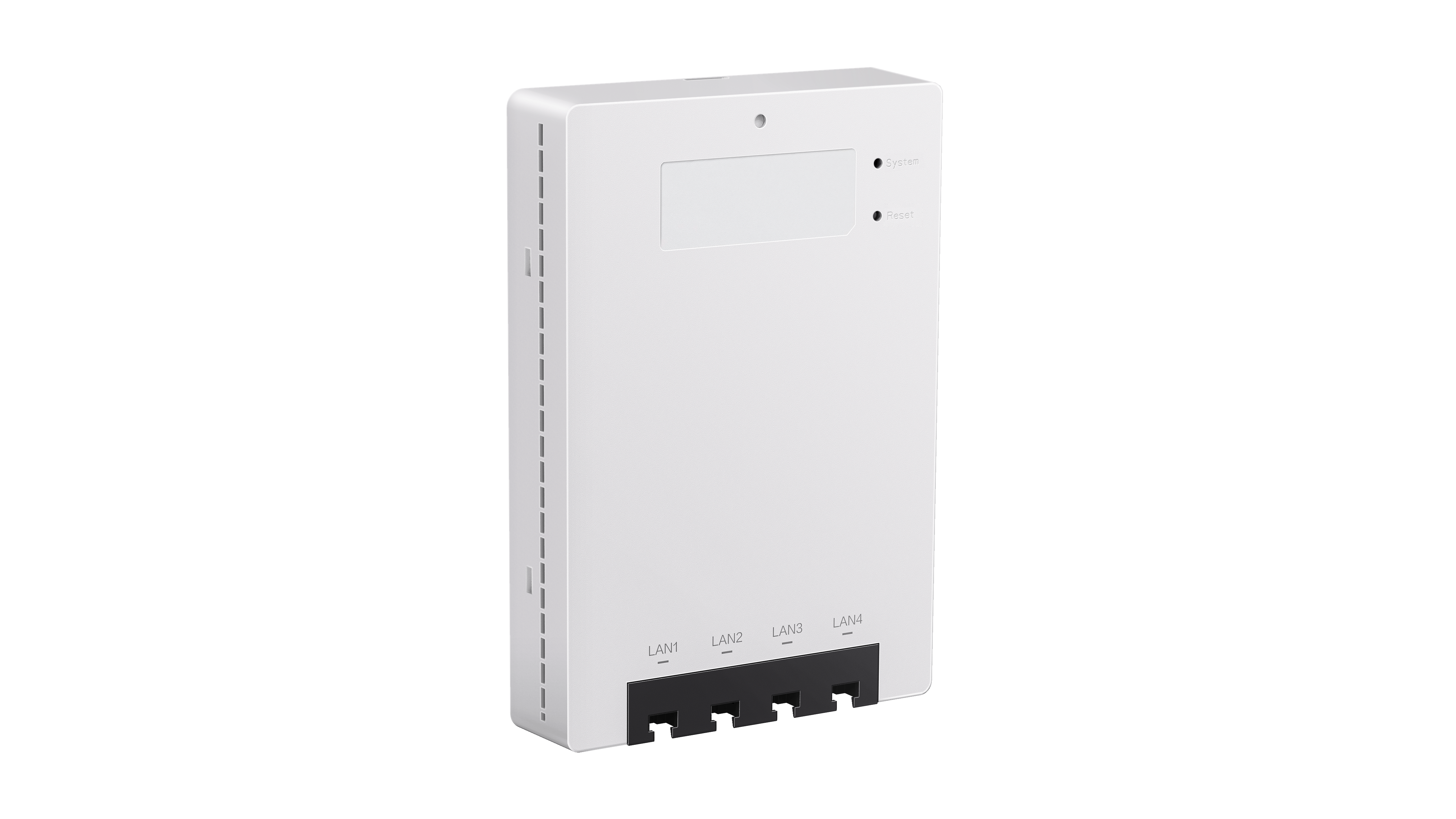

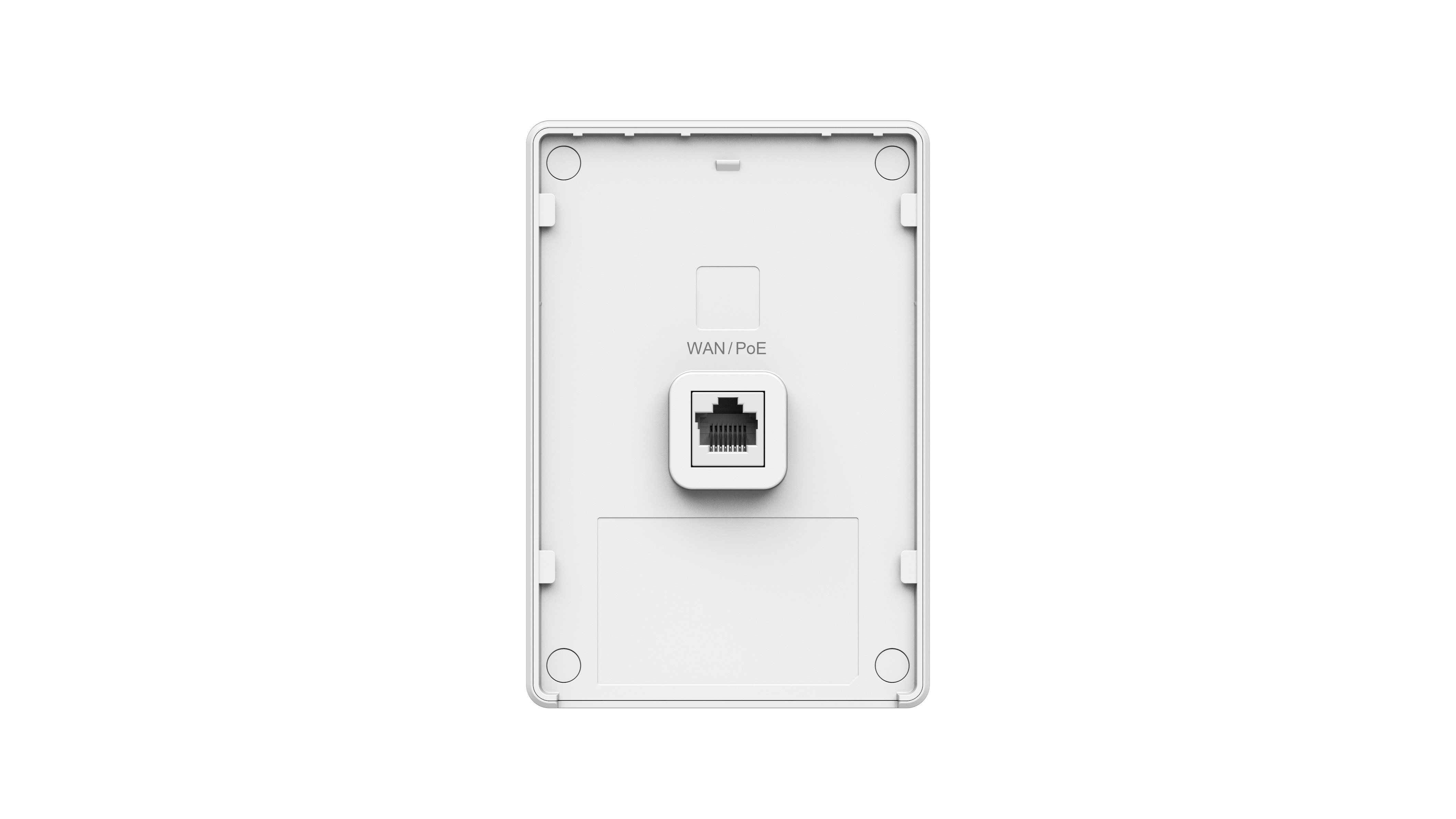

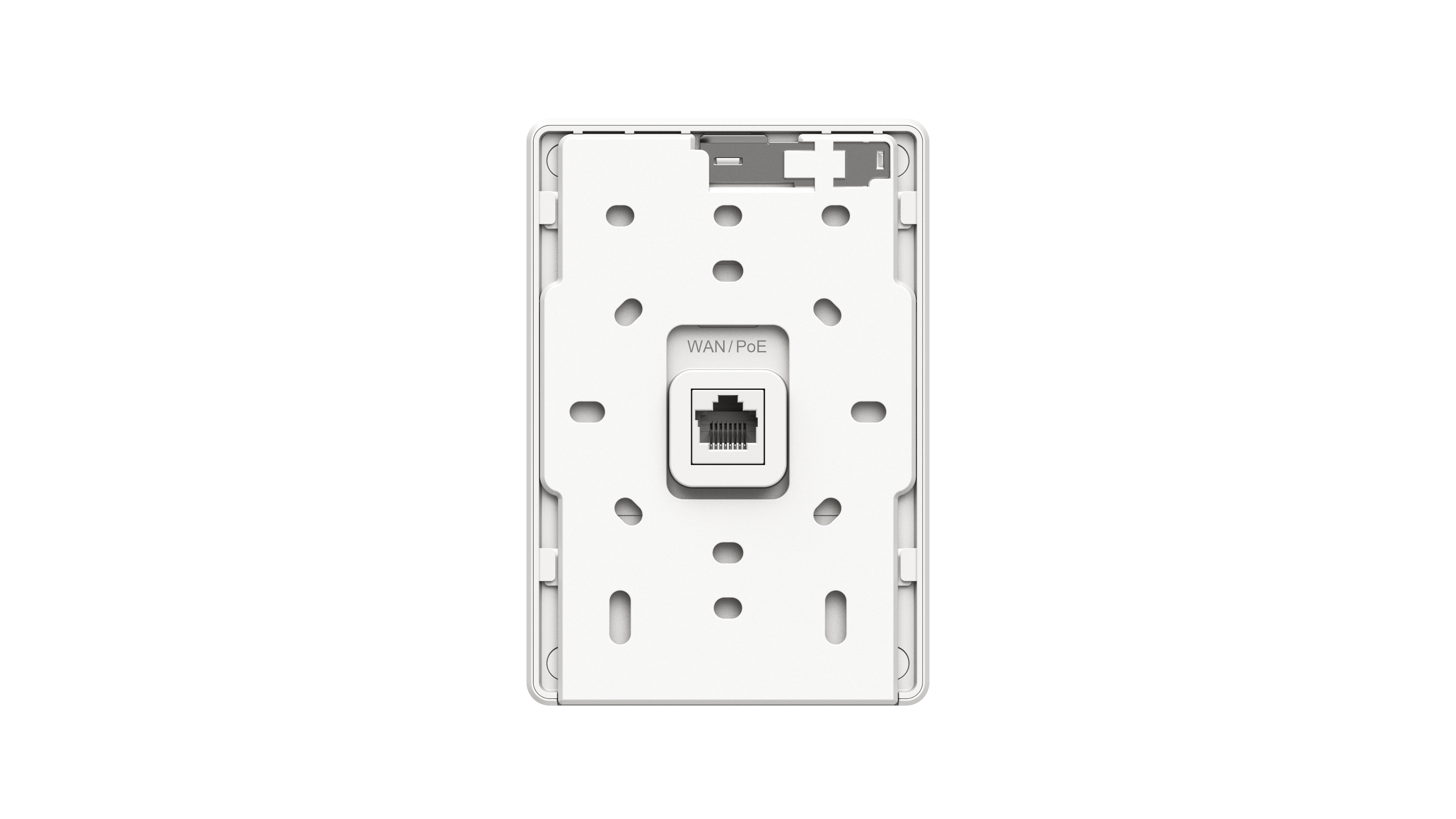

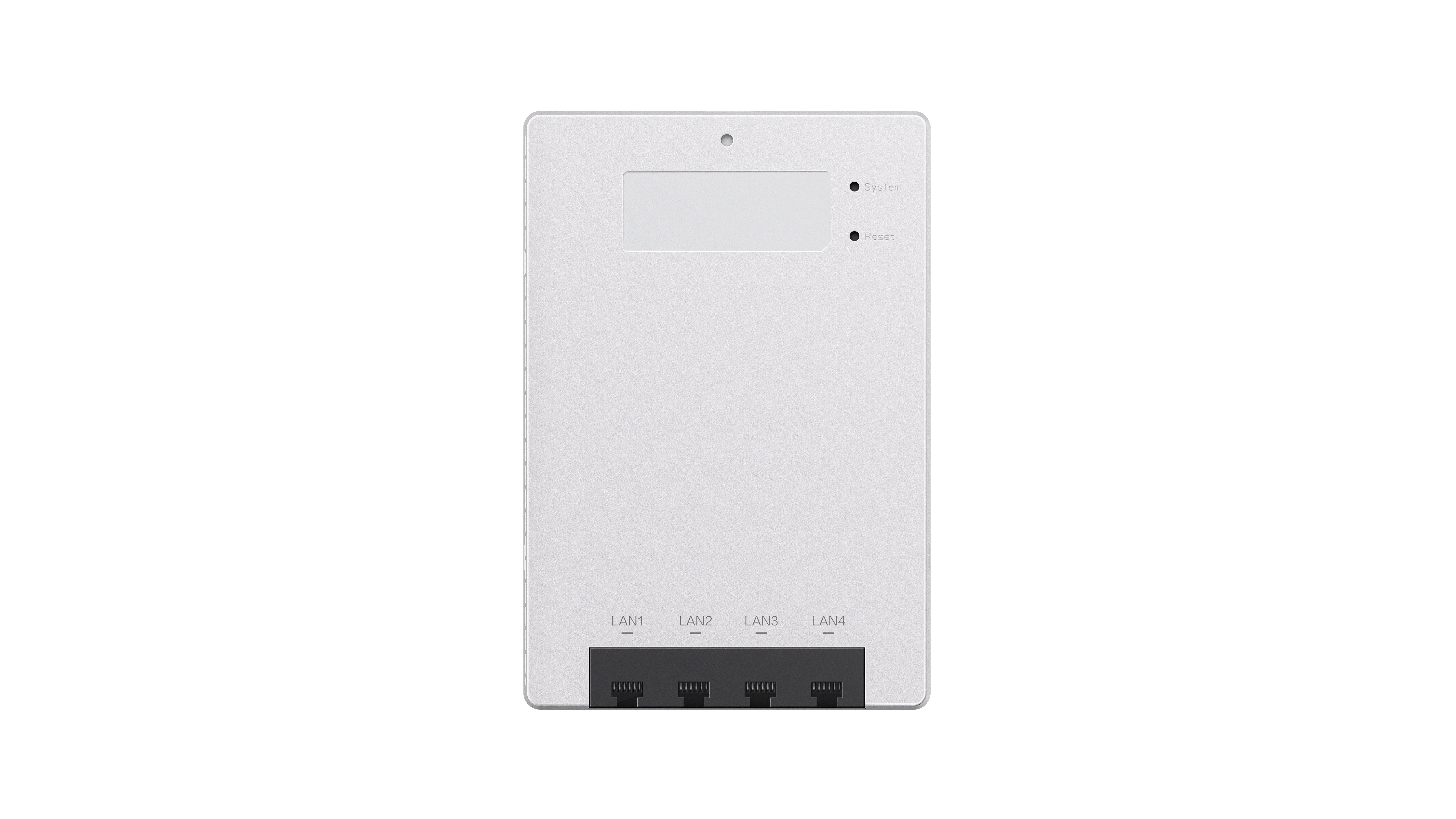

• One Gigabit PoE+ uplink port and four Gigabit downlink ports

• Supports up to 512 clients (110 recommended) and 8 SSIDs

• Free Ruijie Cloud and mobile app management

• Self-Organizing Network (SON) and Reyee Mesh support

• One-click Wi-Fi Intelligent Optimization (WIO)

• Layer 2/3 roaming and VLAN support

• Security: WPA/WPA2 encryption, MAC filtering, SSID hiding

• Power consumption under 12W

• Operating temperature: 0°C to 40°C

• CE and ROHS certified

Downloads

• View Datasheet
