Takex Wired Standalone Vape Sensor VS-1000E
SKU:
VS-1000E
- $636inc. GST
- $636inc. GST
- Unit price
- per
10 customers are viewing this product
Please hurry! Only 20 left in stock
Typically shipped within 1 - 3 business days
Free standard shipping on orders over $200
Back-to-base Australian warranty
Free tech support
14-day return policy

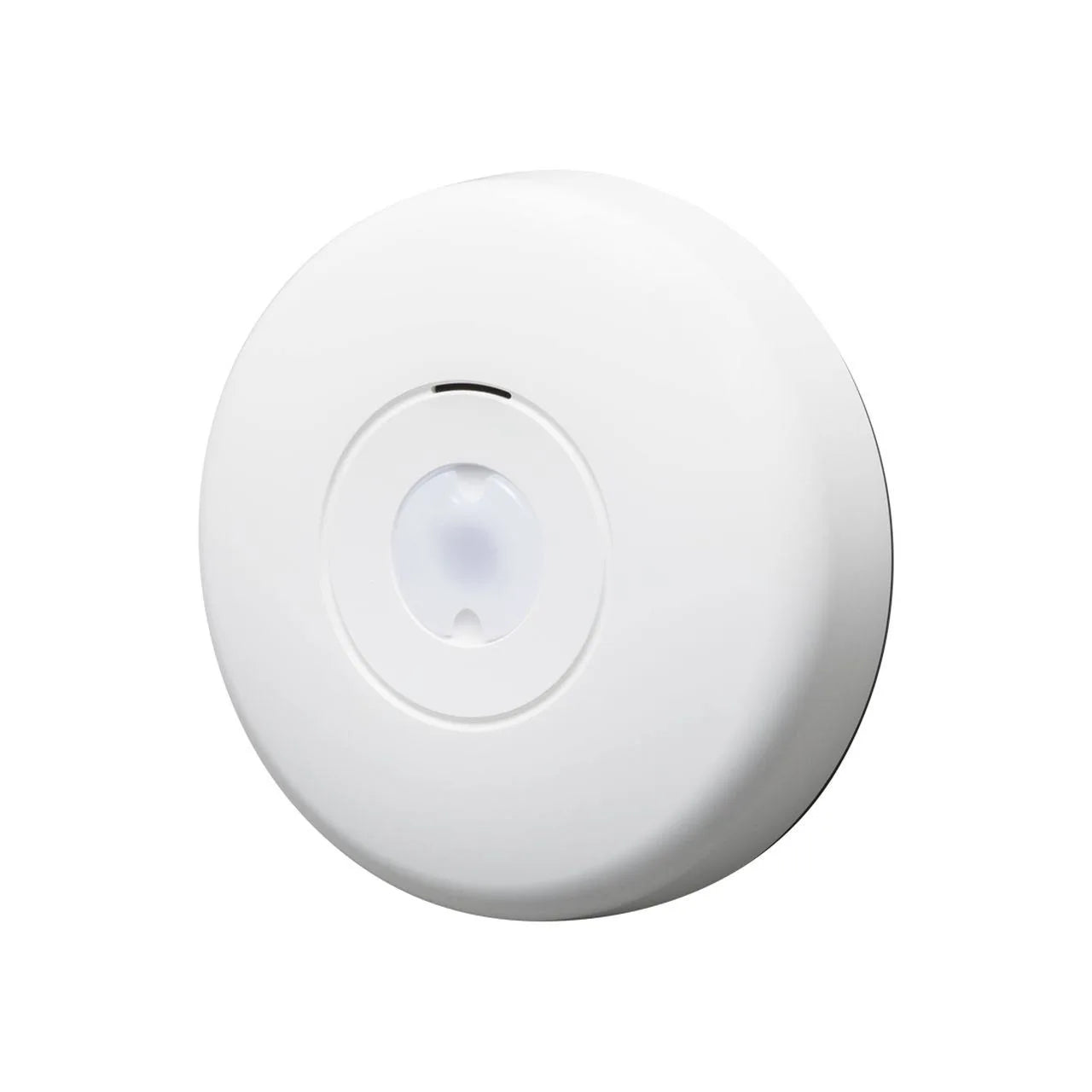

The Takex VS-1000E is a wired standalone vape and smoke detector engineered for discreet, reliable detection in restrooms, change rooms, and similar enclosed spaces. Designed to combat the growing problem of teenage vaping on school grounds and other similar environments, it integrates seamlessly into existing security and access control systems with selectable alarm contacts and adjustable sensitivity.
This product is NOT Fire Alarm equipment such as Fire/Smoke detectors.
Key Features
- Detects vaping and smoking in restrooms and similar areas
- Adjustable detection sensitivity (Standard or Low)
- Selectable alarm contact output (N.C. or N.O.)
- Enable/disable LED indicator

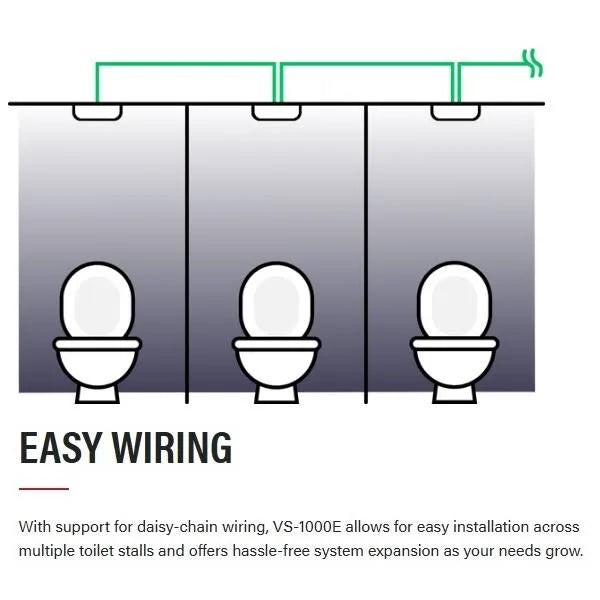

- Dedicated terminal for interconnecting multiple units

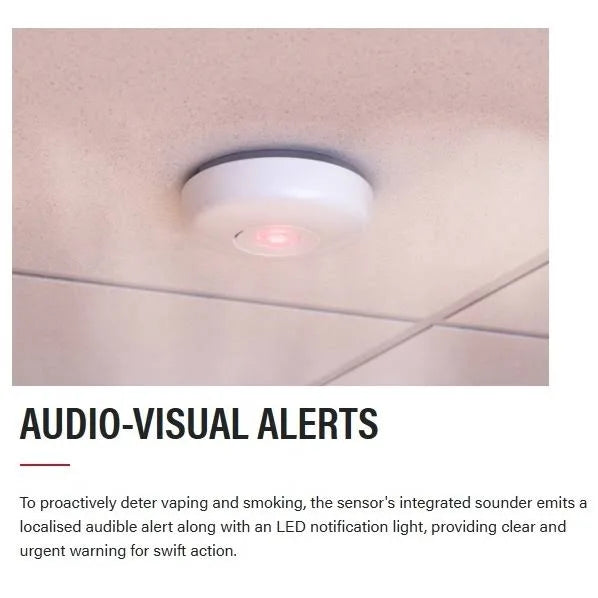

- Built-in buzzer with selectable duration (disable / 10 sec. / 30 sec. / continuous)

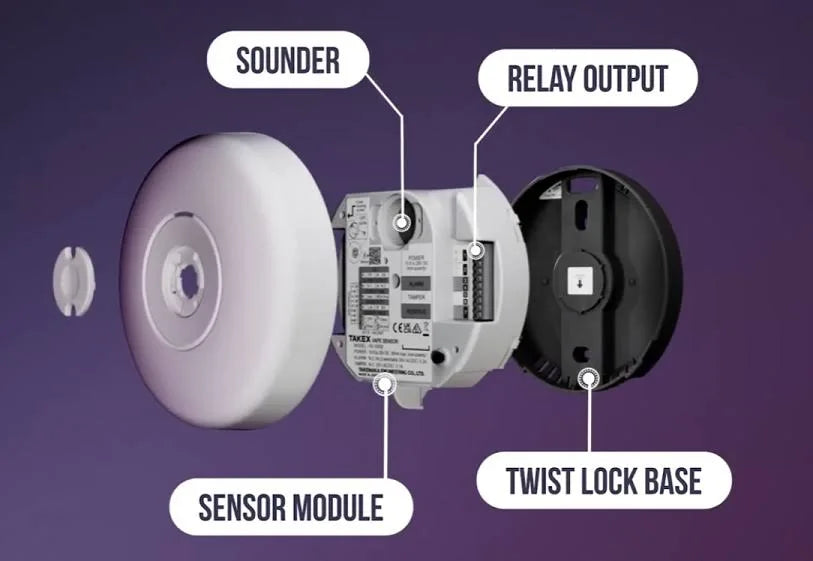

- Tamper-resistant cover with dry contact output

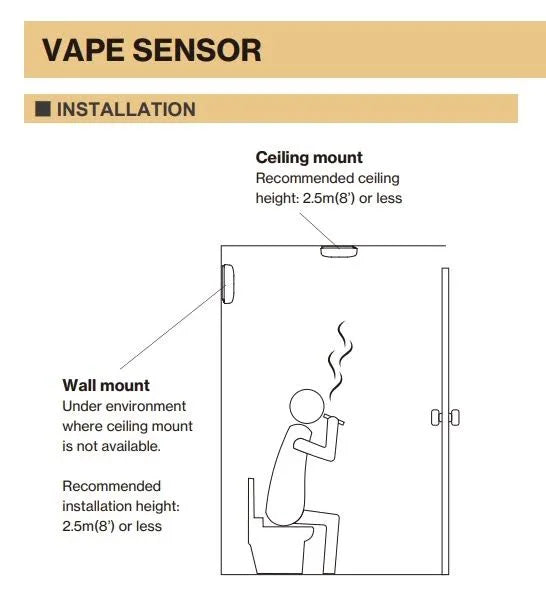

- Ceiling or wall mount up to 2.5m height
- Screwless terminal wiring for fast installation
- 10.5V to 28V DC supply (non-polarity)
Specifications
| Product Name | Vape Sensor |
| Model | VS-1000E |
| Supply Voltage | 10.5V to 28V DC (non-polarity) |
| Current Consumption | 85mA max. |
| Alarm Output | Contact: Solid state relay (N.C./N.O. selectable) Operation: One shot (approx. 2 sec.) / Detecting time Capacity: 30V (AC/DC) 0.2A (resistive load) |
| Tamper Output | Contact: Dry contact relay (N.C.) Operation: Activated when cover is detached (continuous output) Capacity: 30V (AC/DC) 0.1A (resistive load) |
| Alarm LED (Red) | Warm-up: Blinking Detection: Lights on (LED ON/OFF selectable) Error: Fast blinking |
| Buzzer | Sound at detecting (disable / 10 sec. / 30 sec. / continuous) |
| Wiring Connection | Screwless terminal |
| Ambient Temperature | 0°C to +50°C (+32°F to +122°F) without condensation / frozen |
| Mounting Position | Indoor (Ceiling / Wall) |
| Weight | 210g (7.4oz) |
| Appearance | Resin (Body: White / Base: Black) |
Specifications and design are subject to change without prior notice.
